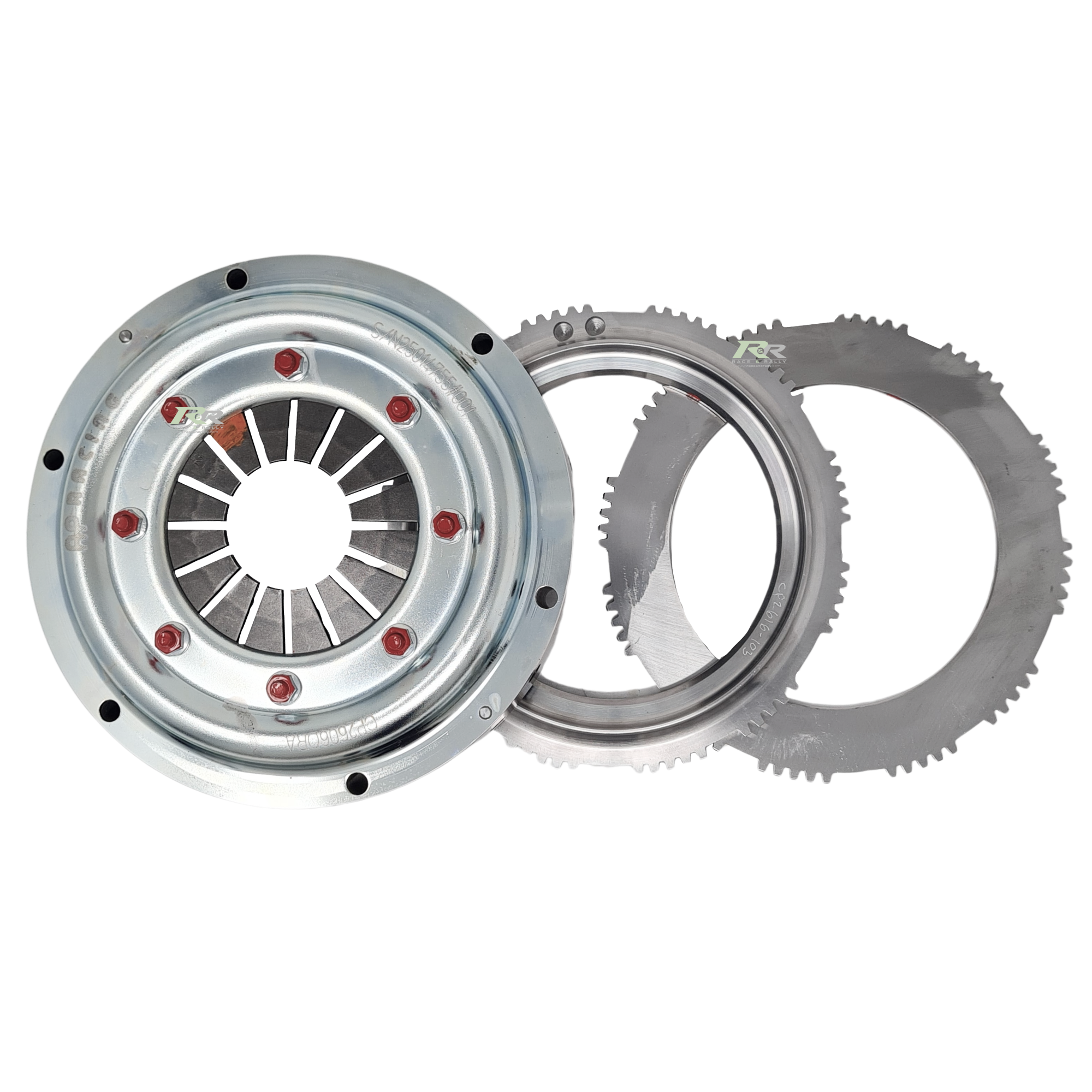

CP2606ORA - Ø184mm Twin Plate A-Ring Cerametallic Paddle Clutch

Typical Applications:

• Race
• Hillclimb
• Rally
• Historic's

Features:

• Twin plate
• Push Type
• Stepped Flywheel Fixing
  • Inner diameter location.
• 6 bolt, Steel or Aluminium cover options available

• Suitable for engine speeds of 14,000 rpm

• Individually tested
  • match machined, balanced and clutch load recorded.
• Mounting studs available, CP4702
  • RandR M8x1.25 Mounting Kits also available
  • Stepped Flywheel - RR4702-451M
• Organic Driven plate option available
  • CP5386 Family

Part Numbers:

• Steel Cover:
  • CP2606ORA

Technical Specifications:

Torque Capacity - Nm (lbs/ft)	CP2606ORA - 421 (310)
Release Load - Max Peak New - daN	CP2606ORA - 240
Release Load - Max Peak Worn - daN	CP2606ORA - 330
Set-up Height - New	CP2606ORA - 39.80 / 37.02mm
Set-up Height - Max Worn	CP2606ORA - 42.32mm
Clutch "Wear in"	0.75mm
Weight (Excluding Drive Plates)	Steel Cover - 3.40 Kg
Assembly Inertia (Excluding Drive Plates)	0.02096 Kg m²
Recommended Release Bearing	Outer race rotates: CP3457-2 or -10 Inner race rotates: CP3457-6
Drive Plate Options	New = 7.11mm  Worn = 6.68mm
	3-Paddle Bonded - CP8300 Riveted - CP2606 4-Paddle Bonded - CP8400 Riveted - CP3219 6-Paddle Bonded - CP8600 Riveted - CP4946
Spare Parts:
Main Pressure Plate	CP2616-103
Intermediate Pressure Plate:	CP2613-103
A-Ring Assembly	CP2606-125
