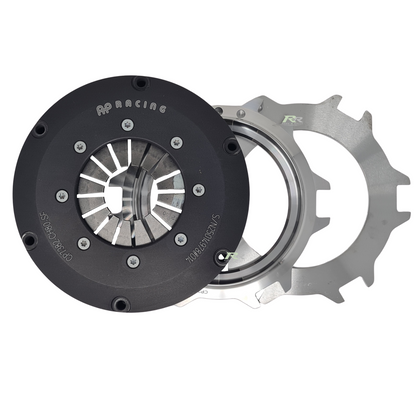

CP7382 - Ø184mm Twin Plate - Cerametallic Paddle Clutch

CP7382 - Ø184mm Twin Plate - Cerametallic Paddle Clutch

CP7382-NH80-SF

€805.14 €990.32
Sale Sold out
Flywheel Fixing
Torque Capacity
Material
View Docs
View full details

CP7382 - Ø184mm Twin Plate Cerametallic Paddle Clutch

Typical Applications:

  • Race
  • Hillclimb
  • Rally

Features:

  • Twin plate
  • Push Type
  • Stepped Flywheel Fixing
    • Inner diameter location.
  • 6 bolt, one piece cover and lugs
    • machined from aluminium alloy. Allows dust and debris to escape.
  • Black hard anodised
  • Stainless steel wear plates fitted
  • Suitable for engine speeds of 10,000 rpm
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702
    • RandR M8x1.25 Mounting Kits also available
    • Stepped Flywheel - RR4702-500M
  • Organic Driven plate option available
    • CP5386 Family

Part Numbers:

  • Stepped Flywheel:
    • CP7382-CH80-SF
    • CP7382-OH80-SF
    • CP7382-NH80-SF

Technical Specifications:

 Torque Capacity - Nm (lbs/ft)
  • CP7382-CH80-SF - 636 (469)
  • CP7382-OH80-SF - 421 (310)
  • CP7382-NH80-SF - 263 (194)
Release Load - Max Peak New - daN
  • CP7382-CH80-SF - 350
  • CP7382-OH80-SF - 240
  • CP7382-NH80-SF - 160
Release Load - Max Peak Worn - daN
  • CP7382-CH80-SF - 440
  • CP7382-OH80-SF - 330
  • CP7382-NH80-SF - 220
Set-up Height - New
  • CP7382-CH80-SF - 37.01 / 34.64mm
  • CP7382-OH80-SF - 37.66 / 35.29mm
  • CP7382-NH80-SF - 36.92 / 34.55mm
Set-up Height - Max Worn
  • CP7382-CH80-SF - 39.68mm
  • CP7382-OH80-SF - 40.34mm
  • CP7382-NH80-SF - 39.59mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates) 2.80 Kg
Assembly Inertia (Excluding Drive Plates) 0.0182 Kg m²
Recommended Release Bearing
Drive Plate Options
  • New = 7.11mm
  • Worn = 6.68mm

Spare Parts:
Main Pressure Plate CP3021-102
Intermediate Pressure Plate: CP3592-106
Wear Clips CP4112-102 (x6)



Applications

 AP Racing Applications
CP7382-OH80-SF
  • Ford Fiesta R2T19 - PT12110002A
  • Ford Fiesta Rally4 - PT12110002A
  • Ford Fiesta Rally3 - PT12110002A
  • Ford Escort MKII
CP7382-CH80-SF
  • MATs BMW M3 E30
Brand AP Racing
Option SKU Barcode
Stepped Flywheel / 263 Nm (194 lbft) / Aluminium CP7382-NH80-SF
Stepped Flywheel / 421 Nm (310 lbft) / Aluminium CP7382-OH80-SF
Stepped Flywheel / 626 Nm (469 lbft) / Aluminium CP7382-CH80-SF
