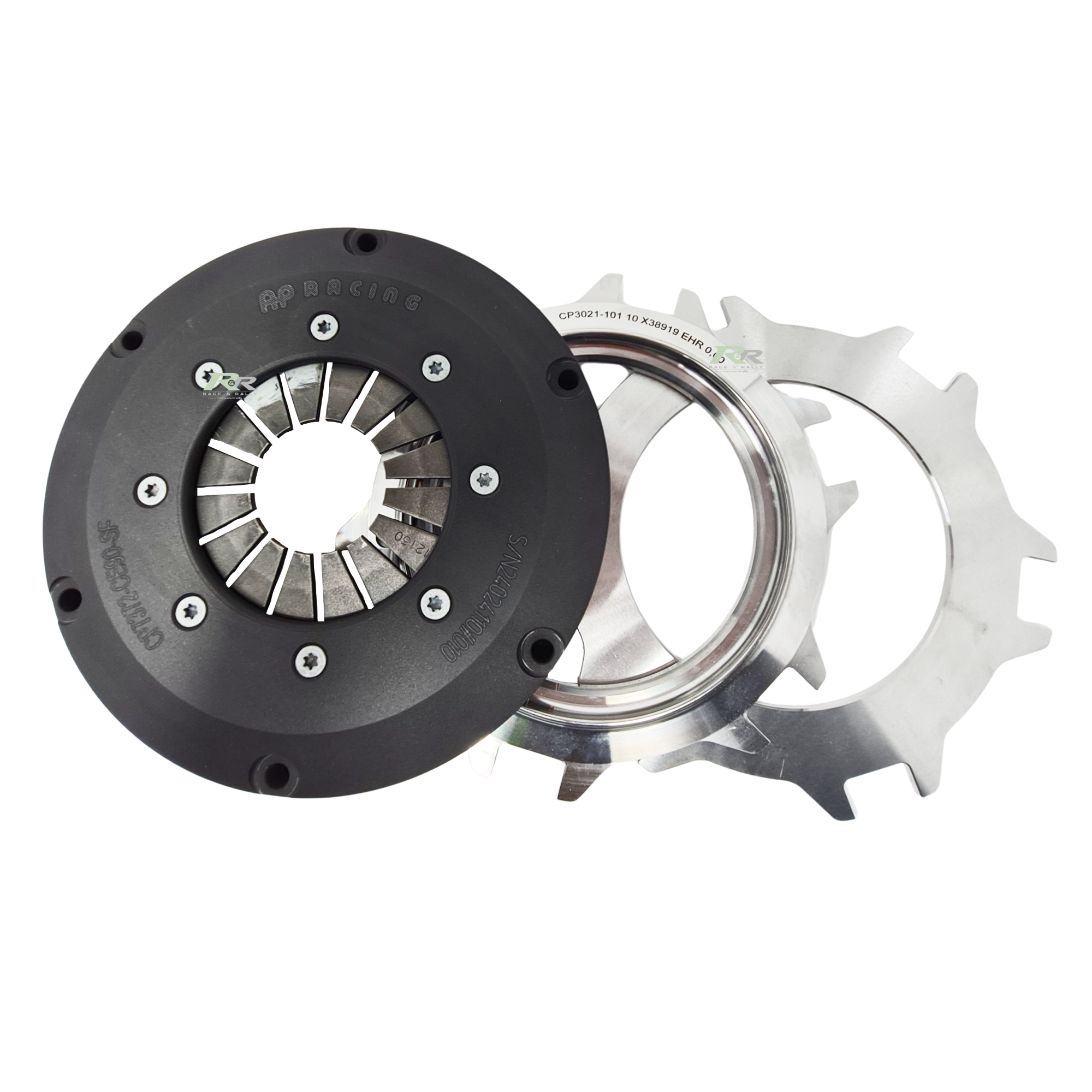

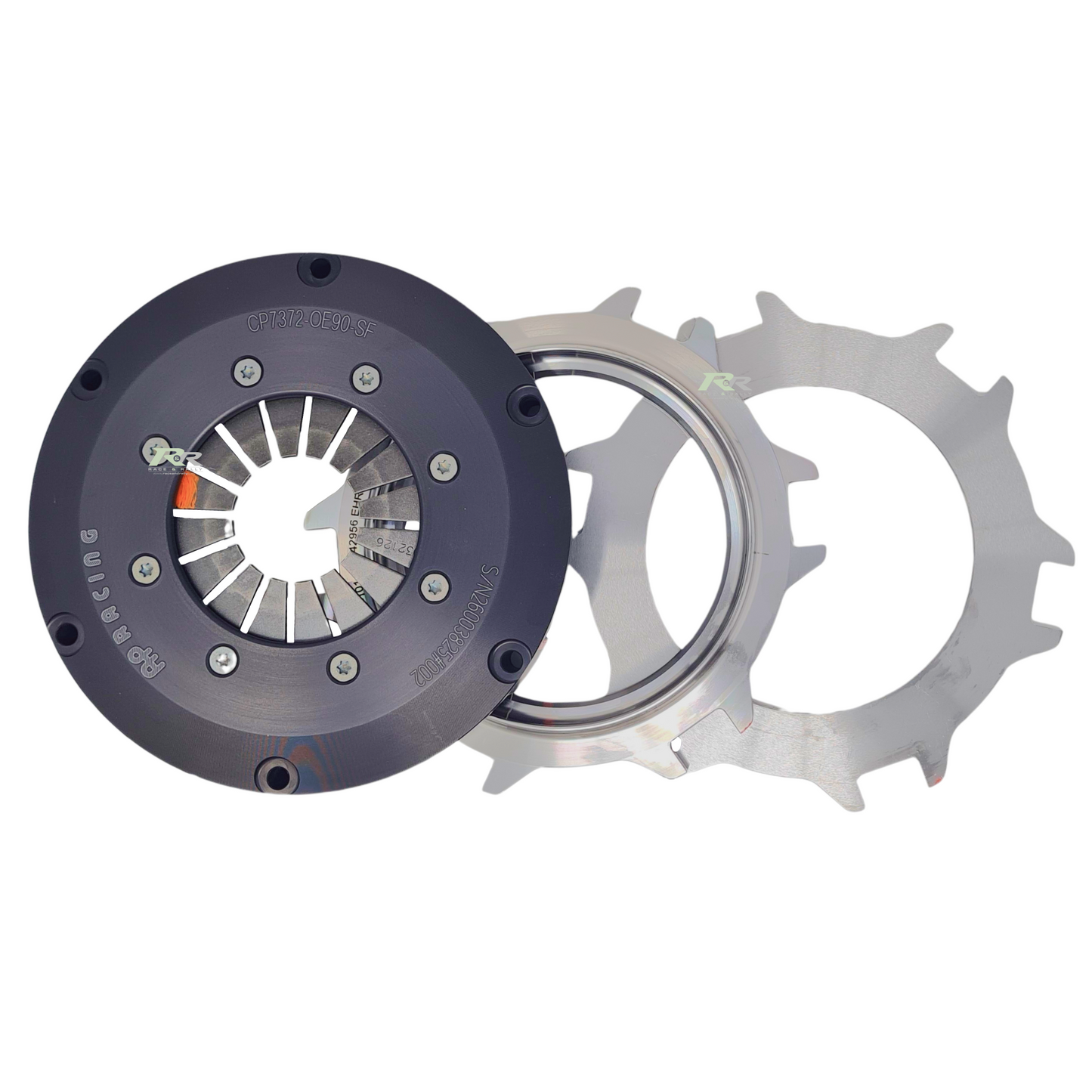

CP7372 - Ø184mm Twin Plate - Sintered Paddle Clutch

CP7372 - Ø184mm Twin Plate - Sintered Paddle Clutch

CP7372-NE90-SF

€717.54 €882.57
Sale Sold out
Torque Capacity

View full details

CP7372 - Ø184mm Twin Plate Sintered Paddle Clutch

Typical Applications:

  • Race

Features:

  • Push Type
  • Stepped Flywheel Fixing
    • Inner diameter location.
  • 6 bolt, one piece cover and lugs
    • machined from aluminium alloy. Allows dust and debris to escape.
  • Choice of Three (3) driven plate options
    • For high torque applications use CP4429 sintered d/plate.
  • Black hard anodised
  • Stainless steel wear plates fitted
  • Low wear rate
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702.
    • Supercedes CP3912 clutch family.

Part Numbers:

  • CP7372-CE90-SF
  • CP7372-NE90-SF
  • CP7372-OE90-SF

Technical Specifications:

 Torque Capacity (Nm (lbs/ft)
  • CP7372-NE90-SF - 327 (241)
  • CP7372-OE90-SF - 532 (392)
  • CP7372-CE90-SF - 848 (625)
Release Load - Max Peak New - daN
  • CP7372-NE90-SF - 160
  • CP7372-OE90-SF - 240
  • CP7372-CE90-SF - 350
Release Load - Max Peak Worn - daN
  • CP7372-NE90-SF - 220
  • CP7372-OE90-SF - 330
  • CP7372-CE90-SF - 440
Set-up Height - New
  • CP7372-NE90-SF - 28.73 / 25.97mm
  • CP7372-OE90-SF - 29.55 / 26.77mm
  • CP7372-CE90-SF - 28.76 / 26.00mm
Set-up Height - Max Worn
  • CP7372-NE90-SF - 31.95mm
  • CP7372-OE90-SF - 32.76mm
  • CP7372-CE90-SF - 31.97mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates) 2.75 Kg
Assembly Intertia (Excluding Drive Plates) 0.0177 Kgm2
Release Bearing
  • Outer race rotates: CP3457-2 or -10
  • Inner race rotates: CP3457-6
Drive Plate Options
  • New = 2.63mm (Nom.)
  • Worn = 2.25mm (Min.)

  • Back to back
    • CP2012
  • Nested Type
    • CP2567
  • Gear Driven Type
    • CP3822
    • CP2822
  • Single Back to Back
    • CP4429



Spare Parts:

 Main Pressure Plate CP3021-101
Intermediate Pressure Plate CP3592-106
Wear Clips CP3912-102 (x6)
Brand AP Racing
Option SKU Barcode
327 Nm (241 lbft) CP7372-NE90-SF
532 Nm (392 lbft) CP7372-OE90-SF
848 Nm (625 lbft) CP7372-CE90-SF
