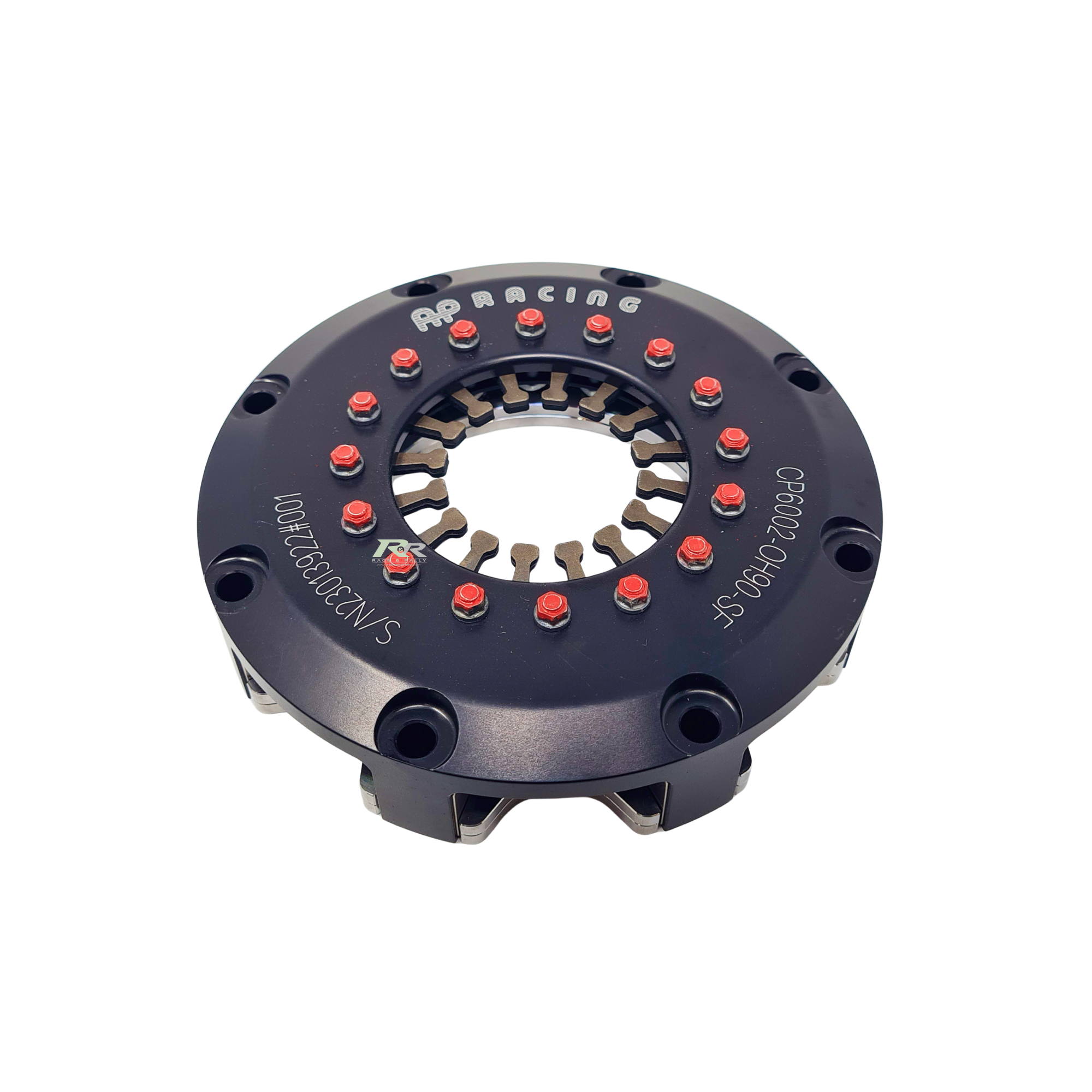

CP6002 - Ø140mm Twin Plate - Sintered Paddle Clutch

SKU:CP6002-BH90-SF

€1031.89 €1269.22

Sale Sold out

Ø140mm Twin Plate
Sintered Paddle
Torque Range 218 - 420 Nm
Stepped Flywheel Fixing
[Drive Plates Sold Separately]

Flywheel Fixing

Torque Capacity

Material

Quantity

Out of stock

View full details

CP6002 - Ø184mm Twin Plate Sintered Paddle Clutch

Typical Applications:

Lightweight Single Seater

Features:

Twin plate
Push Type
Stepped Flywheel Fixing
- Inner diameter location.
8 bolt, one piece cover and lugs
- machined from biller. Provides rigidity and strength and cooler running, allows dust and debris to escape.
Black hard anodised
Stainless steel wear plates fitted
Low wear rate
Individually tested
- match machined, balanced and clutch load recorded.
Mounting studs available, CP4702

Part Numbers:

Stepped Flywheel:
- CP6002-BH90-SF
- CP6002-OH90-SF
- CP6002-CH90-SF

Technical Specifications:

Torque Capacity - Nm (lbs/ft)	CP6002-BH90-SF - 216 (161) CP6002-OH90-SF - 314 (232) CP6002-CH90-SF - 420 (310)
Release Load - Max Peak New - daN	CP 6002-BH90-SF - 210 CP6002-OH90-SF - 375 CP6002-CH90-SF - 420
Release Load - Max Peak Worn - daN	CP6002-BH90-SF - 195 CP6002-OH90-SF - 310 CP6002-CH90-SF - 360
Set-up Height - New	CP6002-BH90-SF - 26.80mm CP6002-OH90-SF - 28.57mm CP6002-CH90-SF - 28.83mm
Set-up Height - Max Worn	CP6002-BH90-SF - 29.56mm CP6002-OH90-SF - 31.32mm CP6002-CH90-SF - 31.58mm
Clutch "Wear in"	0.75mm
Weight (Excluding Drive Plates)	2.00 Kg
Assembly Inertia (Including Drive Plates)	0.0086 Kg m²
Recommended Release Bearing	Outer race rotates: CP3457-1 or -9 Inner race rotates: CP3457-11
Drive Plate Options	New = 2.63mm Worn = 2.25mm
	Back-to-back CP3414 Back-to-back with Extended Nose CP3407

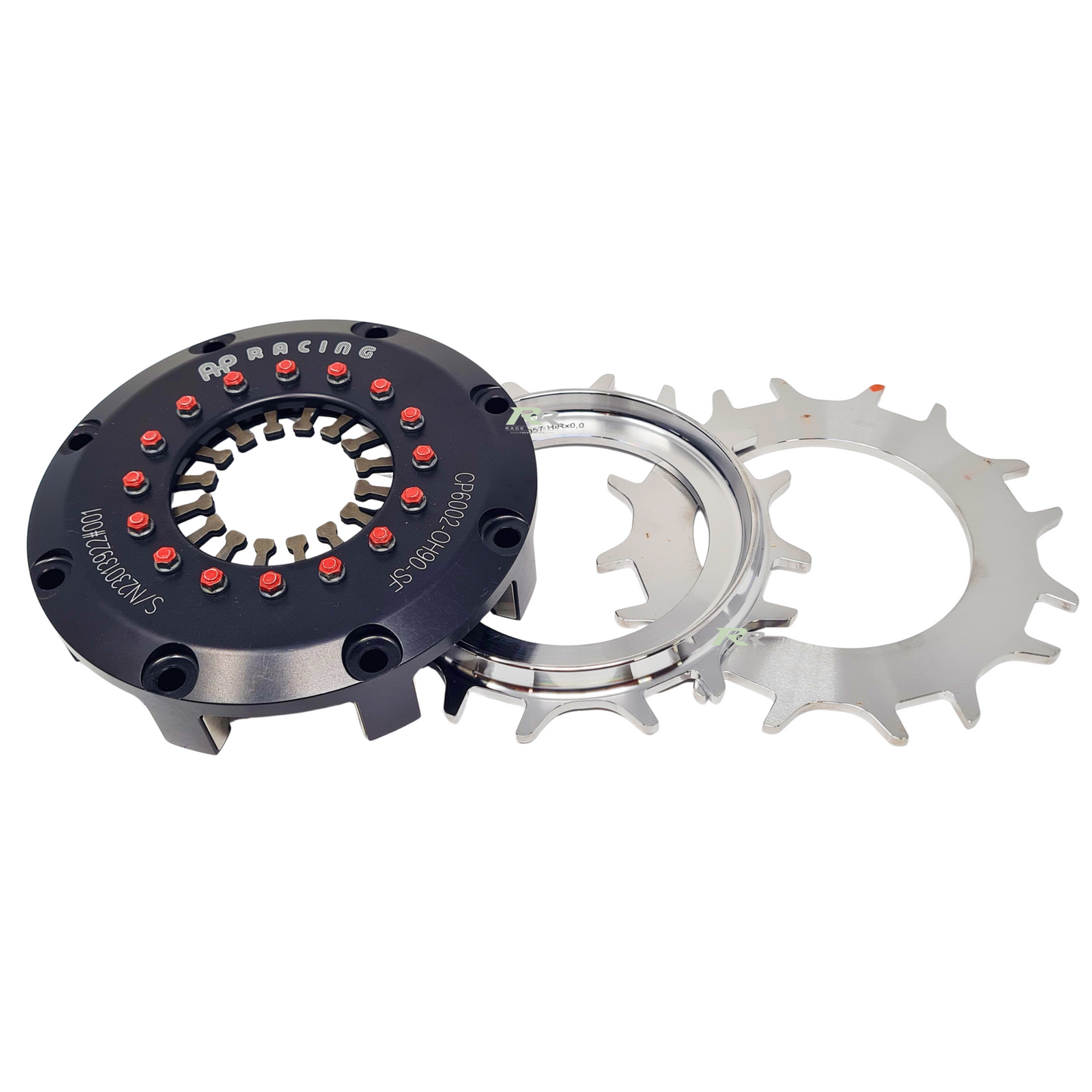

Spare Parts:
Main Pressure Plate	CP4124-103
Intermediate Pressure Plate:	CP4124-102
Wear Clips	CP6002-102 (x8)

CP6002 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Stepped Flywheel / 218 Nm (161 lb/ft) / Aluminium	CP6002-BH90-SF
Stepped Flywheel / 314 Nm (232 lb/ft) / Aluminium	CP6002-OH90-SF
Stepped Flywheel / 420 Nm (310 lb/ft) / Aluminium	CP6002-CH90-SF
