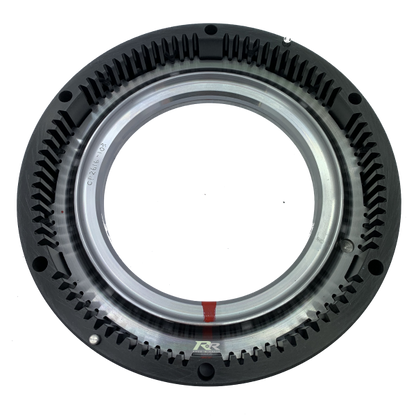

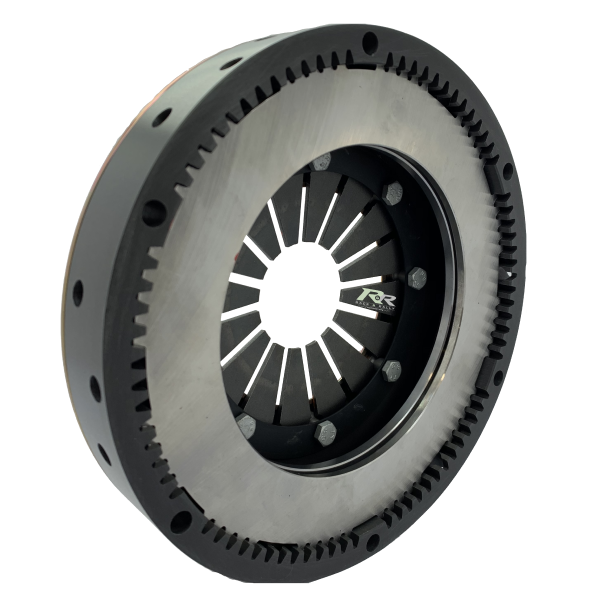

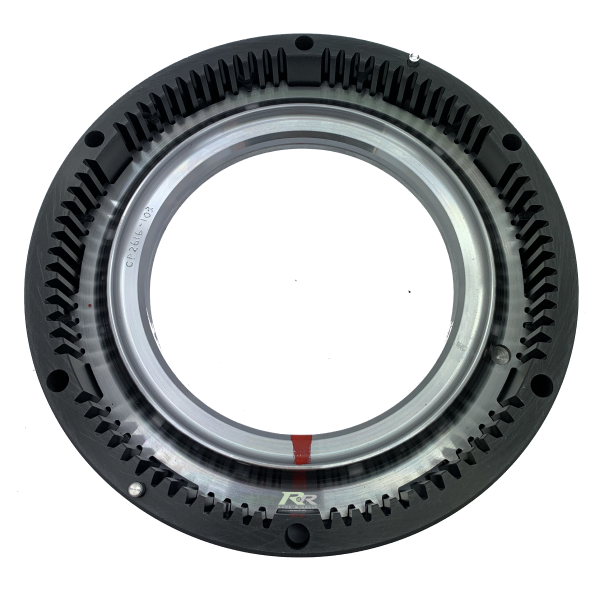

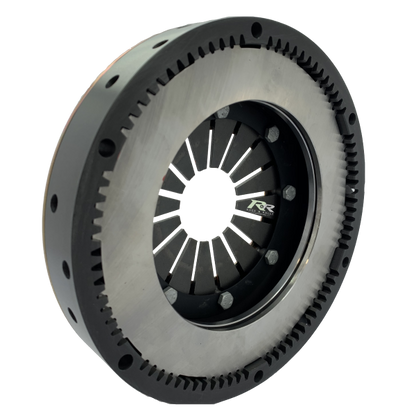

  • CP2606-Rear
  • CP2606 - Ø184mm Twin Plate - A-Ring Cerametallic Paddle Clutch - Race and Rally
1 4

CP2606 - Ø184mm Twin Plate - A-Ring Cerametallic Paddle Clutch

CP2606 - Ø184mm Twin Plate - A-Ring Cerametallic Paddle Clutch

CP2606GRN

€817.41 €1005.41
Sale Sold out
Flywheel Fixing
Torque Capacity
Material
View Docs
View full details

CP2606 - Ø184mm Twin Plate A-Ring Cerametallic Paddle Clutch

Typical Applications:

  • Race
  • Hillclimb
  • Rally
  • Historic's

Features:

  • Twin plate
  • Push Type
  • Stepped Flywheel Fixing
    • Inner diameter location.
  • 6 bolt, Steel or Aluminium cover options available
  • Suitable for engine speeds of 14,000 rpm
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702
    • RandR M8x1.25 Mounting Kits also available
    • Stepped Flywheel - RR4702-451M
  • Organic Driven plate option available
    • CP5386 Family

Part Numbers:

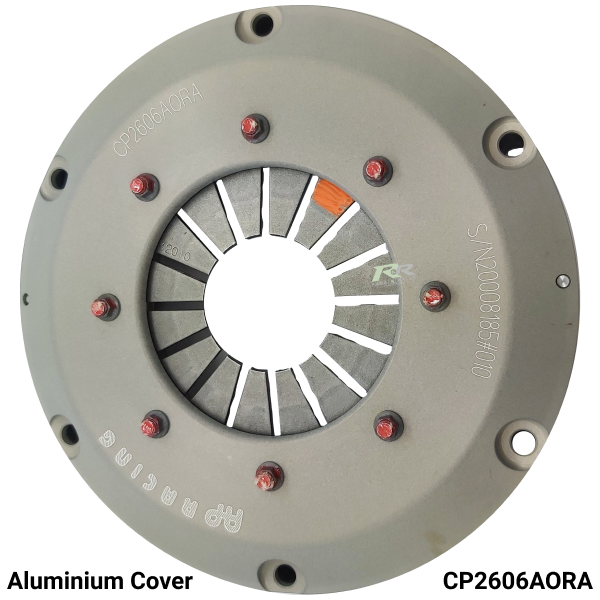

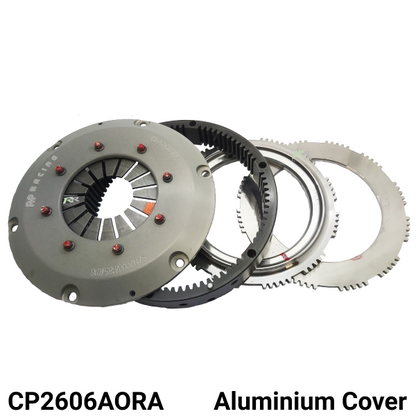

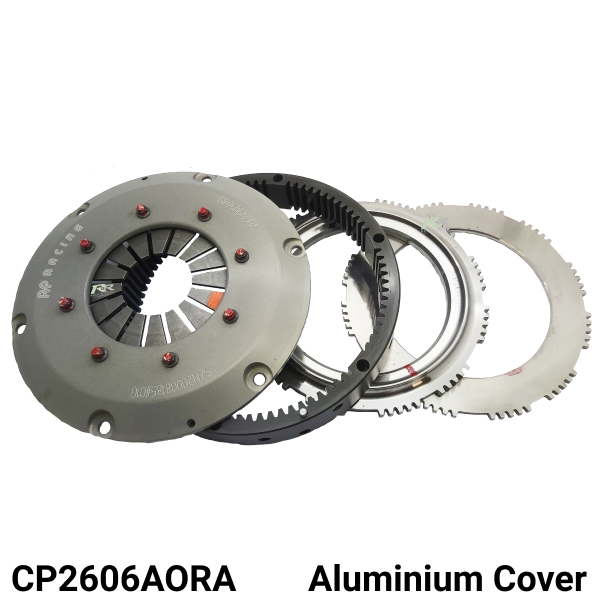

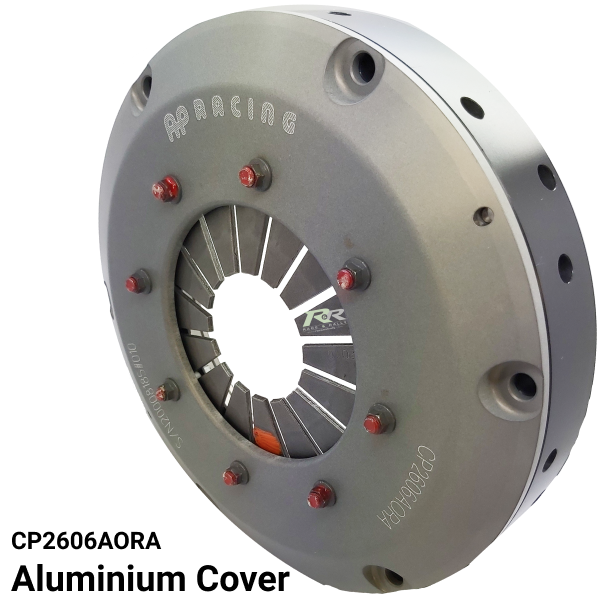

  • Aluminium Alloy Cover:
    • CP2606ACRV
    • CP2606AORA
    • CP2606AGRN

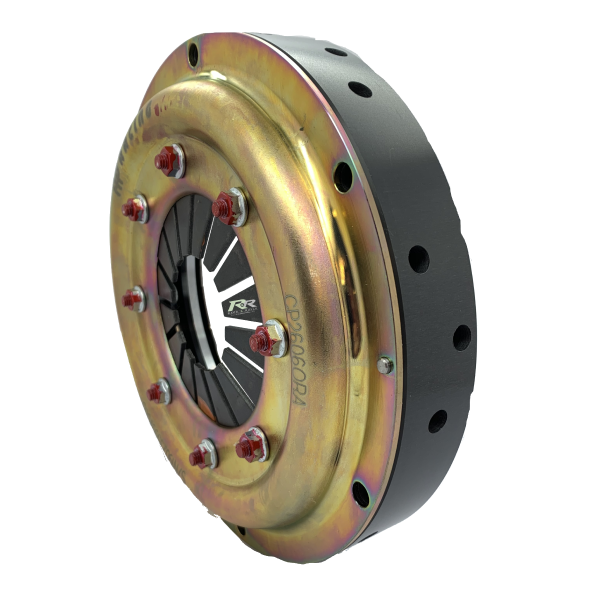

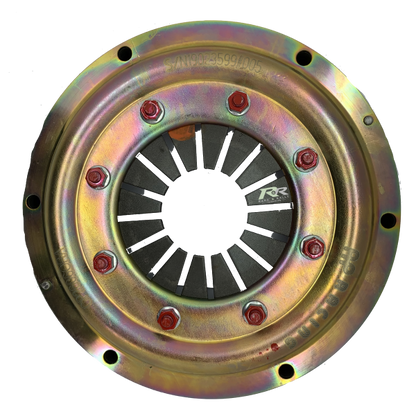

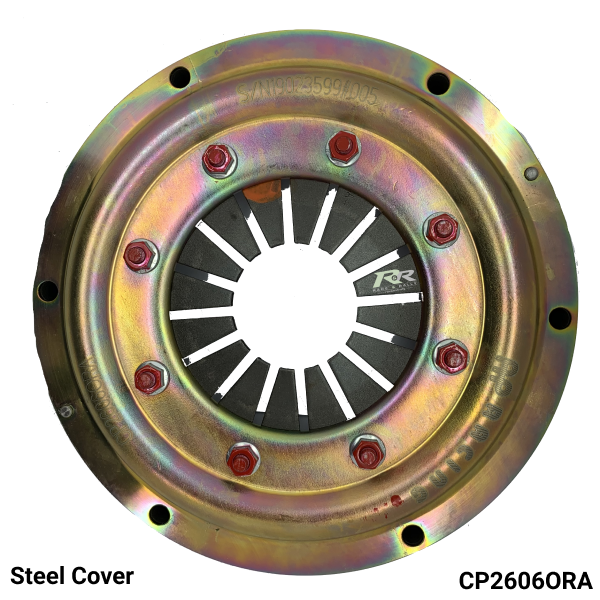

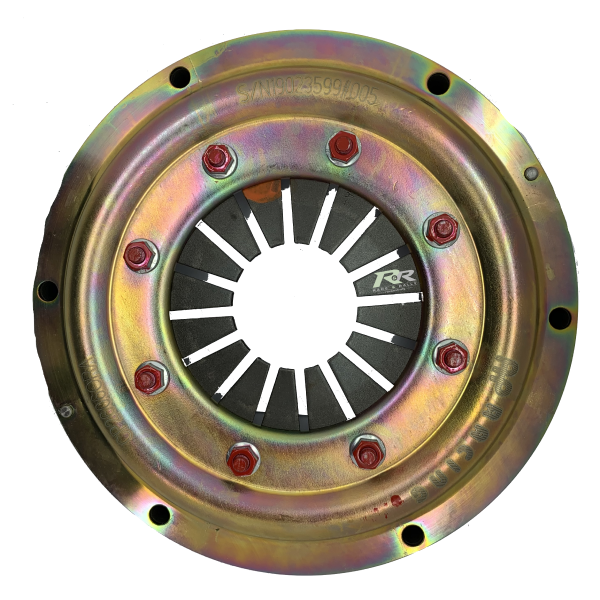

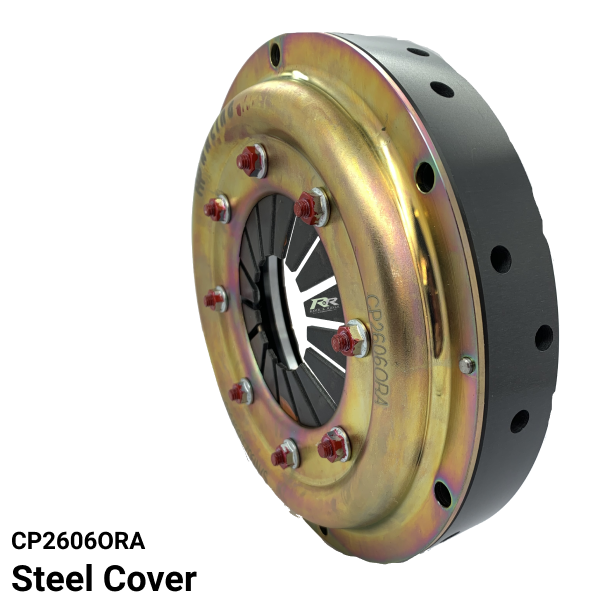

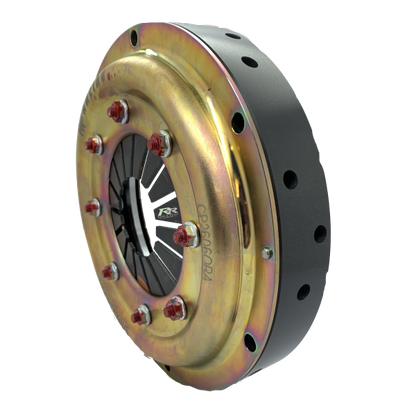

  • Steel Cover:
    • CP2606CRV
    • CP2606GRN
    • CP2606ORA

Technical Specifications:

 Torque Capacity - Nm (lbs/ft)
  • CP2606(A)CRV - 636 (469)
  • CP2606(A)ORA - 421 (310)
  • CP2606(A)GRN - 263 (194)
Release Load - Max Peak New - daN
  • CP2606(A)CRV - 350
  • CP2606(A)ORA - 240
  • CP2606(A)GRN - 160
Release Load - Max Peak Worn - daN
  • CP2606(A)CRV - 440
  • CP2606(A)ORA - 330
  • CP2606(A)GRN - 220
Set-up Height - New
  • CP2606(A)CRV - 39.57 / 36.81mm
  • CP2606(A)ORA - 39.80 / 37.02mm
  • CP2606(A)GRN - 39.00 / 36.23mm
Set-up Height - Max Worn
  • CP2606(A)CRV - 42.09mm
  • CP2606(A)ORA - 42.32mm
  • CP2606(A)GRN - 41.52mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates)
  • Aluminium Cover - 3.15 Kg
  • Steel Cover - 3.40 Kg
Assembly Inertia (Excluding Drive Plates) 0.02096 Kg m²
Recommended Release Bearing
Drive Plate Options
  • New = 7.11mm
  • Worn = 6.68mm

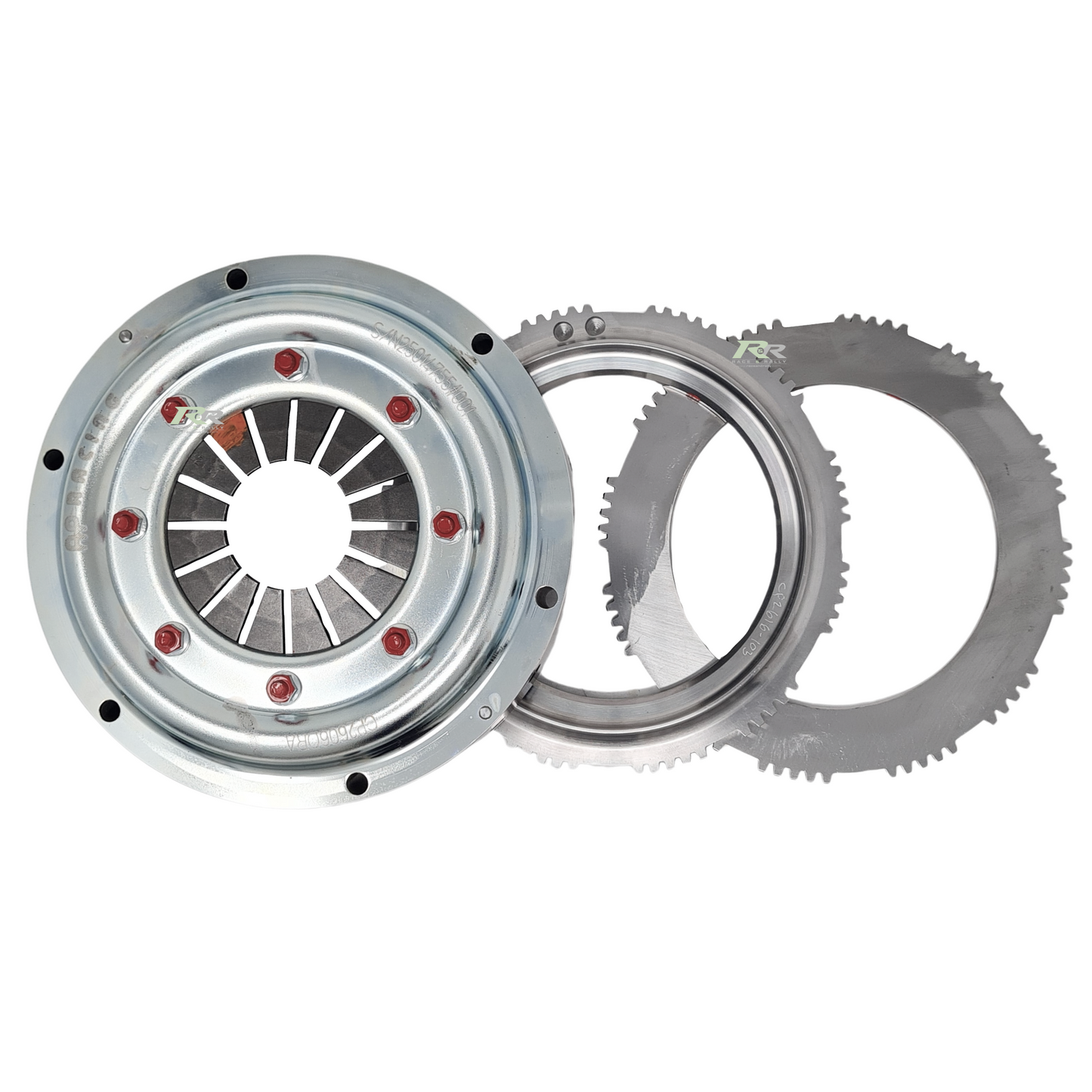

Spare Parts:
Main Pressure Plate CP2616-103
Intermediate Pressure Plate: CP2613-103
A-Ring Assembly CP2606-125



Applications

 AP Racing Applications
CP2606ORA
  • Ford Escort MKI
  • Ford Escort MKII
  • BDA Engines
  • Historic Vehicles
Brand AP Racing
Option SKU Barcode
Stepped Flywheel / 263 Nm (194 lbft) / Steel CP2606GRN
Stepped Flywheel / 421 Nm (310 lbft) / Steel CP2606ORA
Stepped Flywheel / 636 Nm (469 lbft) / Steel CP2606CRV
