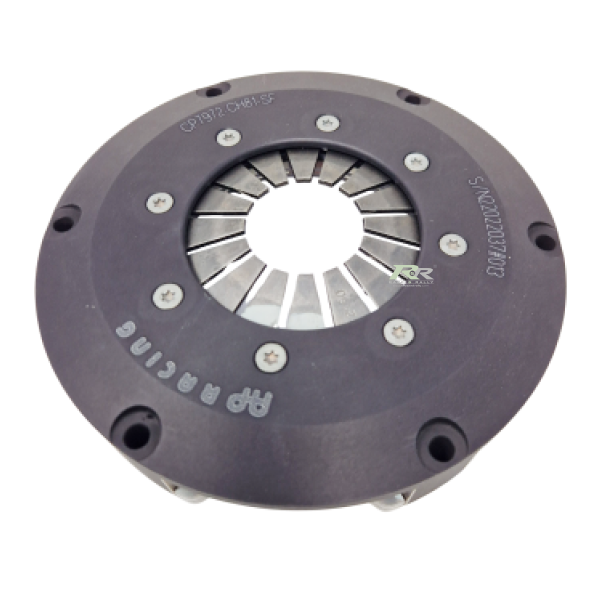

CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle - Stepped Flywheel - 636Nm Torque Capacity

CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle - Stepped Flywheel - 636Nm Torque Capacity

CP7972-CH81-SF

€1029.84 €1266.70
Sale Sold out
Flywheel Fixing
Torque Capacity
View Docs

Out of stock, contact for leadtime

View full details

CP7972-CH81-SF - Ø184mm Low Height Twin Plate Cerametallic Paddle Clutch

Features:

  • Twin plate
  • Push Type
  • Low stack height
    • uses 6mm drive plates
  • Stepped or Flat Flywheel Fixing
  • 6 bolt, one piece cover and lugs
    • machined from aluminium alloy. Allows dust and debris to escape.
  • Black hard anodised
  • Stainless steel wear plates fitted
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702

Part Numbers:

  • Stepped Flywheel:
    • CP7972-CH81-SF

Technical Specifications:

 Torque Capacity - Nm (lbs/ft)
  • CP7972-CH81-SF - 636 (469)
Release Load - Max Peak New - daN
  • CP7972-CH81-SF - 350
Release Load - Max Peak Worn - daN
  • CP7972-CH81-SF - 440
Set-up Height - New
  • CP7972-CH81-SF - 33.49 / 30.95mm
Set-up Height - Max Worn
  • CP7972-CH81-SF - 36.08mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates) 2.65 Kg
Assembly Inertia (Excluding Drive Plates) 0.0165 Kg m²
Recommended Release Bearing
Drive Plate Options
  • New = 6.00mm
  • Worn = 5.63mm

Spare Parts:
Main Pressure Plate CP7972-105
Intermediate Pressure Plate: CP3592-106
Wear Clips


CP7972-103 (x6)



Applications

 AP Racing Applications
CP7972-CH81-SF
  • Skoda Fabia S2000 5JT141026A
Brand AP Racing
Option SKU Barcode
Stepped Fywheel / 636 Nm (469 lbft) CP7972-CH81-SF

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
