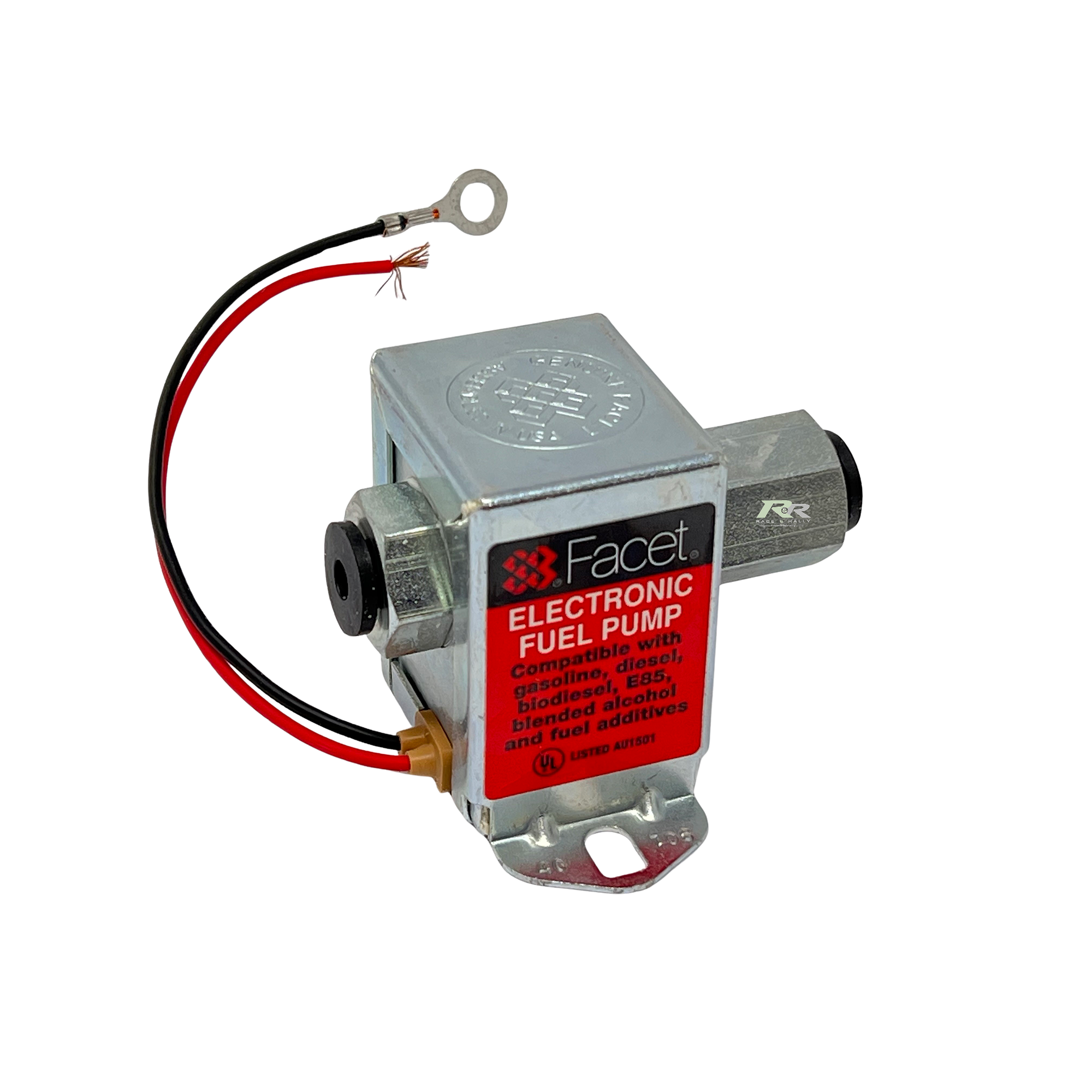

Facet 40106 Solid State Fuel Pump

• These solid-state technology electronic fuel pumps provide outputs up to 132.5 ltrs/hour and 0.68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a general dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburettor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Technical Specifications:

• Specification: Fast Road
• Pump: 40106
• Voltage: 12v
• Earth: Neg
• Pressure (PSI): 4.0 - 7.0
• Flow: US Gallons/Hr 32
• Dry Prime Height: 0.3 Metres
• Thread Size: 1/8th NPTF
• Average Run Time or MTBF: 6000 hrs
• Positive Shut-Off Valve: No
• Check Valve: No
• Operating Temperature:  -40º F to +180° F
• Legal Requirements: Certified & Complies With EEC 95/54 Requirements
• Length: 75mm
• Height: 60mm
• Weight: 0.5kg
• Please Note: The product in not suitable for use in the aircraft industry
• Application: Motorsport, Marine, Industrial

Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Cross Reference:

• PU-AC-060
• S226800
• XN655395
• AH65307
• 31-1818310
• HC Cargo - 070051
