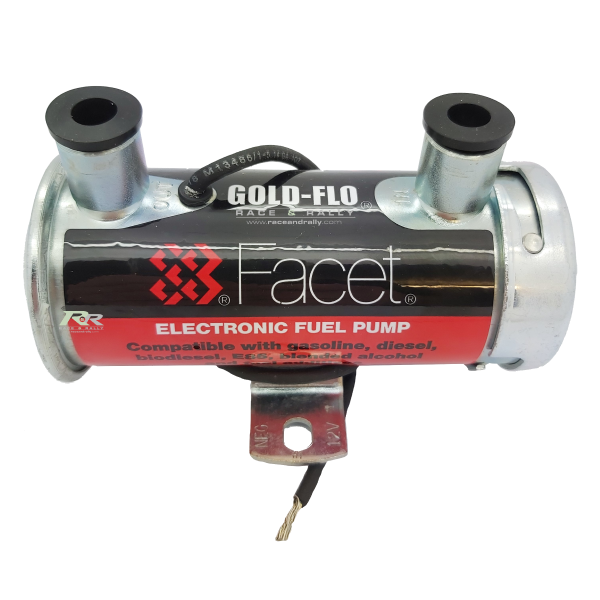

The Facet range of fuel pumps are designed for use with carburettor equipped engines. This latest variant is certified & complies With EEC 95/54 requirements and now has solid state technology to provide superior reliability over the older points triggered types. The Interrupter fuel pumps can be fitted anywhere in the fuel line and the 2 bolt bracket and single cable wiring make this pump a breeze to fit. The end cap of the pump is removable to reveal a filter which can be cleaned and replaced.

Technical Specification:

• Pump part number: 480532E
• Voltage: 12V DC
• Earth: Negative
• Pressure: 6.0 - 8.0 PSI
• Flow: 40 US Gallons/Hr
• Dry Prime Height: 0.6Metres
• Port Thread Sizes: 1/4 NPT
• Operating Temperature: -40ºF to +180°F
• Average Run Time or MTBF: 6000 hrs
• Length: 140mm
• Diameter: 54mm
• Weight: 0.7kg

Compatiable Accessories:

• Replacement Fuel Filters:
• FPA908R - 74M Element
• Mounting Kits:
• FPA905 - Rubber Mounts with Earth Strap

Fuel Union Installation:

When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Please Note:

Designed and manufactured to automotive specification and not recommended for the maintenance of flight
