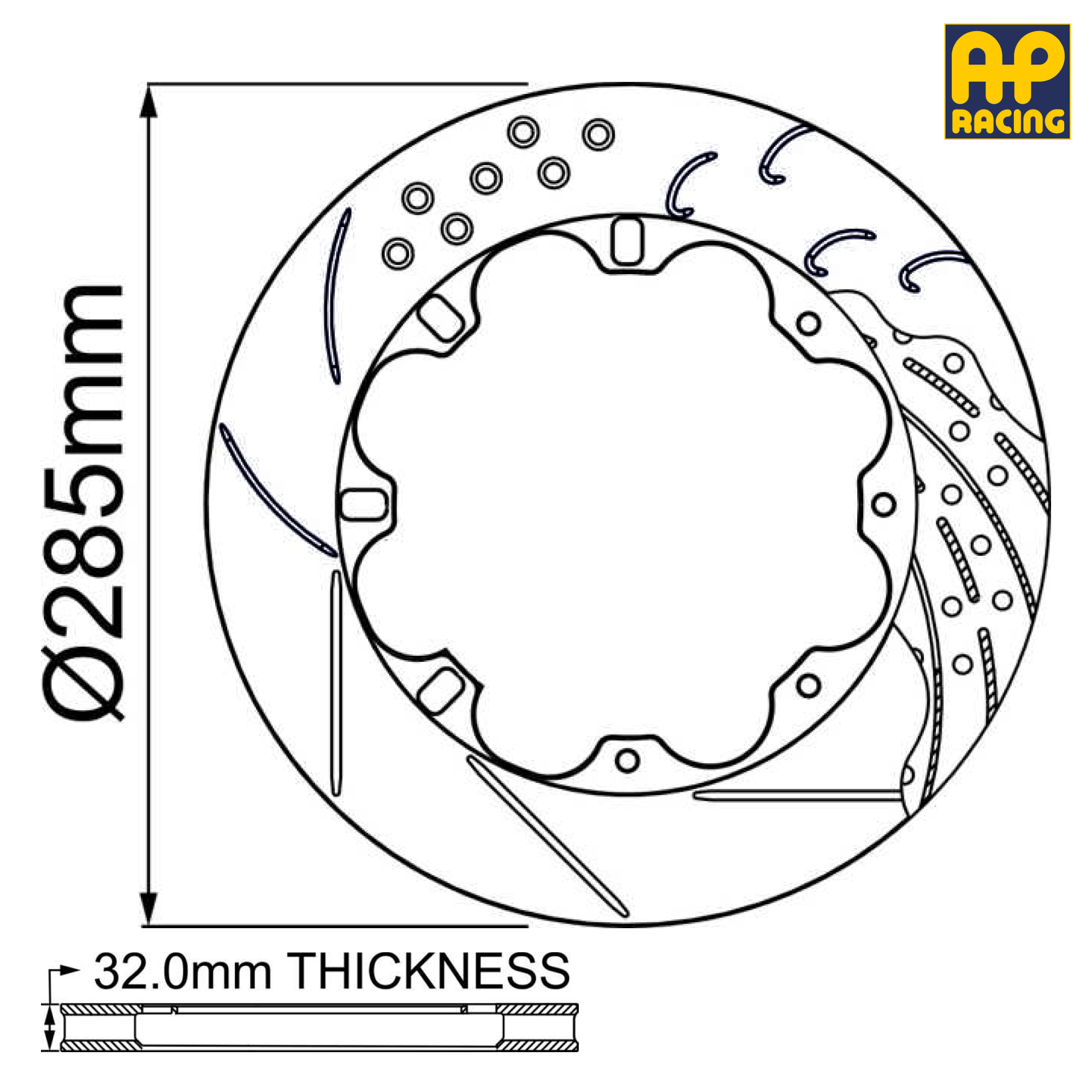

285mm x 32.0mm Brake Disc Dimensions

Outside Diameter	285mm
Thickness	32.0mm
Mounting P.C.D.	177.8mm
Mounting Type	Floating - 10 Bobbins
Eye Diameter	190.4mm
Spigot Diameter	mm
Inside Flange Diameter	150.0mm
Mounting Flange Thickness	5.02mm
Mounting Offset	mm
Max Pad Depth	D46.0
No. of Vanes	54
Air Gap	20.5
Weight	Kg
Face Types Available	GA - 'J' Hook Design
Disc Handing	Right-Hand Side Left-Hand Side
Notes
