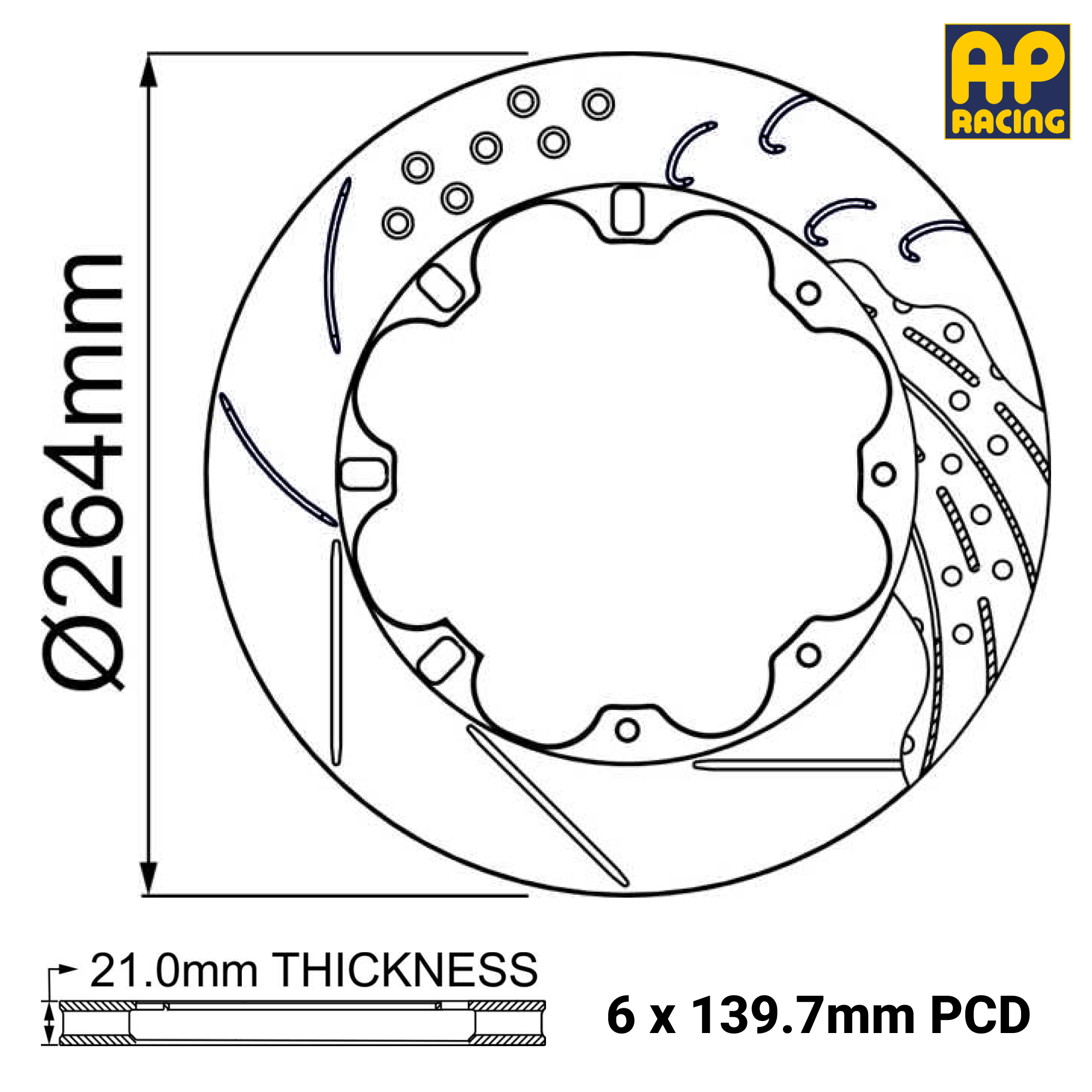

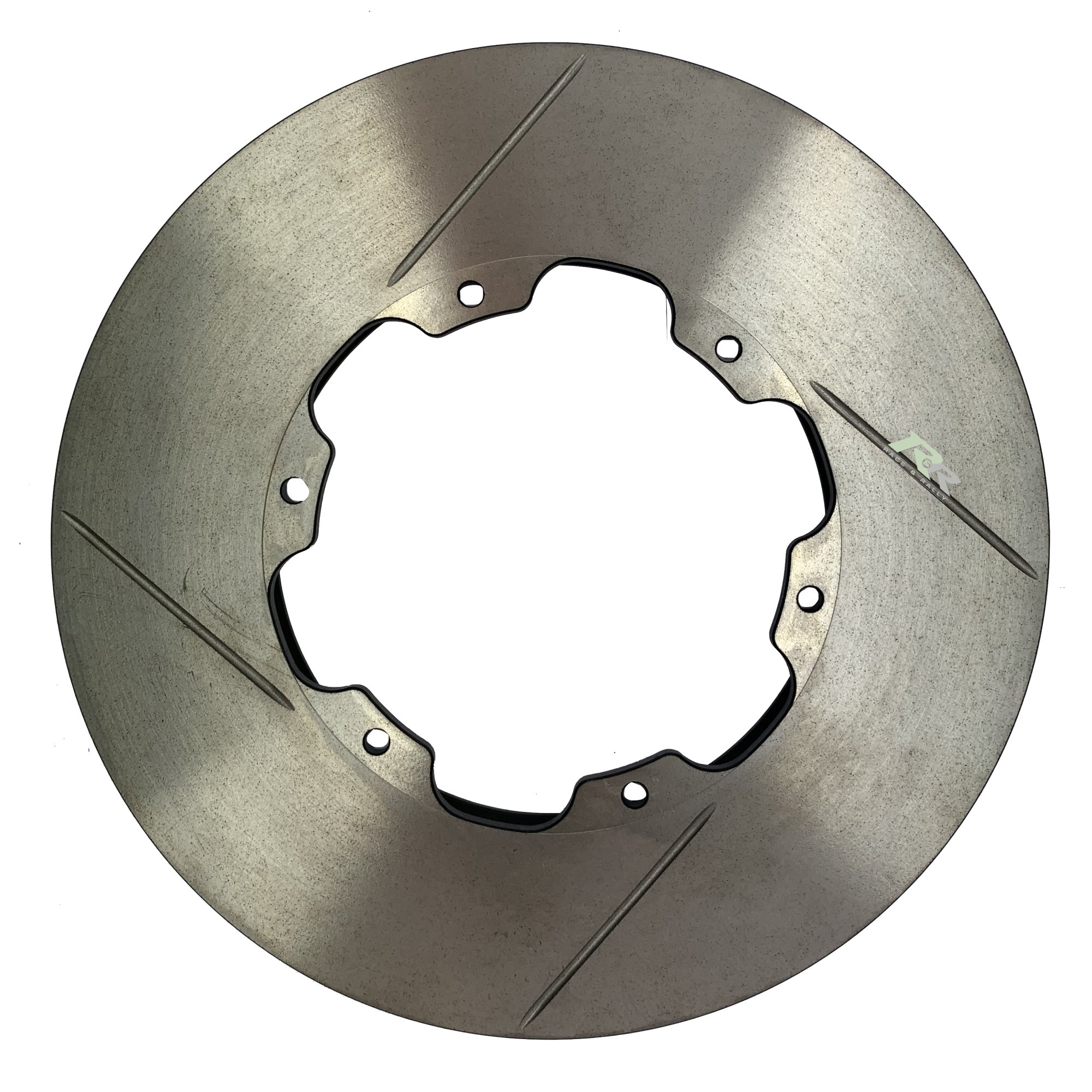

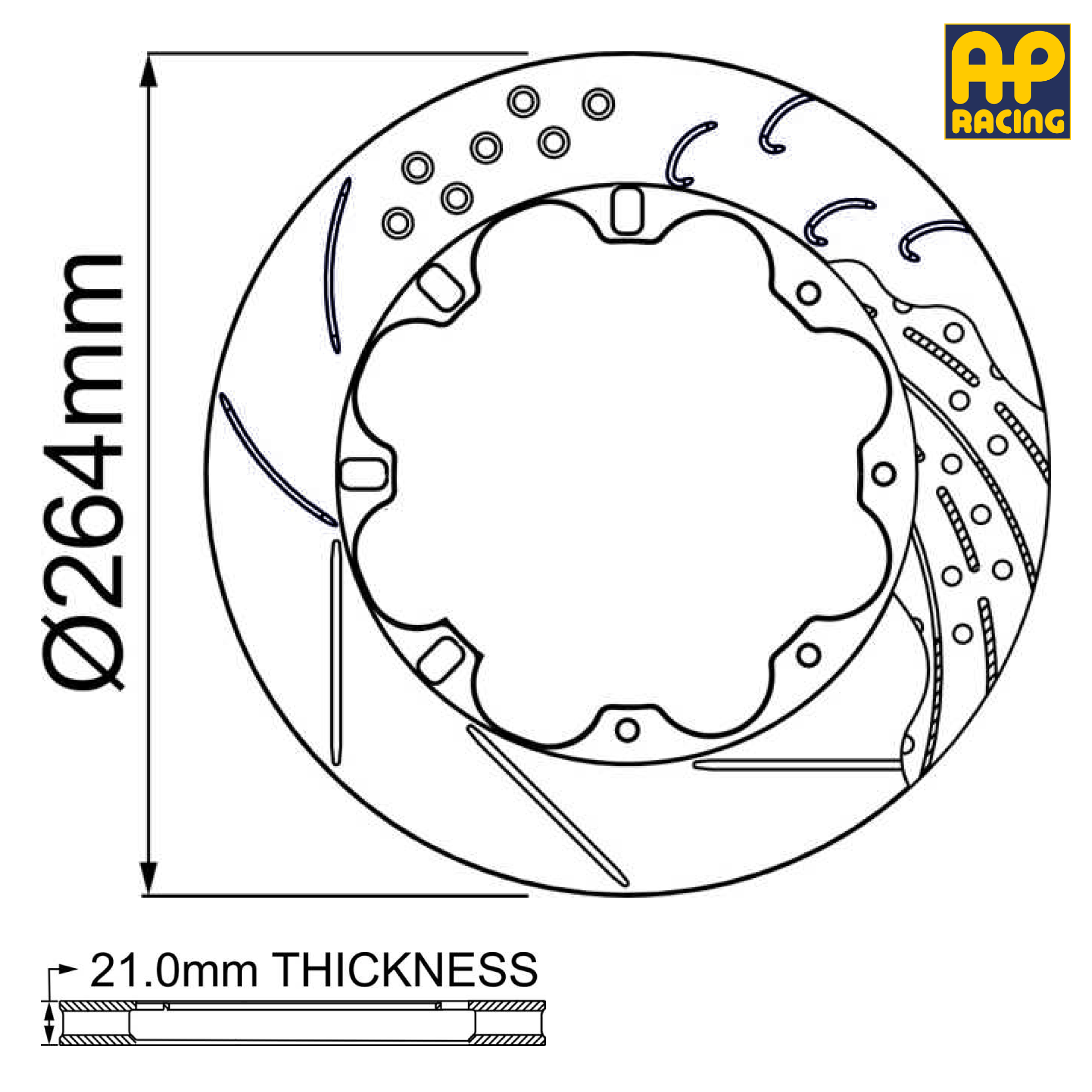

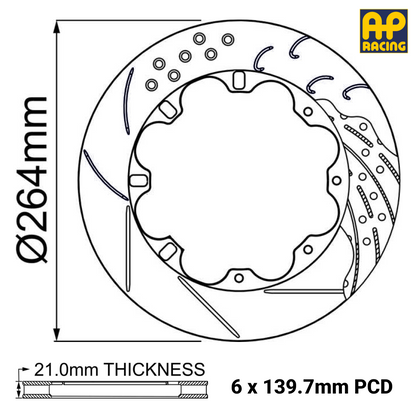

264mm x 21.0mm Brake Disc Dimensions

Outside Diameter	264mm
Thickness	21.0mm
Mounting P.C.D.	139.7mm
Mounting Type	Bolted - 6 Bolt
Eye Diameter	154.9mm
Spigot Diameter	mm
Inside Flange Diameter	125.8mm
Mounting Flange Thickness	5.6mm
Mounting Offset	mm
Max Pad Depth	D51.0
No. of Vanes	36
Air Gap	9.3
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
