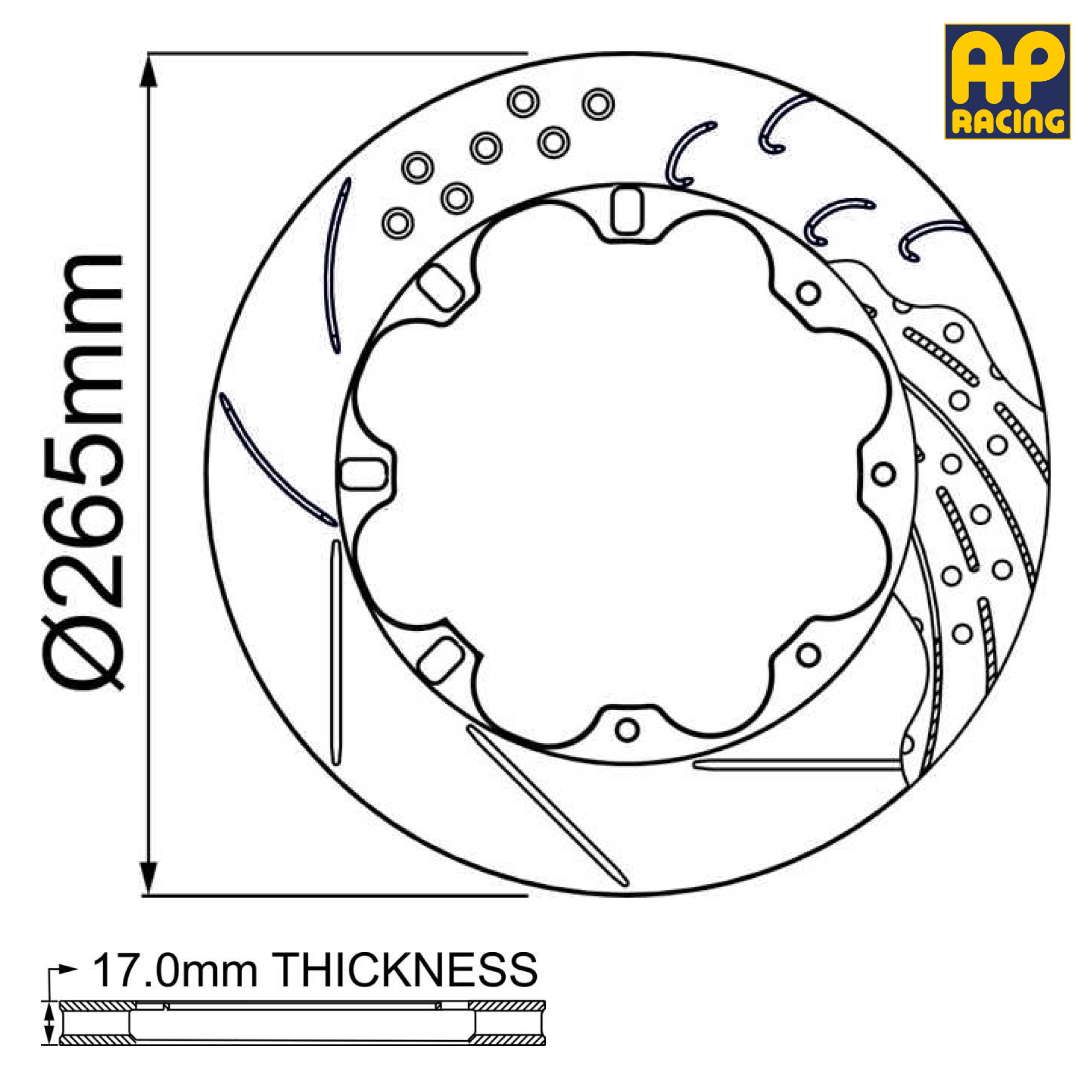

265mm x 17.0mm Brake Disc Dimensions

Outside Diameter	265mm
Thickness	17.0mm
Mounting P.C.D.	139.7mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	162.7mm
Spigot Diameter	mm
Inside Flange Diameter	123.0mm
Mounting Flange Thickness	4.82mm
Mounting Offset	mm
Max Pad Depth	D51.0
No. of Vanes	24
Air Gap	6.5
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
