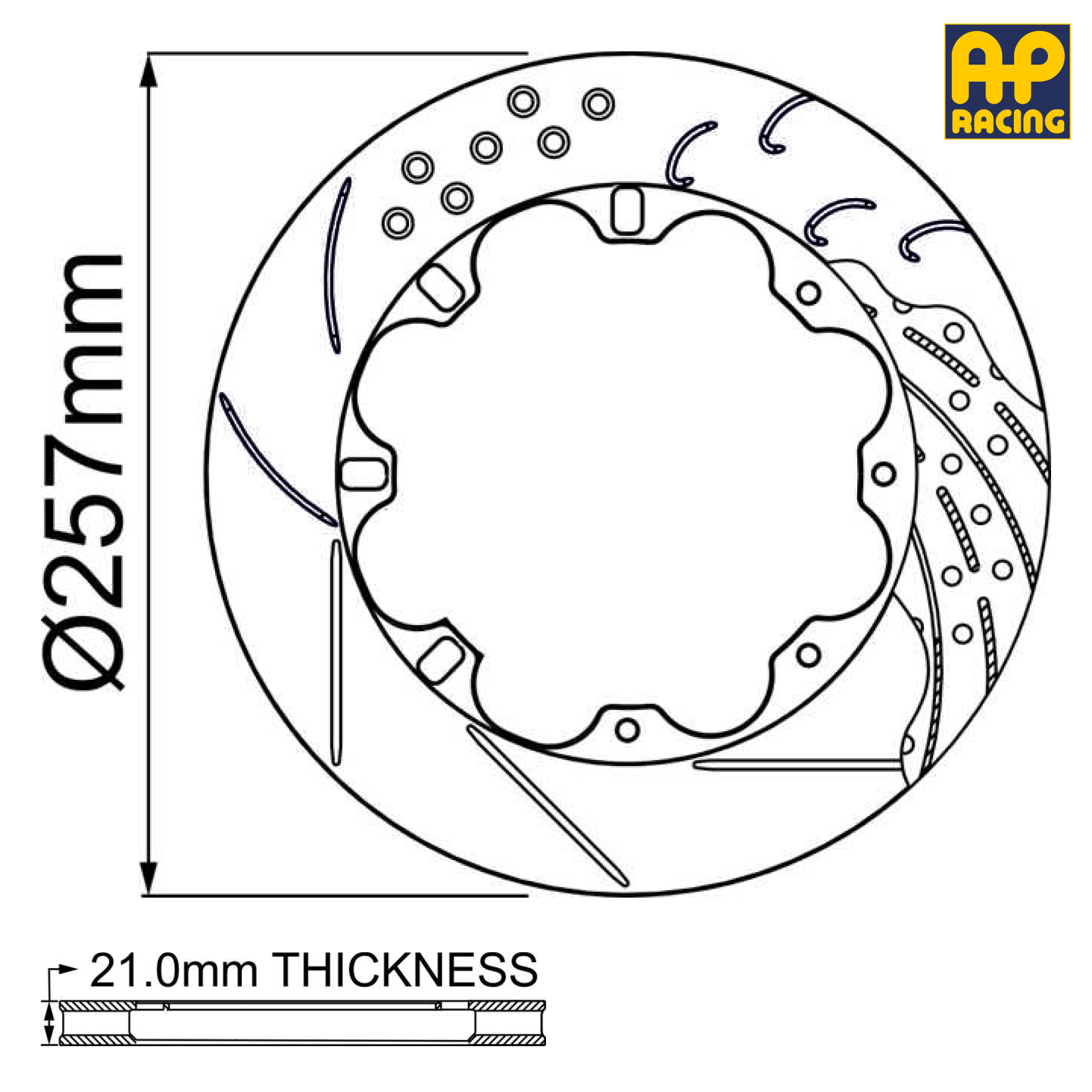

Ø257mm x 21.0mm Ventilated Brake Disc - 6 x 139.7mm PCD
Ø257mm x 21.0mm Ventilated Brake Disc - 6 x 139.7mm PCD
SKU:CP4136-86G4
Regular price
€275.45
€338.80
Brake Disc Dimensions
Brake Disc Dimensions
Outside Diameter - 257mm
Thickness - 21.0mm
Mounting P.C.D. - 139.7mm
Mounting Type - Bolted - 6 Bolt
Spigot Diameter - mm
Eye Diameter: - 154.9mm
Inside Flange Diameter - 125.8mm
Mounting Flange Thickness - 5.6mm
Mounting Offset - mm
Max Pad Depth - D51.0
No. of Vanes - 36
Air Gap - 9.3mm
Weight - Kg
257mm x 21.0mm Brake Disc Dimensions
Outside Diameter | 257mm |
Thickness | 21.0mm |
Mounting P.C.D. | 139.7mm |
Mounting Type | Bolted - 6 Bolt |
Eye Diameter | 154.9mm |
Spigot Diameter | mm |
Inside Flange Diameter | 125.8mm |
Mounting Flange Thickness | 5.6mm |
Mounting Offset | mm |
Max Pad Depth | D51.0 |
No. of Vanes | 36 |
Air Gap | 9.3 |
Weight | Kg |
Face Types Available |
G4 - Grooved (Straight Forward)
|
Disc Handing |
Universal
|
Notes |
Brand:
AP Racing
Manufacturer Part Number:
CP4136-86G4
