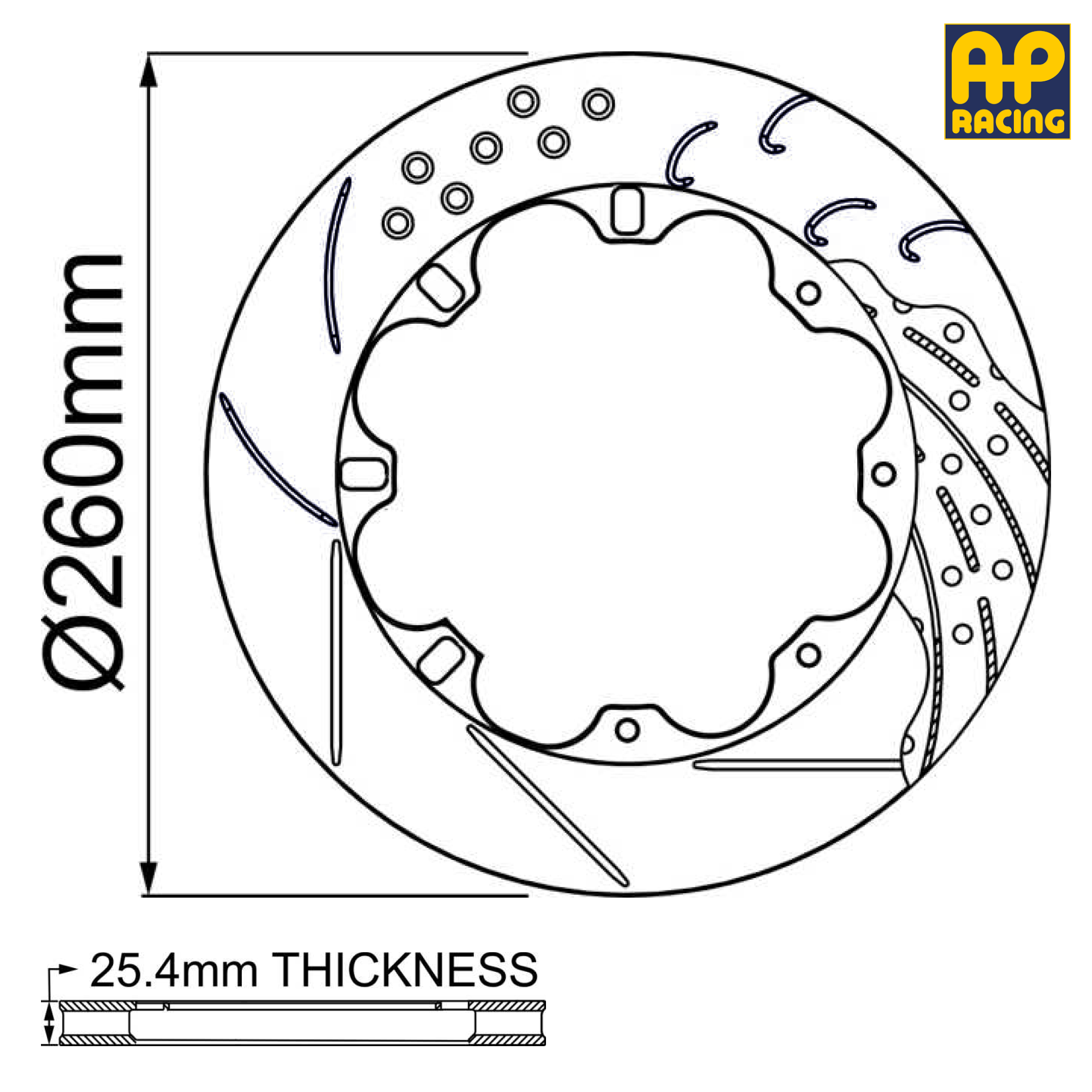

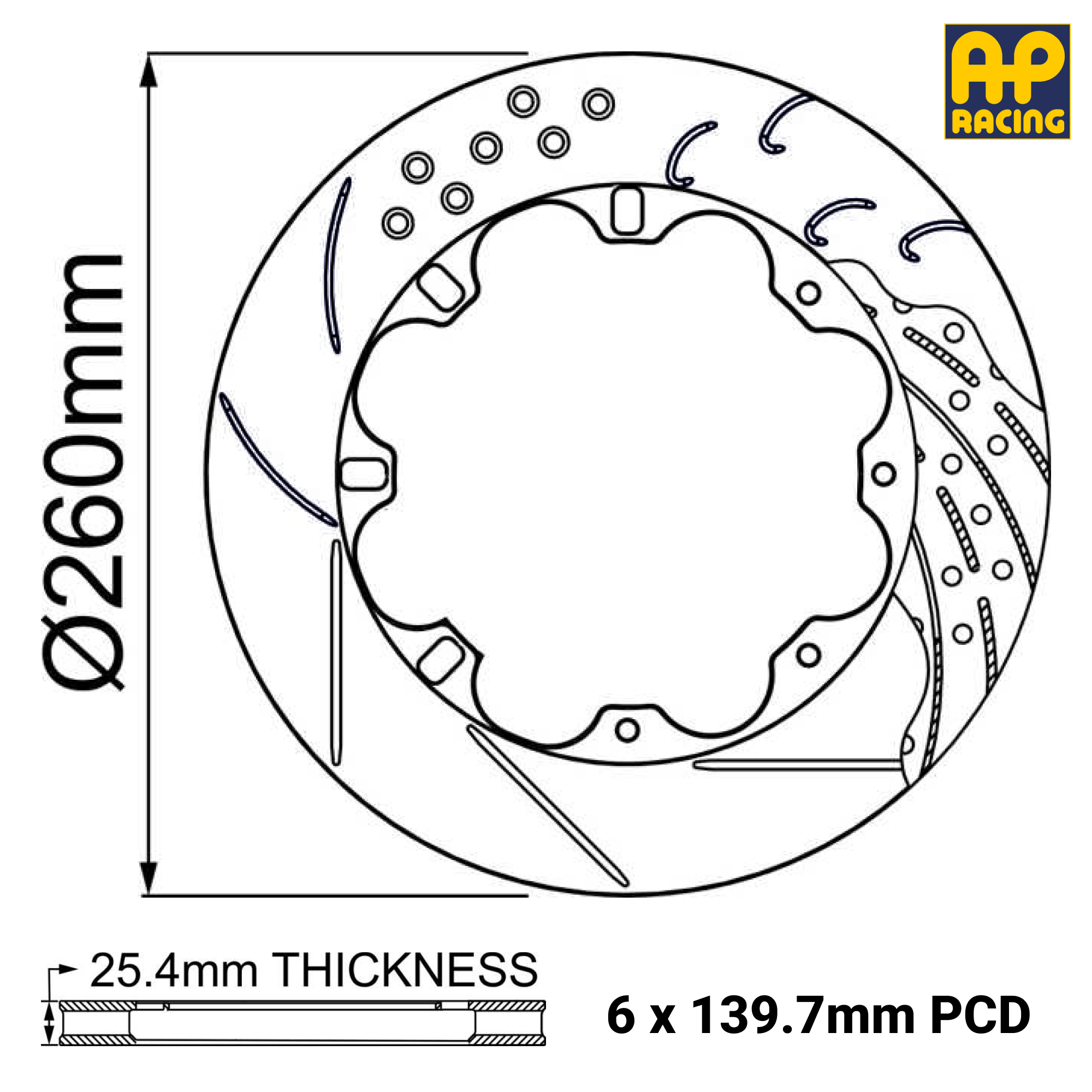

260mm x 25.4mm Brake Disc Dimensions

Outside Diameter	260mm
Thickness	25.4mm
Mounting P.C.D.	139.7mm
Mounting Type	Bolted - 6 Bolt
Eye Diameter	154.9mm
Spigot Diameter	mm
Inside Flange Diameter	125.8mm
Mounting Flange Thickness	4.8mm
Mounting Offset	mm
Max Pad Depth	D51.0
No. of Vanes	48
Air Gap	10.5
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)

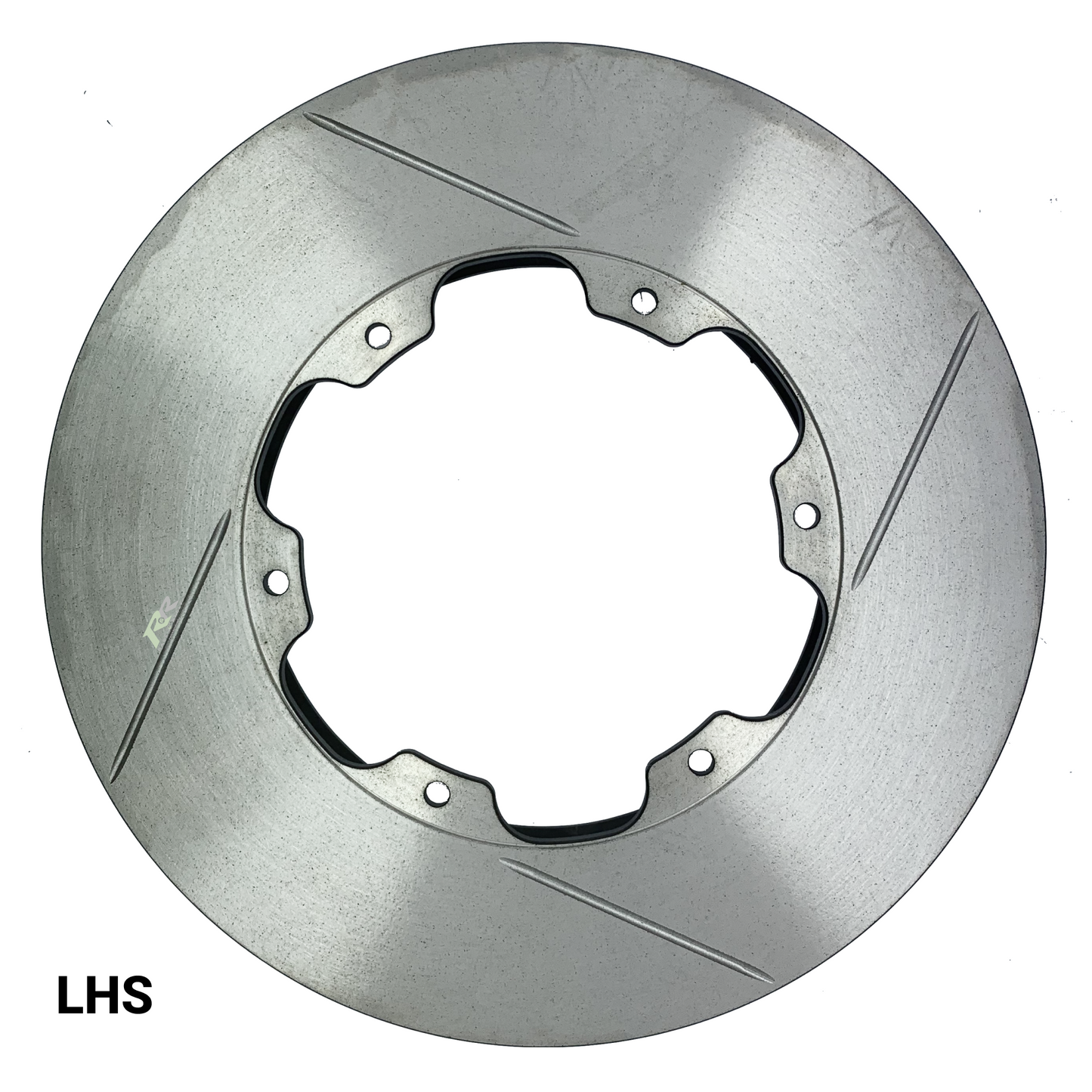

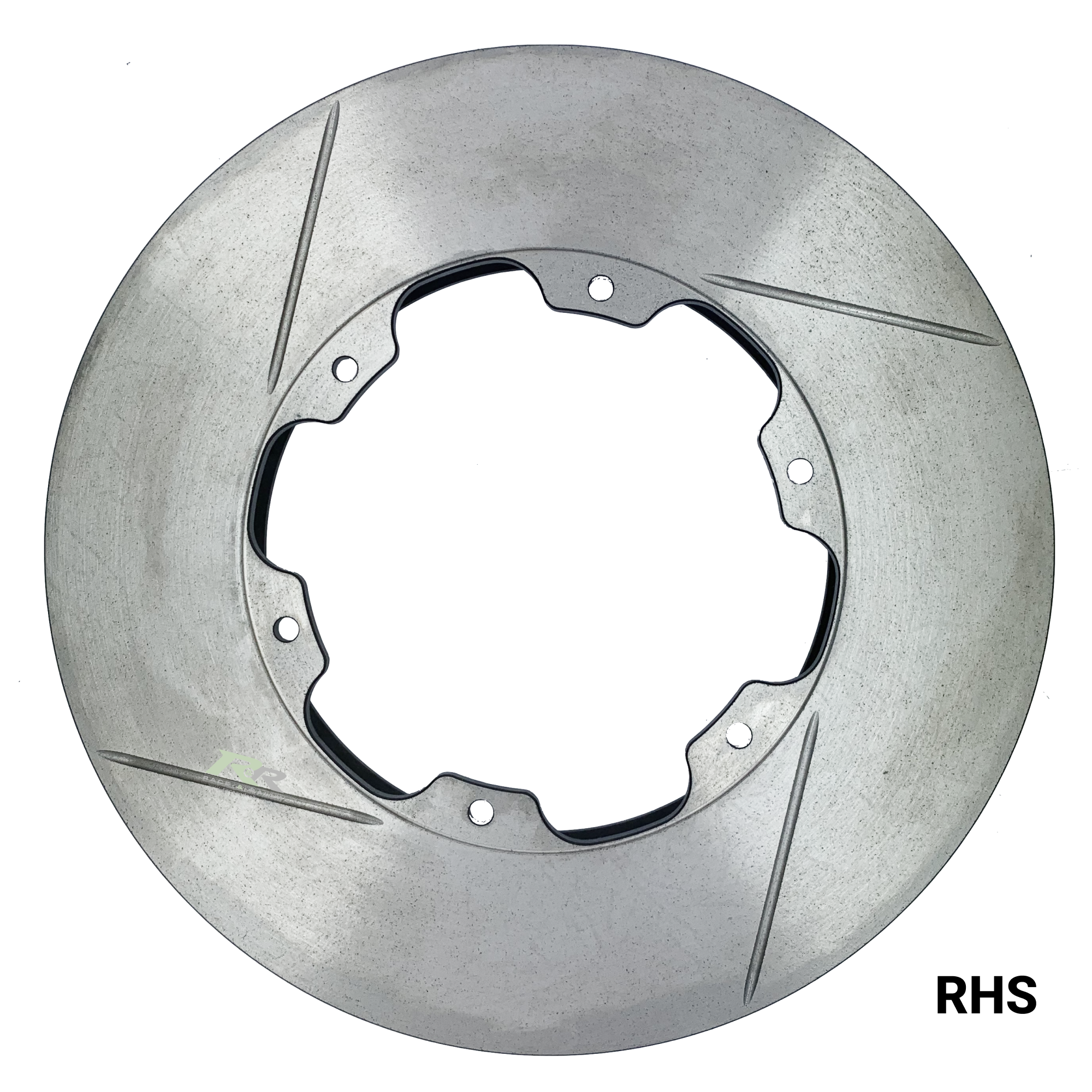

Disc Handing	Right-Hand Side Left-Hand Side
Notes
