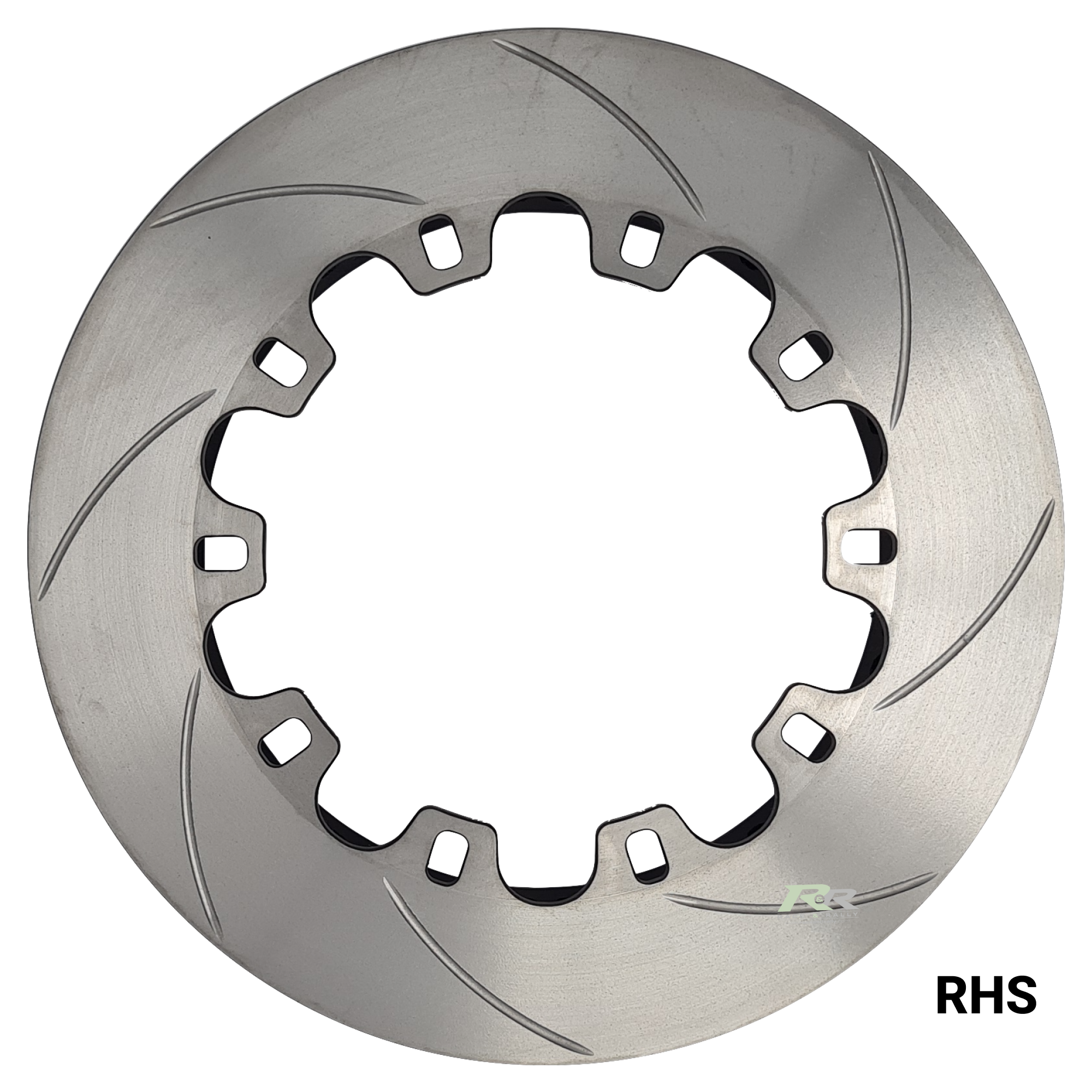

Ø300mm x 32.0mm Ventilated Brake Disc - 10 x 187.0mm PCD - Bolted - RHS
Ø300mm x 32.0mm Ventilated Brake Disc - 10 x 187.0mm PCD - Bolted - RHS
SKU:CP5154-122CG8
Regular price
€443.68
€545.73
Brake Disc Dimensions
Brake Disc Dimensions
Outside Diameter - 300mm
Thickness - 32.0mm
Mounting P.C.D. - 187.0mm
Mounting Type - Floating - 10 Bobbins
Spigot Diameter - mm
Eye Diameter: - 203.1mm
Inside Flange Diameter - 161.5mm
Mounting Flange Thickness - 5.45mm
Mounting Offset - mm
Max Pad Depth - D46.0
No. of Vanes - 54
Air Gap - 20.5mm
Weight - 4.42Kg
300mm x 32.0mm Brake Disc Dimensions
Outside Diameter | 300mm |
Thickness | 32.0mm |
Mounting P.C.D. | 187.0mm |
Mounting Type | Floating - 10 Bobbins |
Eye Diameter | 203.1mm |
Spigot Diameter | mm |
Inside Flange Diameter | 161.5mm |
Mounting Flange Thickness | 5.45mm |
Mounting Offset | mm |
Max Pad Depth | D46.0 |
No. of Vanes | 54 |
Air Gap | 20.5 |
Weight | 4.42Kg |
Face Types Available |
CG8 - Curved Grooves (Backward Facing)
|
Disc Handing |
Right-Hand Side
|
Notes |
Ford Fiesta R5 MKI EVO - Gravel BV18110004A & BV18110003A Use CP2494-1341MD Bobbins |
Brand:
AP Racing
Manufacturer Part Number:
CP5154-122CG8
