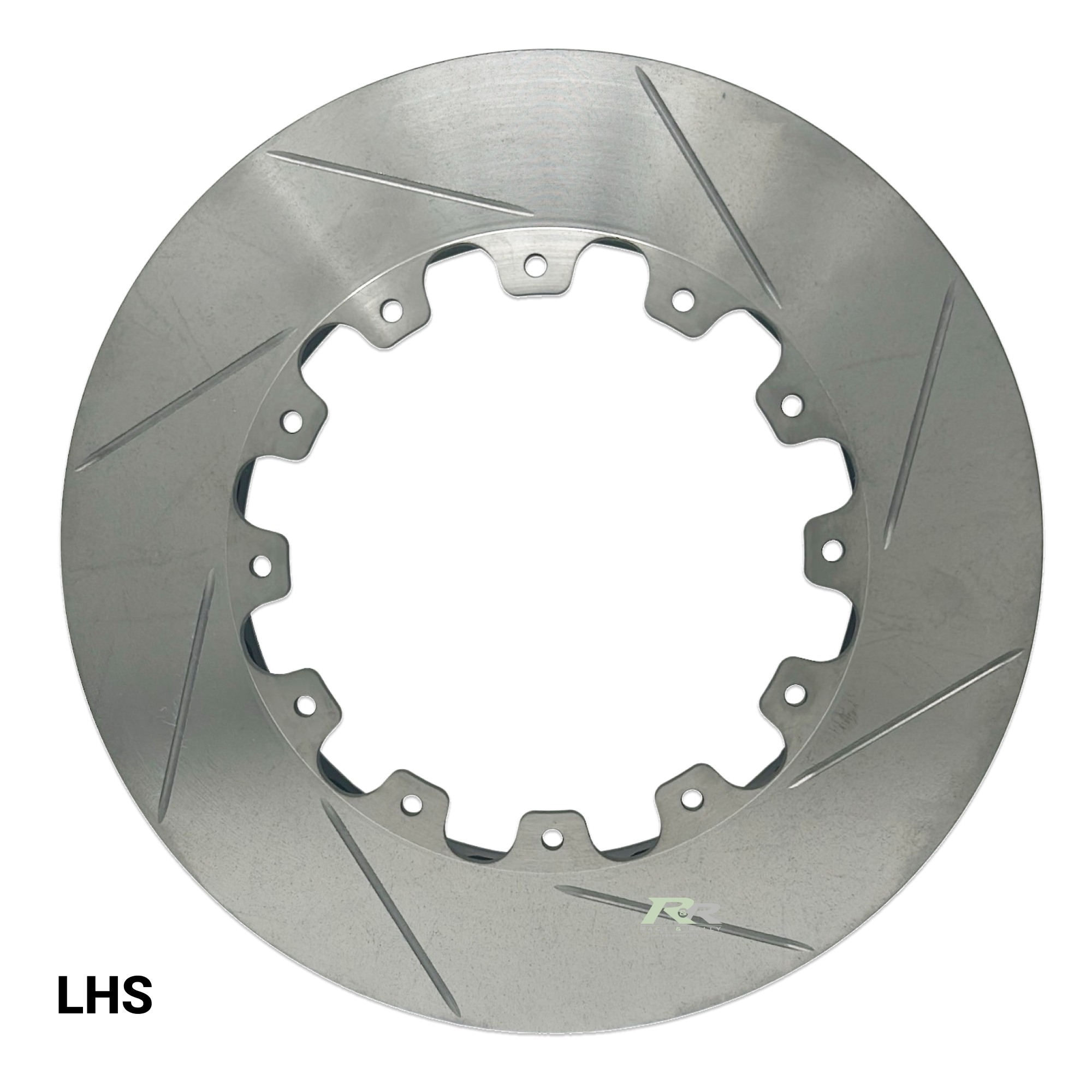

304mm x 25.4mm Brake Disc Dimensions

Outside Diameter	304mm
Thickness	25.4mm
Mounting P.C.D.	177.8mm
Mounting Type	Bolted - 12 Bolt
Eye Diameter	203.2mm
Spigot Diameter	mm
Inside Flange Diameter	164.0mm
Mounting Flange Thickness	4.9mm
Mounting Offset	mm
Max Pad Depth	D50.0
No. of Vanes	36
Air Gap	14.5
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)
Disc Handing	Left-Hand Side
