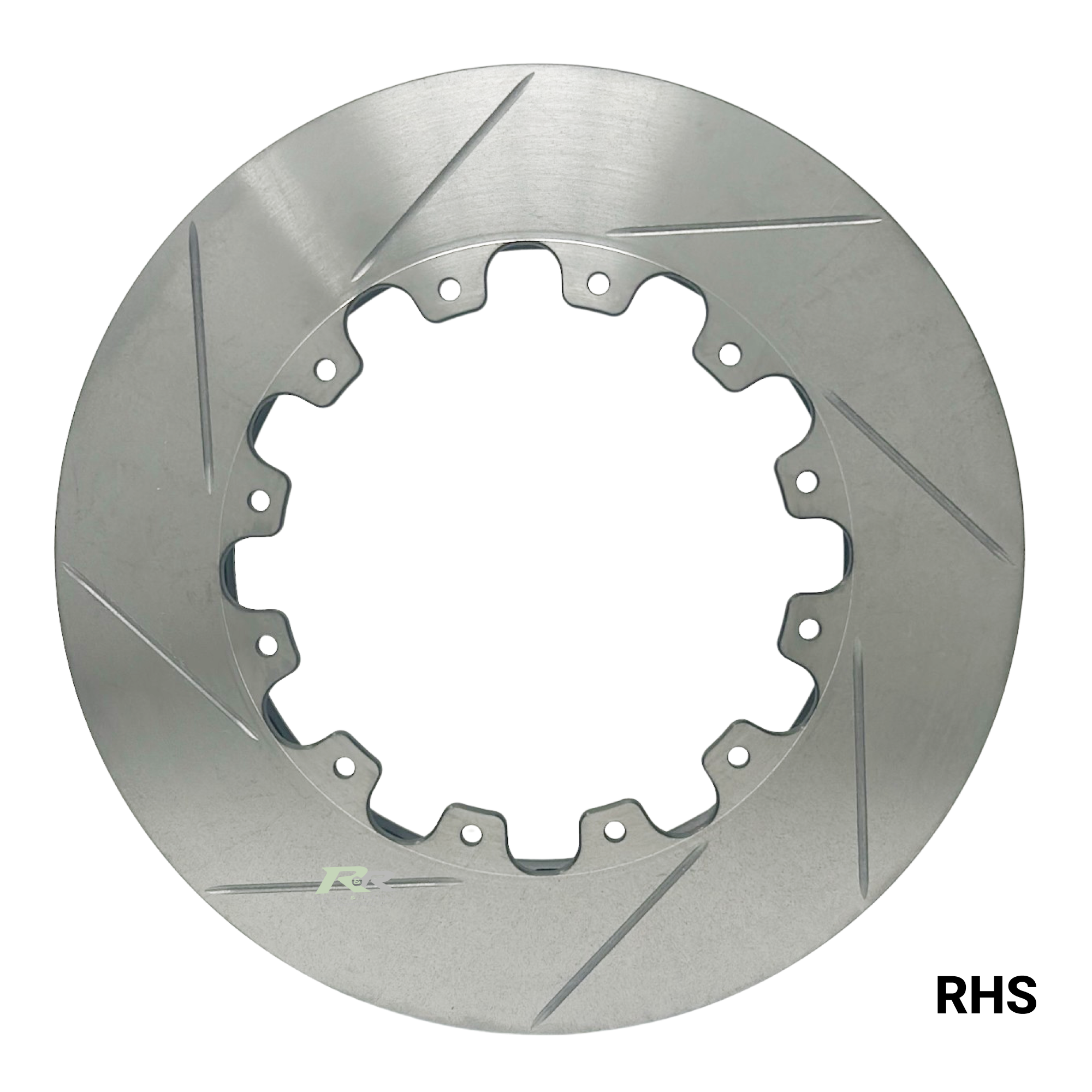

304mm x 25.4mm Brake Disc Dimensions
| Outside Diameter | 304mm |
| Thickness | 25.4mm |
| Mounting P.C.D | 177.8mm |
| Mounting Type | Bolted - 12 Bolt |
| Eye Diameter | 203.2mm |
| Inside Flange Diameter | 164.0mm |
| Mounting Flange Thickness | 4.9mm |
| Max Pad Depth | 50.0mm |
| No. of Vanes | 36 |
| Air Gap | 14.5mm |
| Face Types Available | G8 - Grooved (Straight Forward) |
| Disc Handing | Right-Hand Side |
| Brand | AP Racing | |
|---|---|---|
| Option | SKU | Barcode |
| G8 - Grooved (Straight Forward) / Right-Hand Side | CP3837-230G8 | |
