Ø304mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 16.0mm Air Gap

Ø304mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 16.0mm Air Gap

CP5254-106GA

€471.73 €580.23
Sale Sold out
▶ Brake Disc Dimensions
'A' - Outside Diameter 304mm
'B' - Thickness 28.0mm
'M' - Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 203.2mm
'D' - Inside Flange Diameter 161.0mm
'H' - Mounting Flange Thickness 5.6mm
Max Pad Depth 50.0mm
No. of Vanes 54
Air Gap 16.0mm

Out of stock, contact for leadtime

View full details

304mm x 28.0mm Brake Disc Dimensions

'A' - Outside Diameter 304mm
'B' - Thickness 28.0mm
'M' - Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 203.2mm
'H' - Inside Flange Diameter 161.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 50.0mm
No. of Vanes 54
Air Gap 16.0mm
Face Types Available GA - 'J' Hook Design
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode

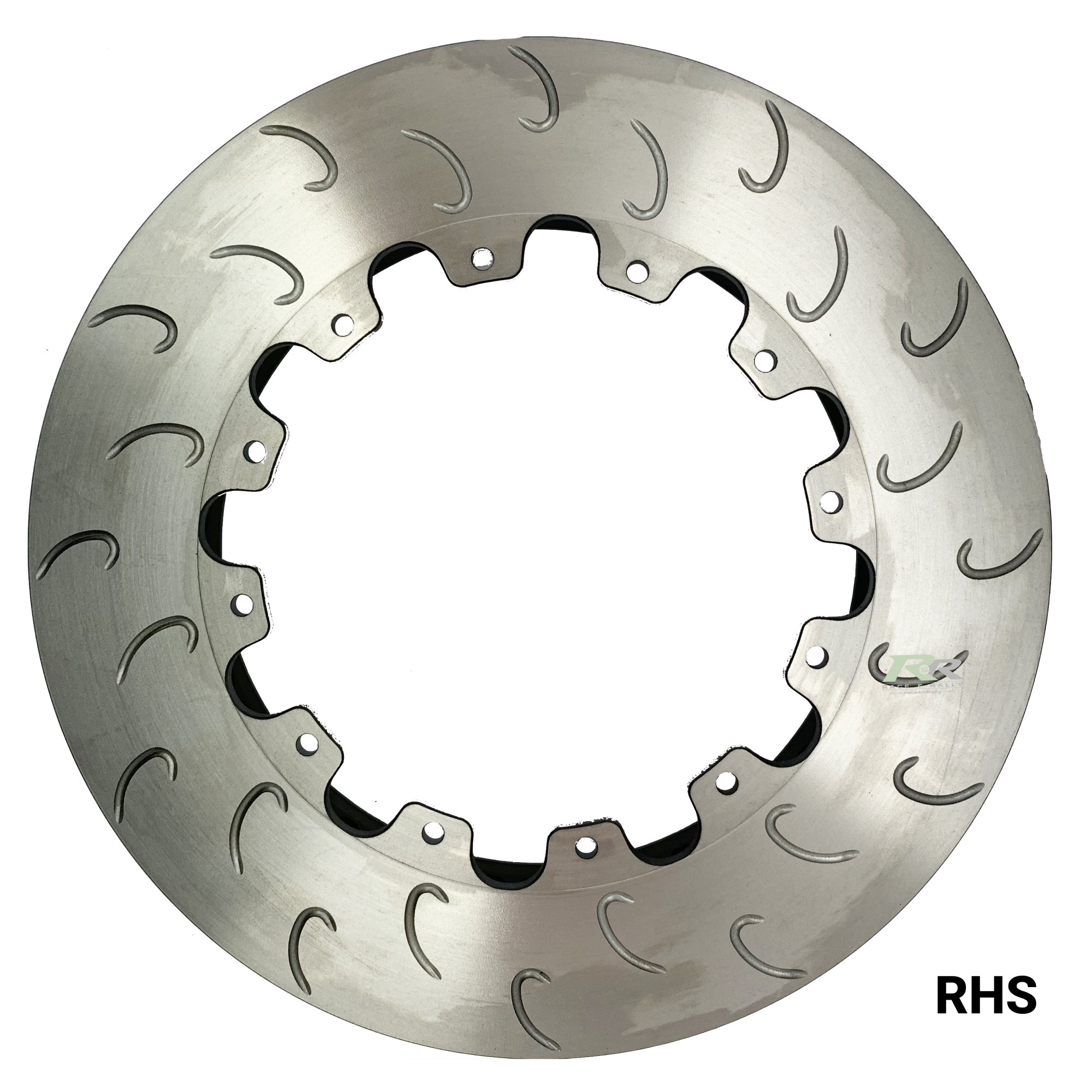

GA - 'J' Hook Design / Right-Hand Side CP5254-106GA

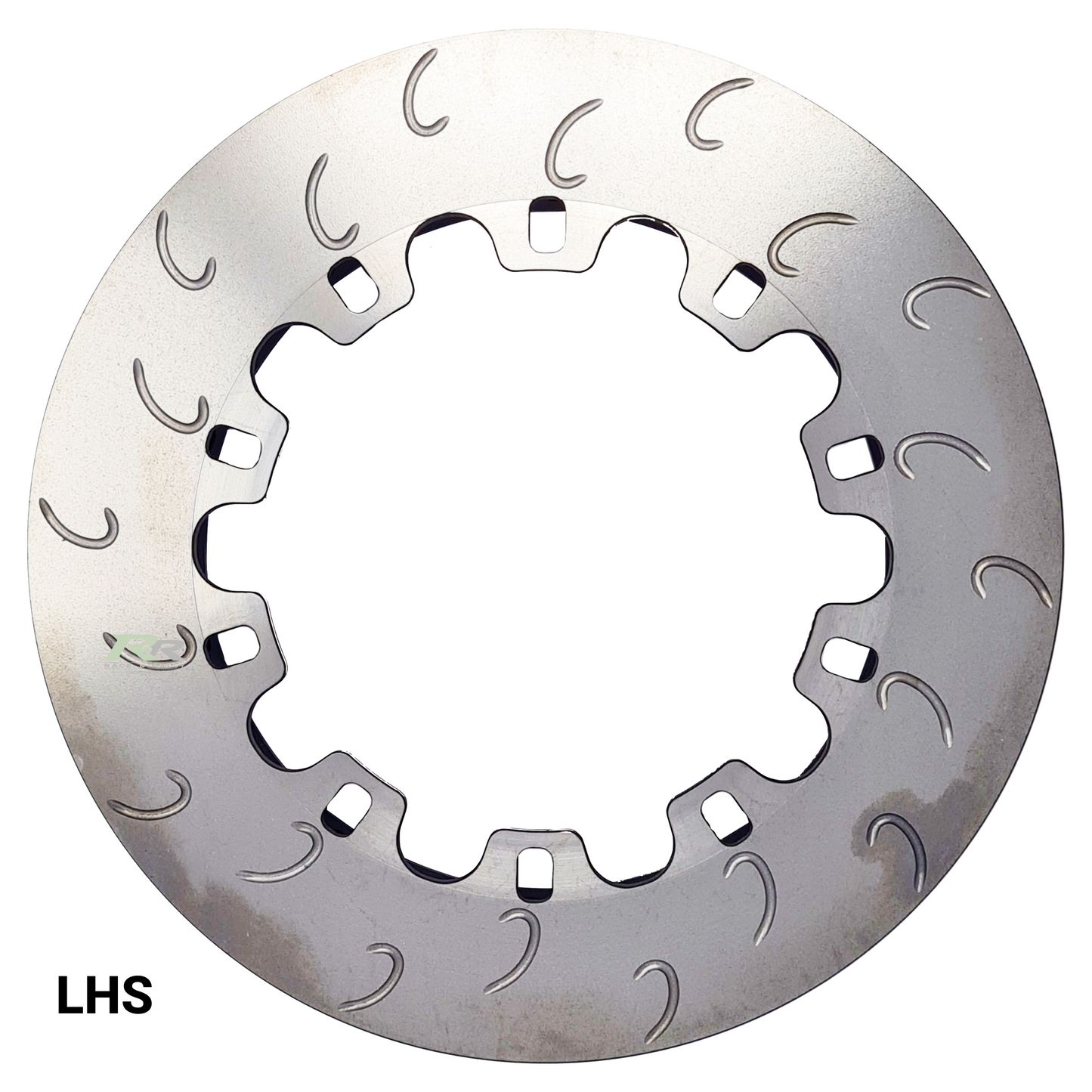

GA - 'J' Hook Design / Left-Hand Side CP5254-107GA


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
