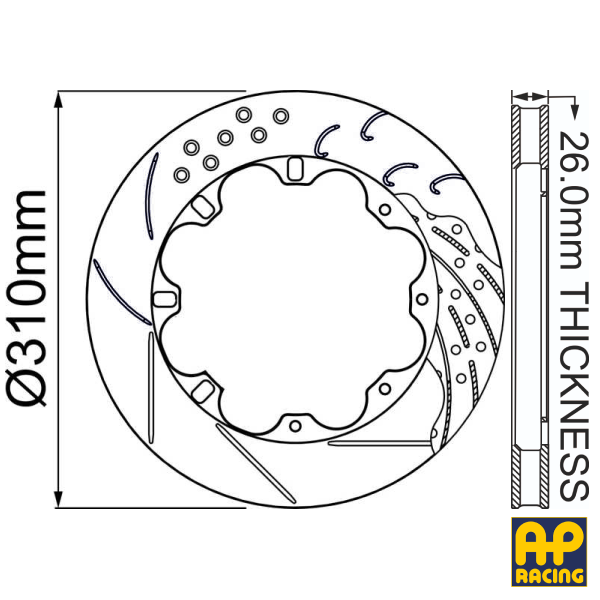

Ø310 x 26mm Ventilated Brake Disc

Ø310 x 26mm Ventilated Brake Disc

SKU:CP6565-204GA

Regular price €529.60 €651.41
Sale Sold out
  • Feature Icon Ø310mm
  • Feature Icon 26mm Thickness
  • Feature Icon 203.75mm P.C.D.
  • Feature Icon 13.50mm Air Gap
  • Feature Icon 48 Vanes
  • Feature Icon 10-Bobbins
  • Feature Icon 'J' Hook Face Design

View full details

APPLICATIONS

  • Opel Adam R2 - Front 17" Tarmac

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

  • 'A' Outside Diameter: 310mm
  • 'B' Thickness: 26.0mm
  • 'M' P.C.D.: 203.75mm
  • Fixing Type: S/Bobbin
    • 10 Bobbins
    • CP4135-105FM
  • 'C' Eye Diameter: 222.95mm
  • 'D' Inside Flange Diameter: 179.00mm
  • 'H' Mounting Flange Thickness: 6.10mm
  • Max Pad Depth: D42
  • Number of Vanes: 48
  • Air Gap: 13.5mm
  • Face Types Available:
    • GA | 'J' Hook Design

INSTALLATION DRAWING

Ventilated Brake Disc - Schematic

PART NUMBERS

GA | 'J' Hook Design

  • CP6565-204GA - RHS
  • CP6565-205GA - LHS

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
