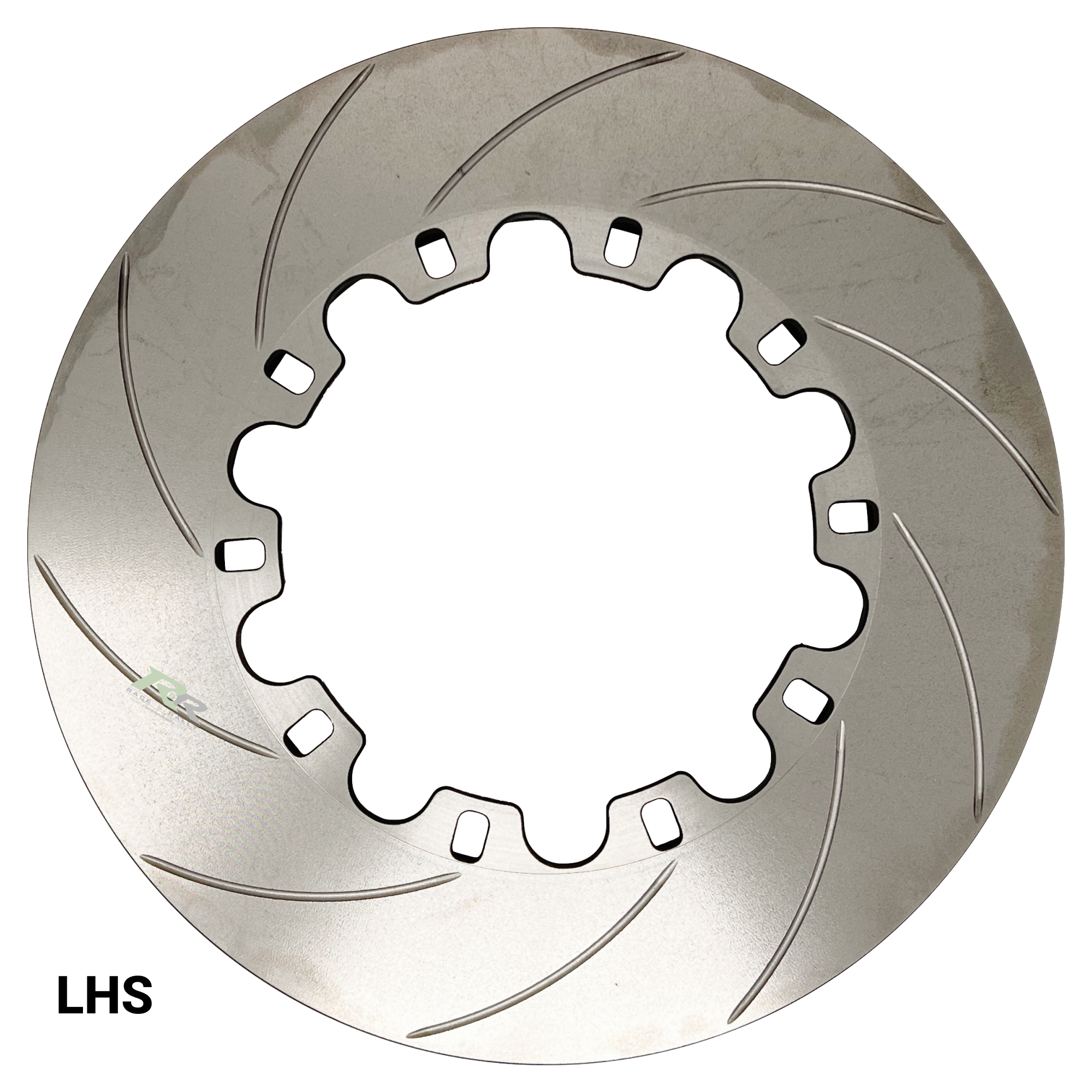

Ø330mm x 27.0mm Ventilated Brake Disc - 12 x 196.0mm PCD - Floating - LHS
Ø330mm x 27.0mm Ventilated Brake Disc - 12 x 196.0mm PCD - Floating - LHS
SKU:CP3580-2933CG10
Regular price
€292.55
€359.84
Brake Disc Dimensions
Brake Disc Dimensions
Outside Diameter - 330mm
Thickness - 27.0mm
Mounting P.C.D. - 196.00mm
Mounting Type - Floating - 10 Bobbins
Spigot Diameter - mm
Eye Diameter: - 215.0mm
Inside Flange Diameter - 170.5mm
Mounting Flange Thickness - 5.65mm
Mounting Offset - mm
Max Pad Depth - D56.0
No. of Vanes - 48
Air Gap - 14.0mm
Weight - 5.96Kg
330mm x 27.0mm Brake Disc Dimensions
Outside Diameter | 330mm |
Thickness | 27.0mm |
Mounting P.C.D. | 196.00mm |
Mounting Type | Floating - 10 Bobbins |
Eye Diameter | 215.0mm |
Spigot Diameter | mm |
Inside Flange Diameter | 170.5mm |
Mounting Flange Thickness | 5.65mm |
Mounting Offset | mm |
Max Pad Depth | D56.0 |
No. of Vanes | 48 |
Air Gap | 14.0 |
Weight | 5.96Kg |
Face Types Available |
CG10 - Curved Grooves (Backward Facing)
|
Disc Handing |
Left-Hand Side
|
Notes |
Ford Fiesta Rally4 / Rally4 Front Disc
RHS: PX18010008A LHS: PX18010007A |
Brand:
AP Racing
Manufacturer Part Number:
CP3580-2933CG10
