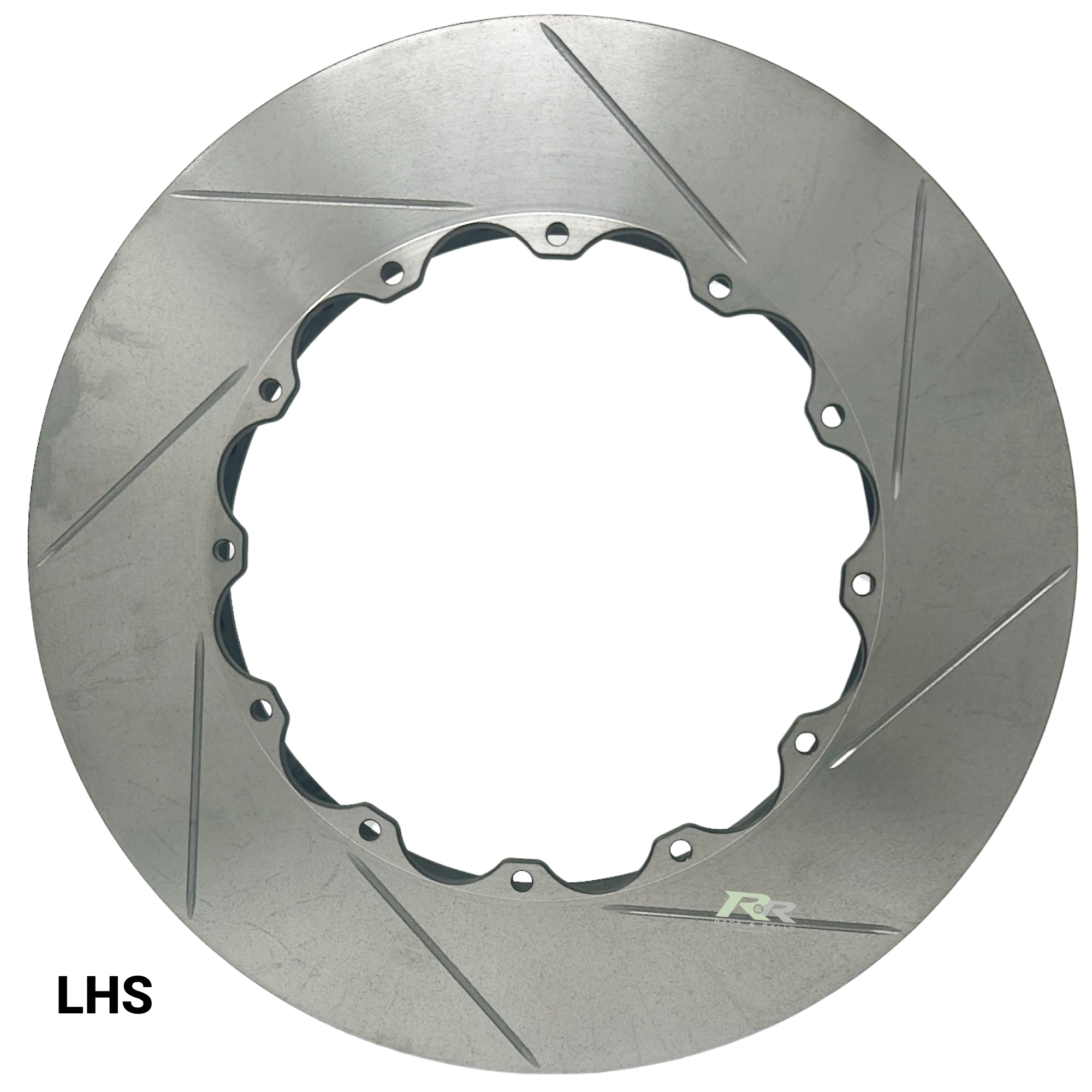

Ø332mm x 32.0mm Ventilated Brake Disc - 12 x 203.2mm PCD - Bolted - LHS
Ø332mm x 32.0mm Ventilated Brake Disc - 12 x 203.2mm PCD - Bolted - LHS
SKU:CP3581-767G8
Regular price
€467.47
€574.99
Brake Disc Dimensions
Brake Disc Dimensions
Outside Diameter - 332mm
Thickness - 32.0mm
Mounting P.C.D. - 203.2mm
Mounting Type - Bolted - 12 Bolt
Spigot Diameter - mm
Eye Diameter: - 216.8mm
Inside Flange Diameter - 190.0mm
Mounting Flange Thickness - 5.6mm
Mounting Offset - mm
Max Pad Depth - D58.0
No. of Vanes - 48
Air Gap - 19.5mm
Weight - Kg
332mm x 32.0mm Brake Disc Dimensions
Outside Diameter | 332mm |
Thickness | 32.0mm |
Mounting P.C.D. | 203.2mm |
Mounting Type | Bolted - 12 Bolt |
Eye Diameter | 216.8mm |
Spigot Diameter | mm |
Inside Flange Diameter | 190.0mm |
Mounting Flange Thickness | 5.6mm |
Mounting Offset | mm |
Max Pad Depth | D58.0 |
No. of Vanes | 48 |
Air Gap | 19.5 |
Weight | Kg |
Face Types Available |
G8 - Grooved (Straight Forward)
|
Disc Handing |
Left-Hand Side
|
Notes |
Brand:
AP Racing
Manufacturer Part Number:
CP3581-767G8
