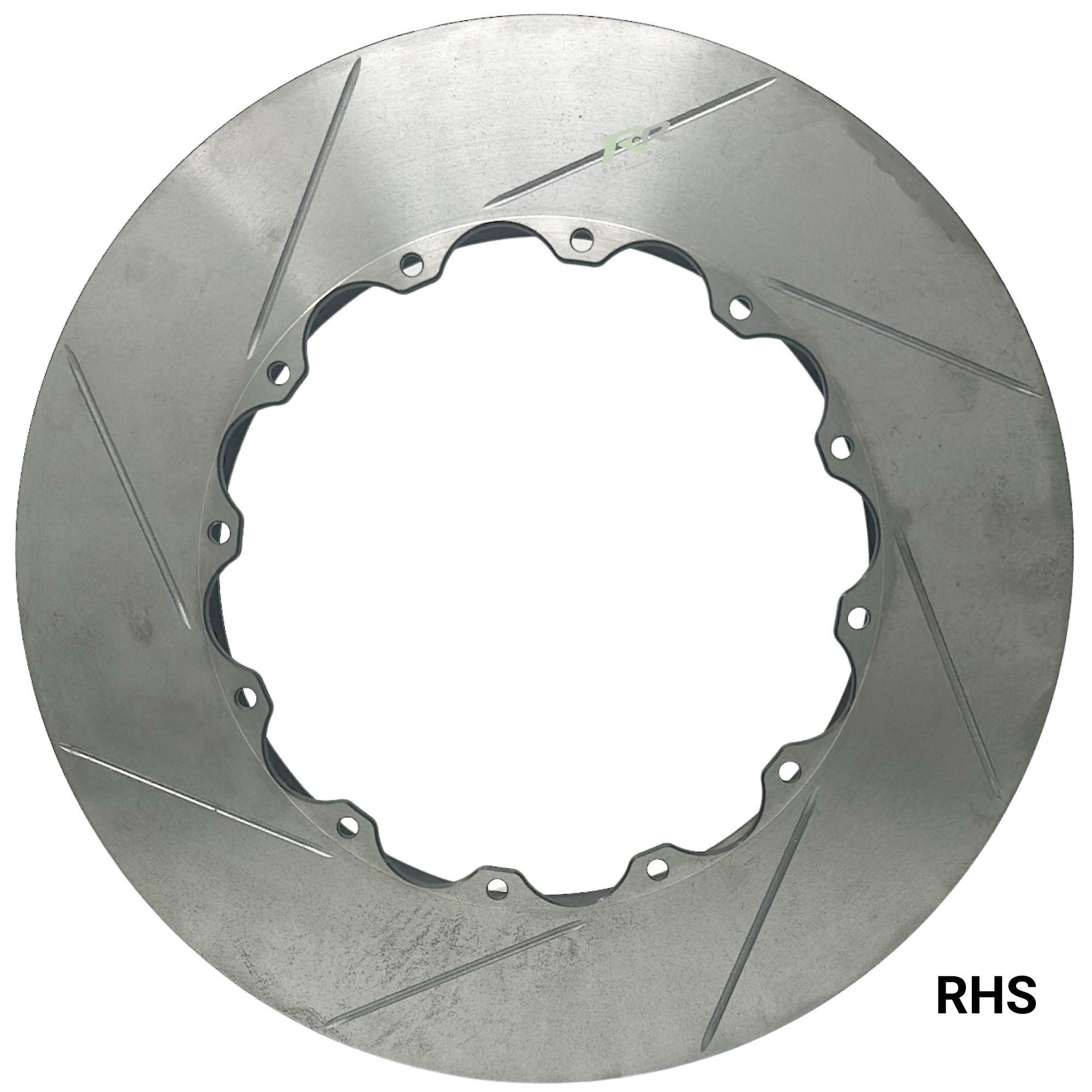

332mm x 32.0mm Brake Disc Dimensions

Outside Diameter	332mm
Thickness	32.0mm
Mounting P.C.D.	203.2mm
Mounting Type	Bolted - 12 Bolt
Eye Diameter	216.8mm
Spigot Diameter	mm
Inside Flange Diameter	190.0mm
Mounting Flange Thickness	5.6mm
Mounting Offset	mm
Max Pad Depth	D58.0
No. of Vanes	48
Air Gap	19.5
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)
Disc Handing	Right-Hand Side
Notes
