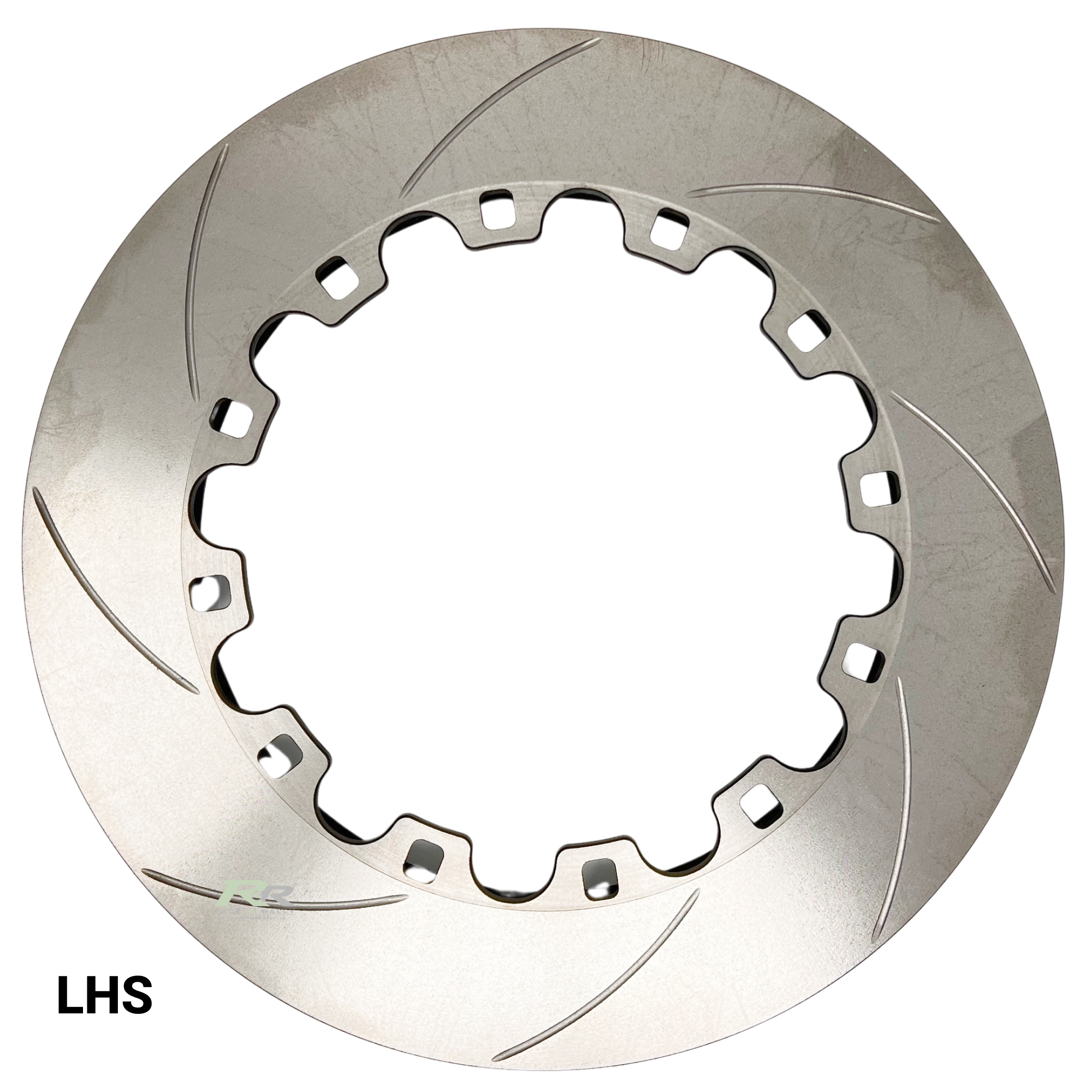

378mm x 34.0mm Brake Disc Dimensions

Outside Diameter	378mm
Thickness	34.0mm
Mounting P.C.D.	247.65mm
Mounting Type	Floating - 12 Bobbins
Eye Diameter	266.85mm
Spigot Diameter	mm
Inside Flange Diameter	221.0mm
Mounting Flange Thickness	mm
Mounting Offset	mm
Max Pad Depth	D54.0
No. of Vanes	72
Air Gap	17.0
Weight	8.63Kg
Face Types Available	CG8 - Curved Grooves (Backward Facing)
Disc Handing	Left-Hand Side
Notes	For standard 0.40mm Float, use Bobbin CP4135-107FR
