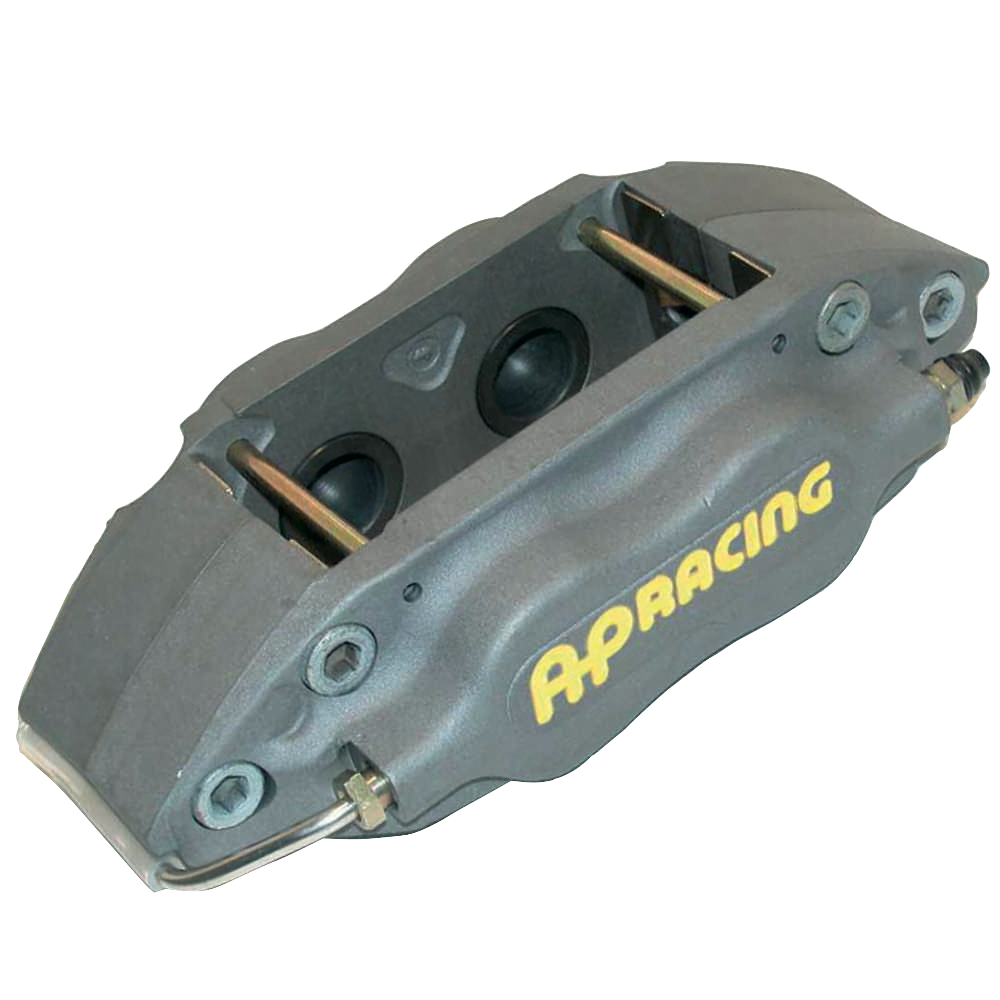

CP7613 / CP7606 - 4 Piston Radial Calipers

CP7613 / CP7606 - 4 Piston Radial Calipers

CP7613-2S0

€458.76 €564.27
Sale Sold out
  • Feature Icon Great Value
  • Feature Icon Formula Cars
  • Feature Icon Rally
Brake Disc Thickness
Piston Diameter
Caliper Hand
View Docs

Out of stock, contact for leadtime

View full details

Radial 4 Piston - Budget Calipers - CP7606 and CP7613

Applications:

  • Budget Formula Cars.

Features:

  • Radial Mount, 130 x 37.2mm centres.
  • Cast aluminium alloy body.
  • Suits Ø295 / Ø267 x 20mm or 18mm thick disc.
  • Aluminium pistons.
  • Pin pad retainer.
  • Stainless steel wear plates.

Part Numbers:

  • Caliper with Ø38.1mm bore
    • Right-hand Trailing - CP7606-12S0
    • Left-hand Trailing - CP7606-13S0
    • Right-hand Leading - CP7606-14S0
    • Left-hand Leading - CP7606-15S0
  • Caliper with Ø38.8mm bore - To Suit Ø295.0mm / Ø267.0mm x 18mm discs
    • Right-hand Trailing - CP7613-2S0
    • Left-hand Trailing - CP7613-3S0
    • Right-hand Leading - CP7613-4S0
    • Left-hand Leading - CP7613-5S0
  • Caliper with Ø38.8mm bore - To Suit Ø295.0mm / Ø267.0mm x 20mm discs

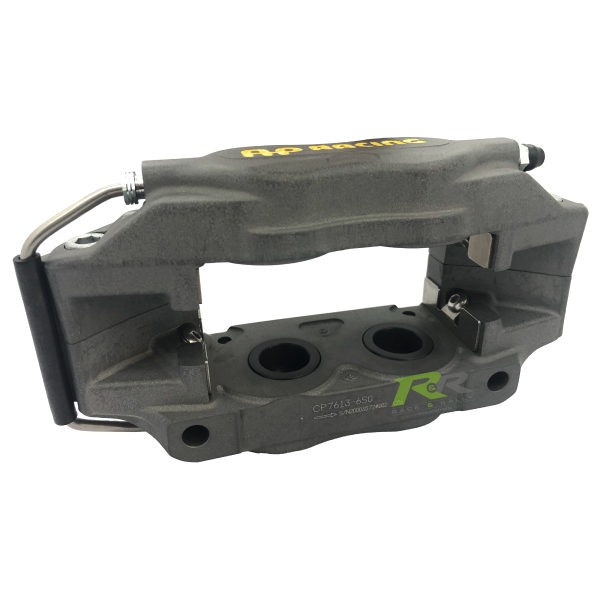

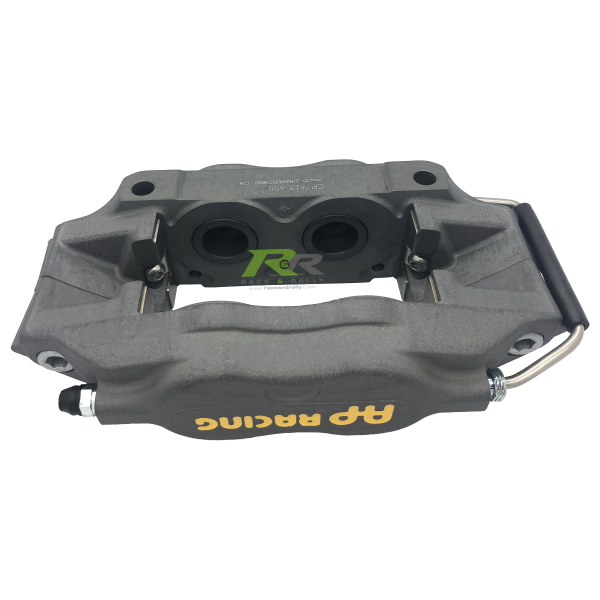

    • Right-hand Trailing - CP7613-6S0
    • Left-hand Trailing - CP7613-7S0
    • Right-hand Leading - CP7613-8S0
    • Left-hand Leading - CP7613-9S0

Technical Specifications:

 Piston Sizes CP7606 = Ø38.1 x 4
CP7613 = Ø31.8 x 4
Piston Area CP7606 = 45.6cm³
CP7613 = 31.6cm³
Disc Diameter

Max - Ø295mm
Min - Ø267mm
Disc Thickness

Max = 20.00mm
Min = 18.00mm
Weight (no pads) 1.7 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 130.00mm
Mounting Offset CP7606 & CP7613-2/3/4/5S0 = 37.25mm
CP7613-6/7/8/9S0 = 38.70mm
Mounting Hole Ø 10.20mm
'PL' Dimension 53.00mm
Bleed Screw Tightening Torque 17Nm



Spare Parts

Pistons

CP7606 = CP7605-109
CP7613 = CP7613-106
Seal Repair Kit CP7606 = CP4518-JJ
CP7613 = CP4518-EE
Pad Retainer Pin
CP7606 & CP7613-2/3/4/5S0 = CP7605-108
CP7613-6/7/8/9S0 = CP7613-112
Wear Plates CP7605-116
Bleed Screw CP3880-1
Bleed Screw Cap  CP7606 & CP7613-2/3/4/5S0 = CP7606-10
CP7613-6/7/8/9S0 = CP7613-10



Brake Pads

Pad Shape CP7600D46
CP7600D46 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 43.5cm²
Pad Depth 46.2mm
Thickness 16.0mm



Brand AP Racing
Option SKU Barcode
18.00mm / Ø31.8mm x4 / Right Hand Trailing CP7613-2S0
18.00mm / Ø31.8mm x4 / Left Hand Trailing CP7613-3S0
18.00mm / Ø31.8mm x4 / Right Hand Leading CP7613-4S0
18.00mm / Ø31.8mm x4 / Left Hand Leading CP7613-5S0
18.00mm / Ø38.1mm x4 / Right Hand Trailing CP7606-12S0
18.00mm / Ø38.1mm x4 / Left Hand Trailing CP7606-13S0
18.00mm / Ø38.1mm x4 / Right Hand Leading CP7606-14S0
18.00mm / Ø38.1mm x4 / Left Hand Leading CP7606-15S0
20.70mm / Ø31.8mm x4 / Right Hand Trailing CP7613-6S0
20.70mm / Ø31.8mm x4 / Left Hand Trailing CP7613-7S0
20.70mm / Ø31.8mm x4 / Right Hand Leading CP7613-8S0
20.70mm / Ø31.8mm x4 / Left Hand Leading CP7613-9S0
