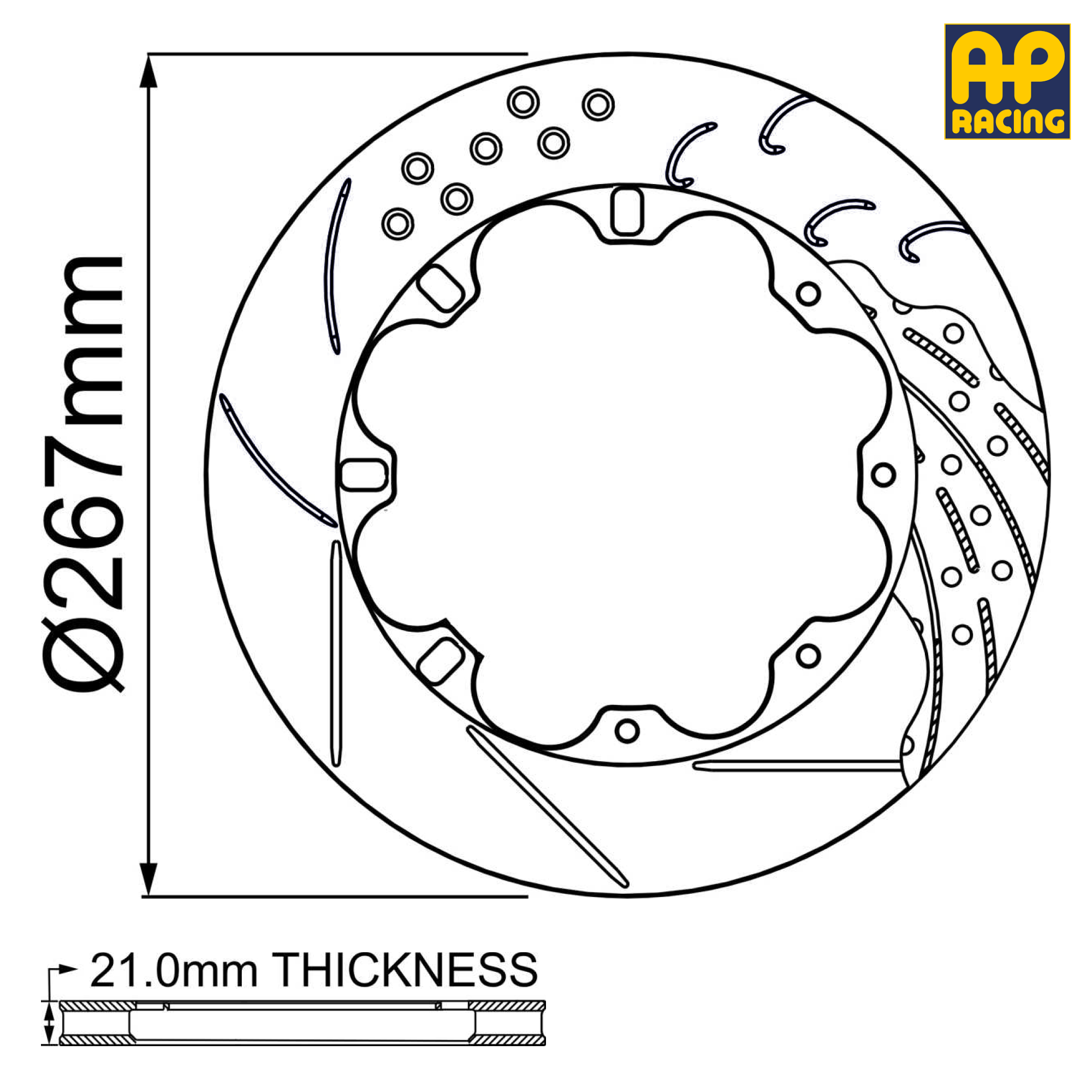

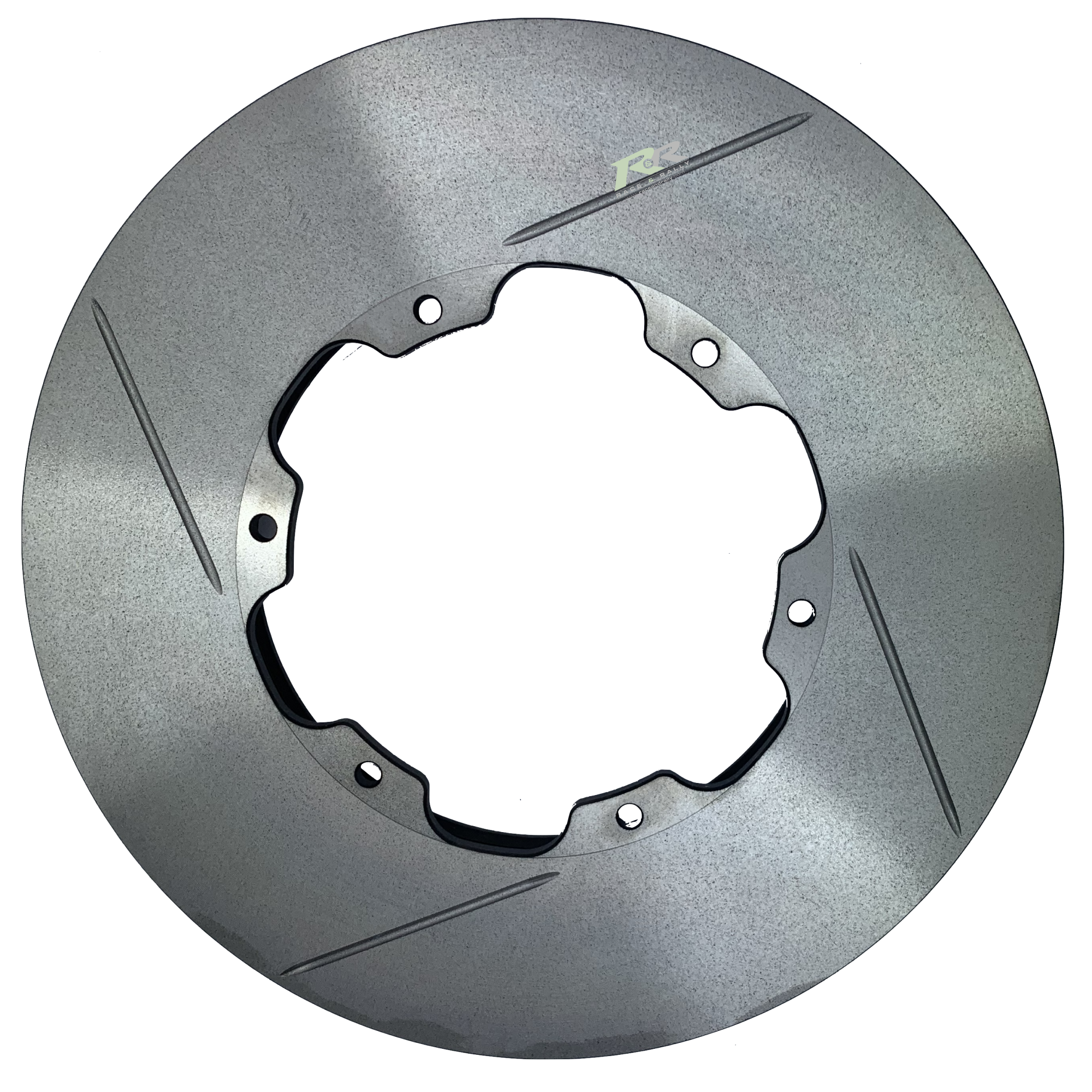

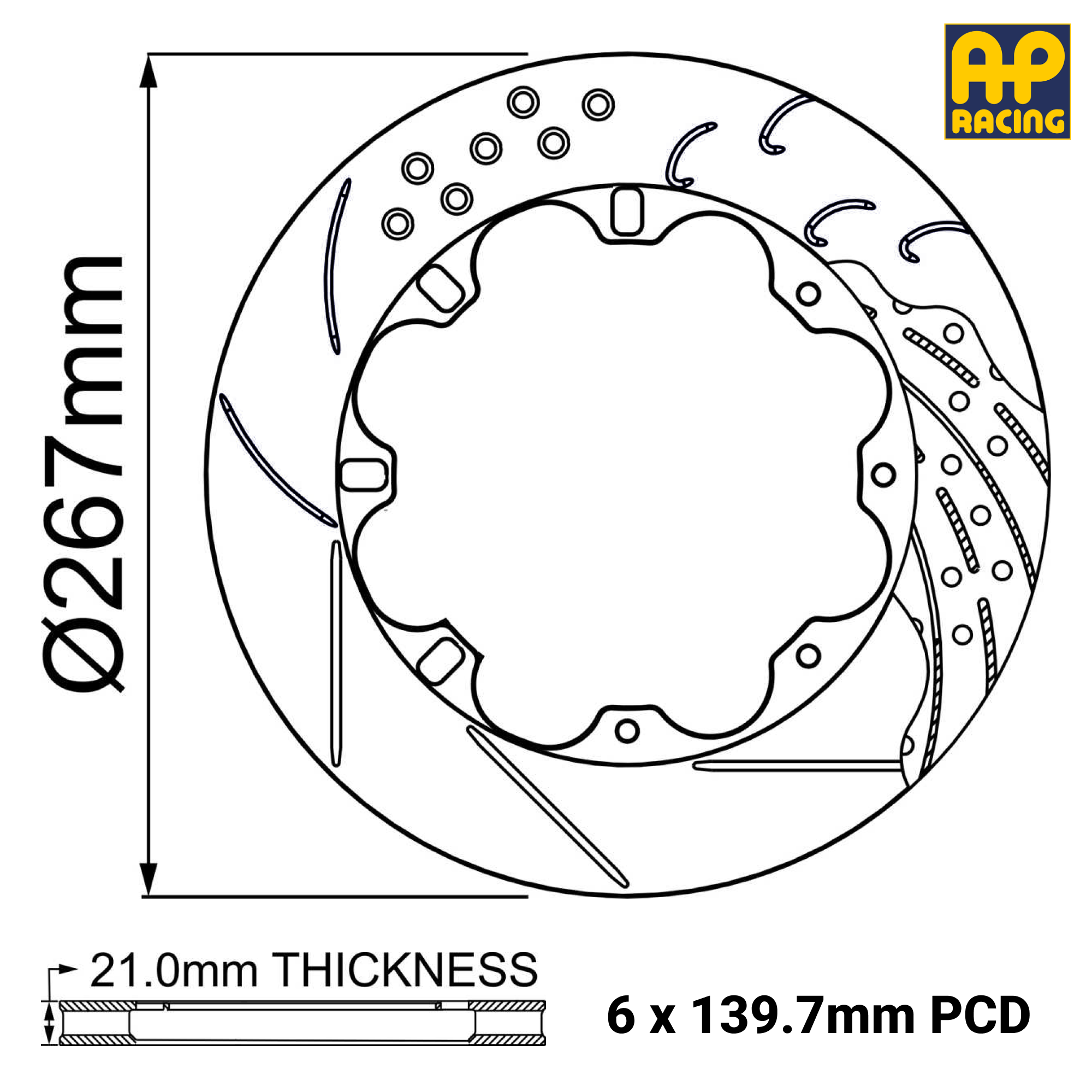

Ø267mm x 21.0mm Ventilated Brake Disc - 6 x 139.7mm PCD - 36 Vanes

Ø267mm x 21.0mm Ventilated Brake Disc - 6 x 139.7mm PCD - 36 Vanes

SKU:CP4136-48G4

Regular price €247.35 €304.24
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter - 267mm
  • Thickness - 21.0mm
  • Mounting P.C.D. - 139.7mm
  • Mounting Type - Bolted - 6 Bolt
  • Spigot Diameter - mm
  • Eye Diameter: - 155.0mm
  • Inside Flange Diameter - 125.8mm
  • Mounting Flange Thickness - 5.6mm
  • Mounting Offset - mm
  • Max Pad Depth - D54.0
  • No. of Vanes - 36
  • Air Gap - 9.3mm
  • Weight - Kg
View full details
267mm x 21.0mm Brake Disc Dimensions

Outside Diameter
267mm
Thickness
21.0mm
Mounting P.C.D.
139.7mm
Mounting Type
Bolted - 6 Bolt
Eye Diameter
155.0mm
Spigot Diameter
mm
Inside Flange Diameter
125.8mm
Mounting Flange Thickness
5.6mm
Mounting Offset
mm
Max Pad Depth
D54.0
No. of Vanes
36
Air Gap
9.3
Weight
Kg
Face Types Available
G4 - Grooved (Straight Forward)
Disc Handing
Universal
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP4136-48G4
