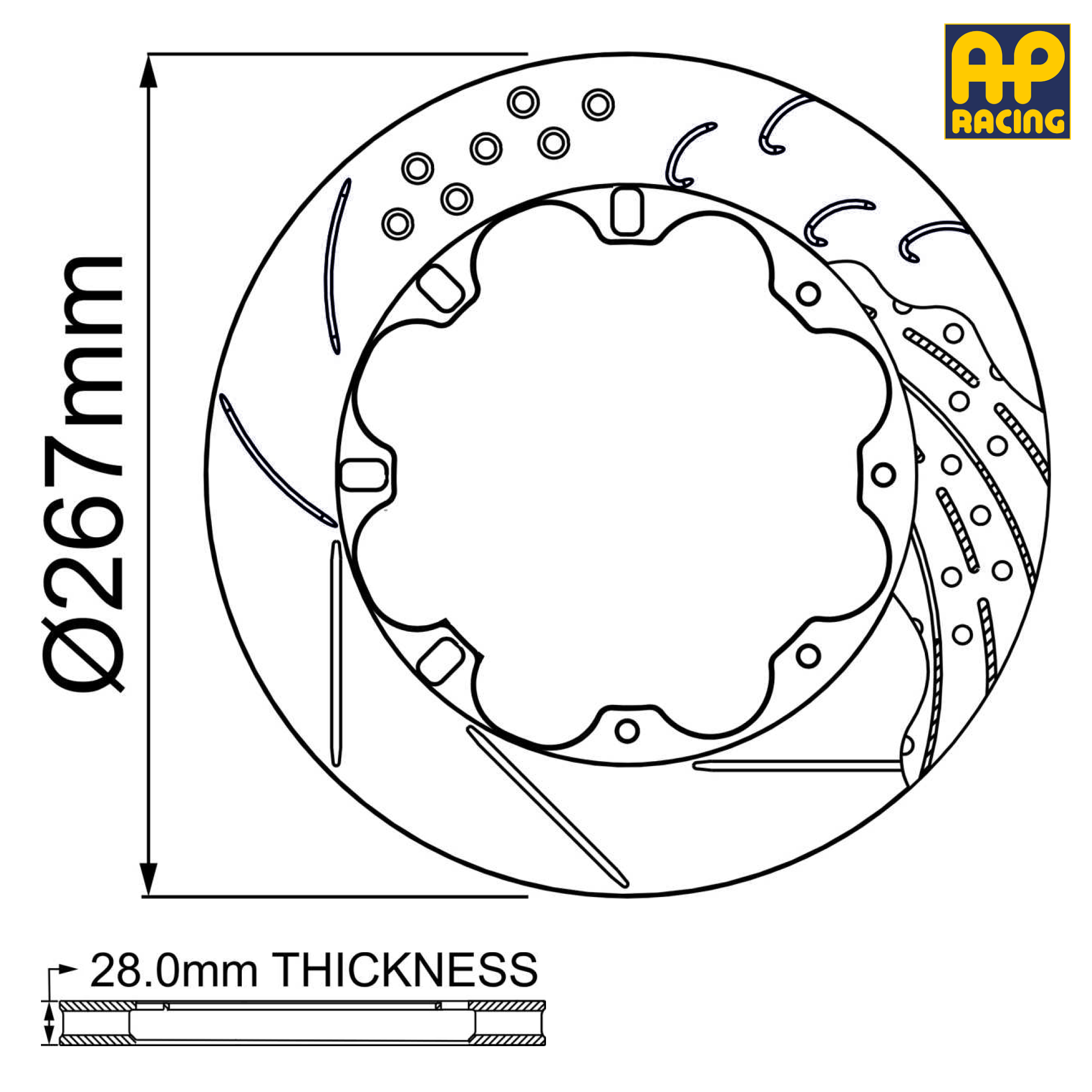

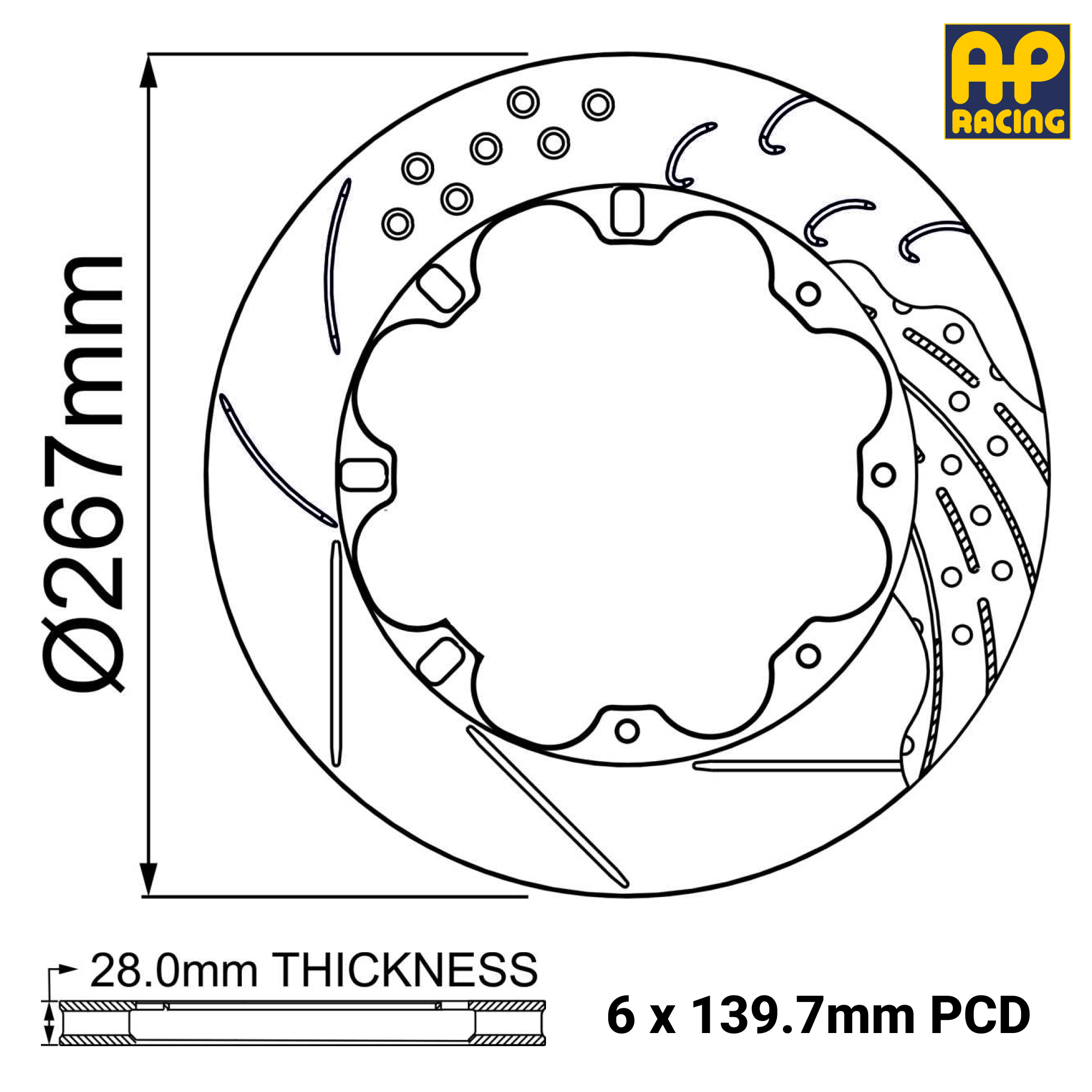

267mm x 28.0mm Brake Disc Dimensions

Outside Diameter	267mm
Thickness	28.0mm
Mounting P.C.D.	139.7mm
Mounting Type	Bolted - 6 Bolt
Eye Diameter	156.43mm
Spigot Diameter	mm
Inside Flange Diameter	123.0mm
Mounting Flange Thickness	5.58mm
Mounting Offset	mm
Max Pad Depth	D54.0
No. of Vanes	48
Air Gap	10.5
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
