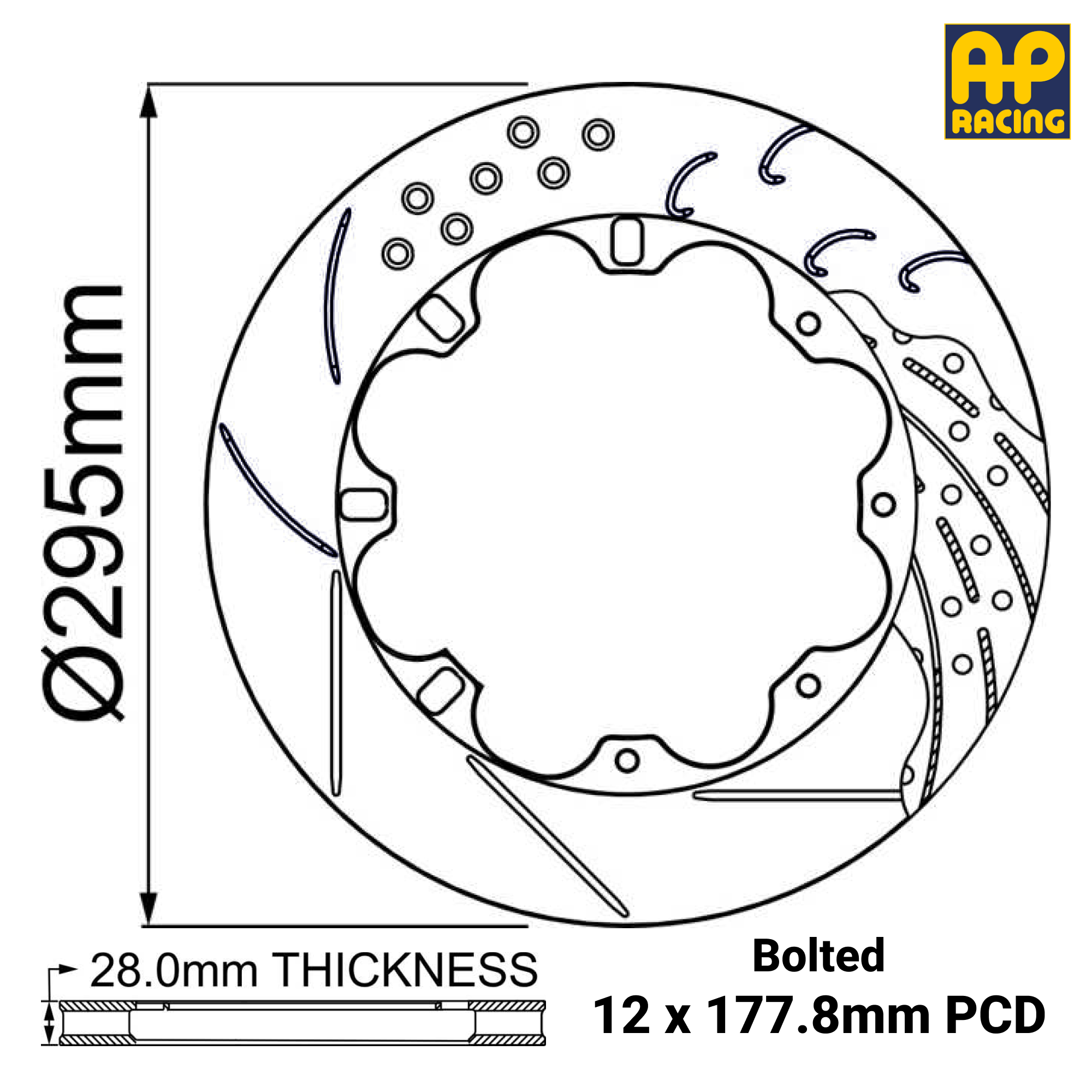

295mm x 28.0mm Brake Disc Dimensions

Outside Diameter	295mm
Thickness	28.0mm
Mounting P.C.D.	177.8mm
Mounting Type	Bolted - 12 Bolt
Eye Diameter	193.0mm
Spigot Diameter	mm
Inside Flange Diameter	164.0mm
Mounting Flange Thickness	5.9mm
Mounting Offset	mm
Max Pad Depth	D51.0
No. of Vanes	36
Air Gap	14.5
Weight	Kg
Face Types Available	36
Disc Handing	G4 - Grooved (Straight Forward)

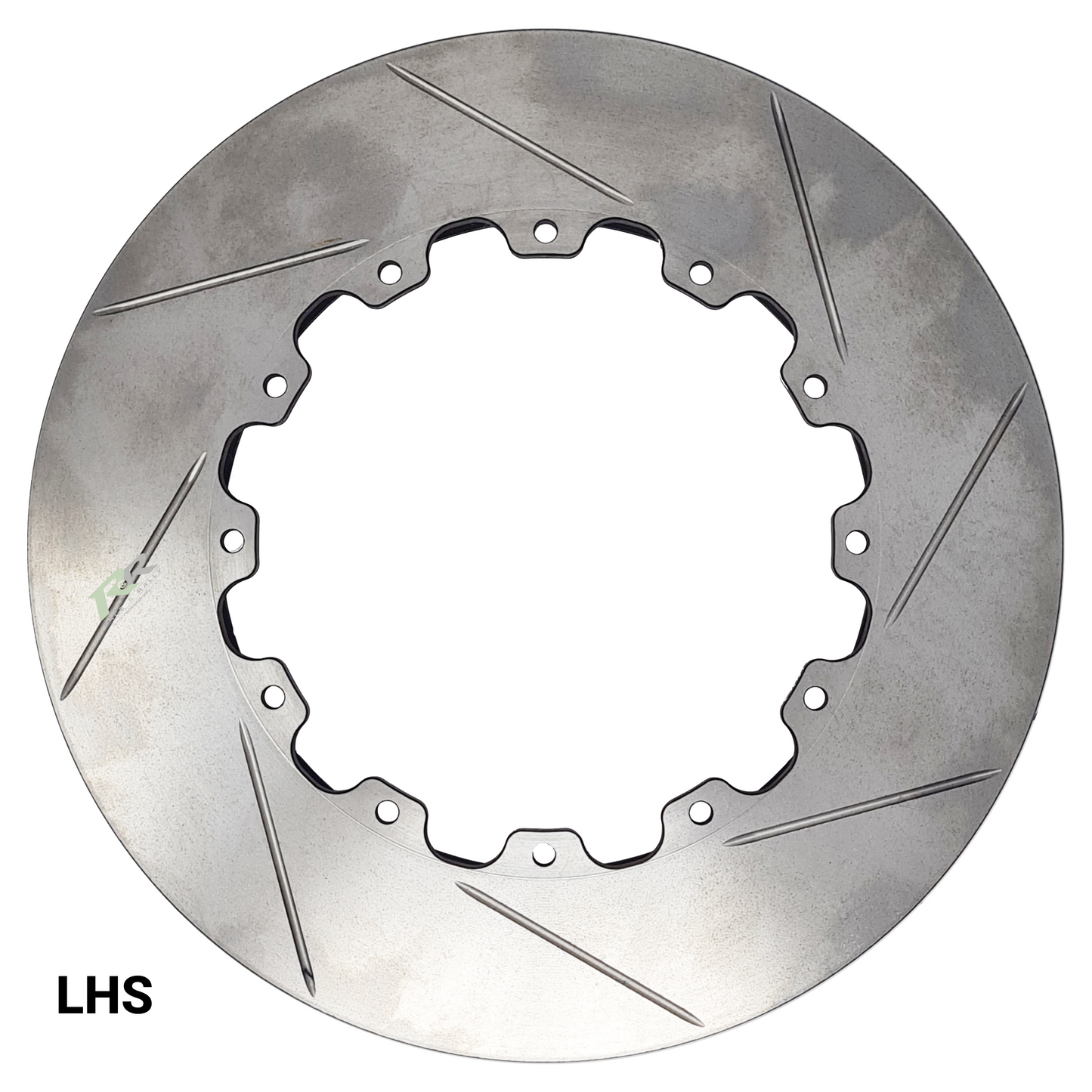

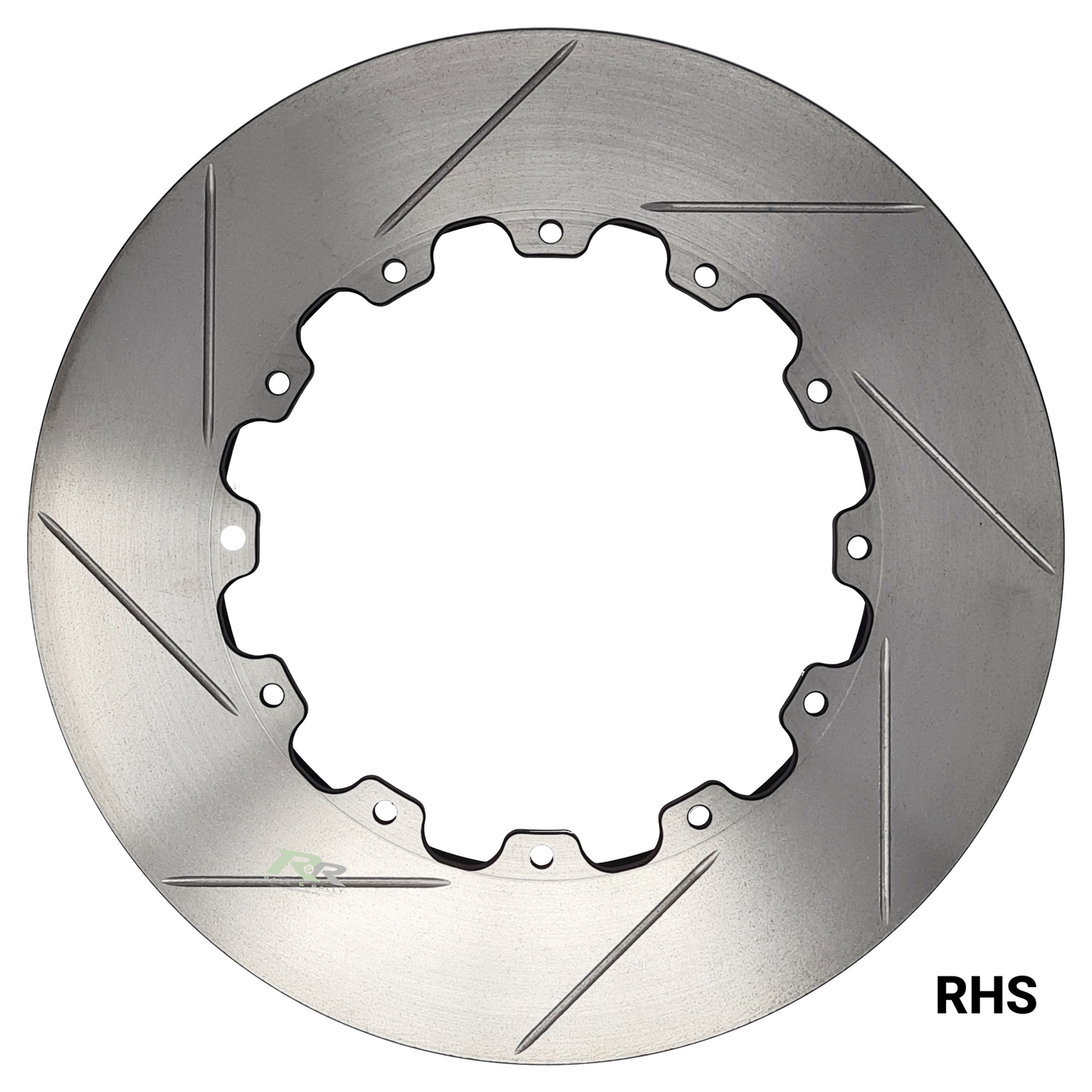

Option 3	Right-Hand Side Left-Hand Side
Notes
