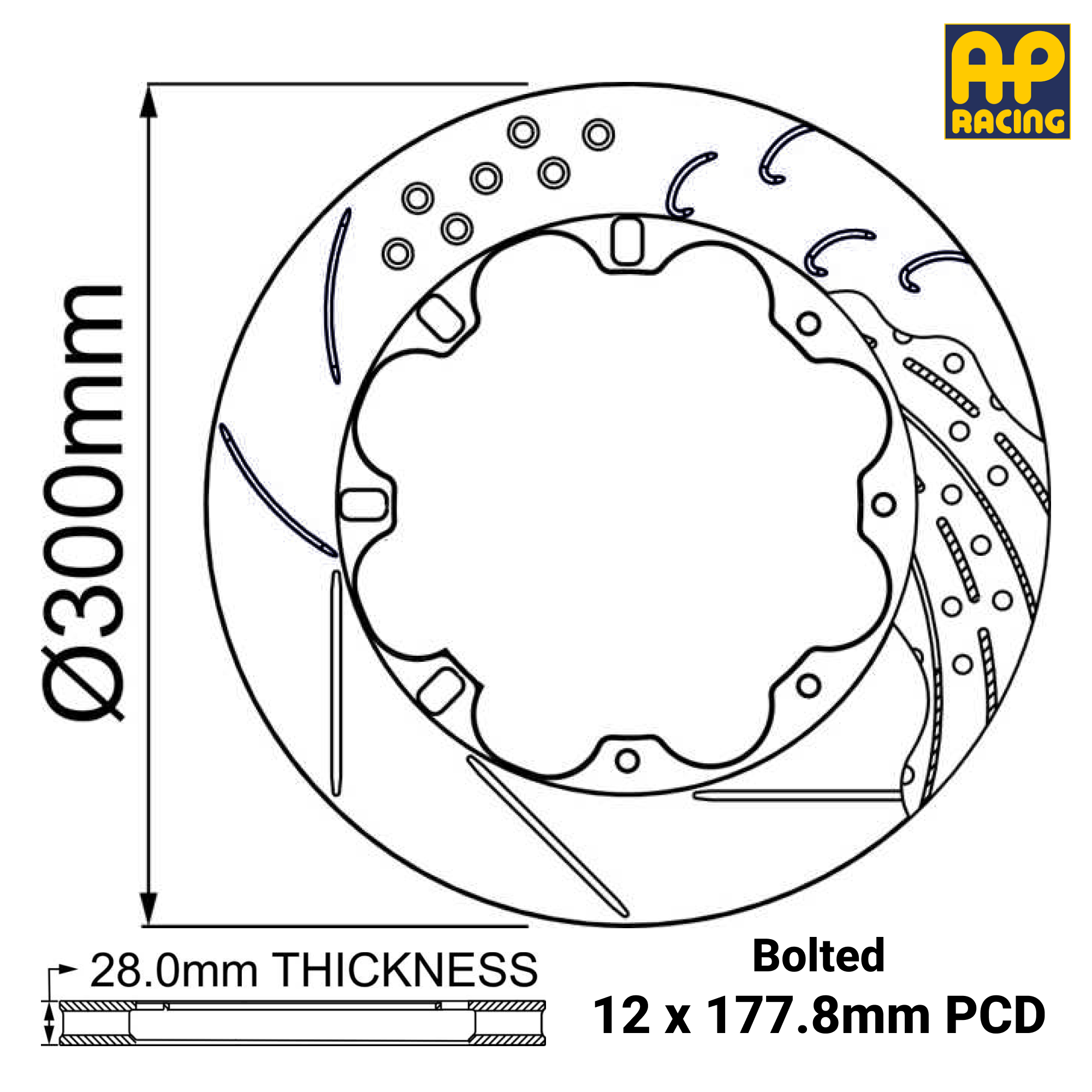

Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted

Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted

CP3837-1004G8

€427.51 €525.84
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter: 300mm
  • Thickness: 28.0mm
  • Mounting P.C.D.:
  • 177.8mm
  • Mounting Type: Bolted - 12 Bolt
  • Eye Diameter: 203.2mm
  • Inside Flange Diameter: 164.0mm
  • Mounting Flange Thickness: 5.6mm
  • Max Pad Depth: 46.0mm
  • No. of Vanes: 36
  • Air Gap: 15.25mm
View full details

Brake Disc Specifications:

 Outside Diameter Ø300mm
Thickness 28.0mm
P.C.D. 177.8mm
Fixing Type Bolted - 12 Bolt
Eye Diameter 203.2mm
Inside Flange Diameter 164.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth D46
No. of Vanes 36
Air Gap 15.25mm
Weight (Kg) 4.65
Face Types Available G8/P
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP3837-1004G8, CP3837-1005G8
