• Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 181.0mm PCD - Race and Rally
1 1

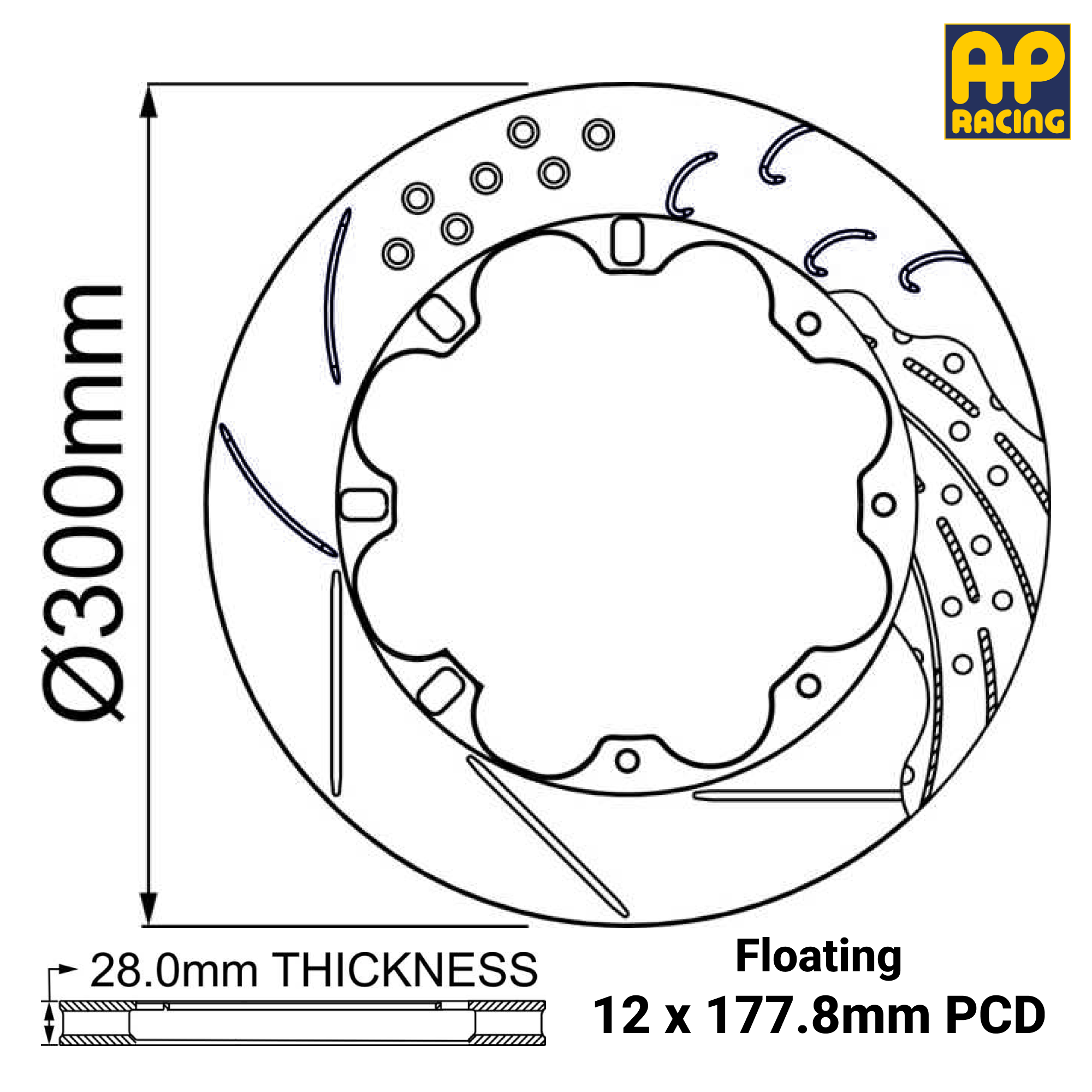

Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Floating

Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Floating

CP3580-1196RA

€528.08 €649.54
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 300mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 197.2mm
Inside Flange Diameter 154.0mm
Mounting Flange Thickness 5.62mm
Max Pad Depth 50.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

300mm x 28.0mm Brake Disc Dimensions

Outside Diameter 300mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 197.2mm
Inside Flange Diameter 154.0mm
Mounting Flange Thickness 5.62mm
Max Pad Depth 50.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available RA - 'J' Hook Design (along outer diameter)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
RA - 'J' Hook Design (along outer diameter) / Right-Hand Side CP3580-1196RA
RA - 'J' Hook Design (along outer diameter) / Left-Hand Side CP3580-1197RA

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
