• Ø300mm x 30.0mm Ventilated Brake Disc - 10 x 187.0mm PCD - Race and Rally
1 1

Ø300mm x 30.0mm Ventilated Brake Disc - 10 x 187.0mm PCD - Floating

Ø300mm x 30.0mm Ventilated Brake Disc - 10 x 187.0mm PCD - Floating

CP5154-124CG8

€462.86 €569.32
Sale Sold out

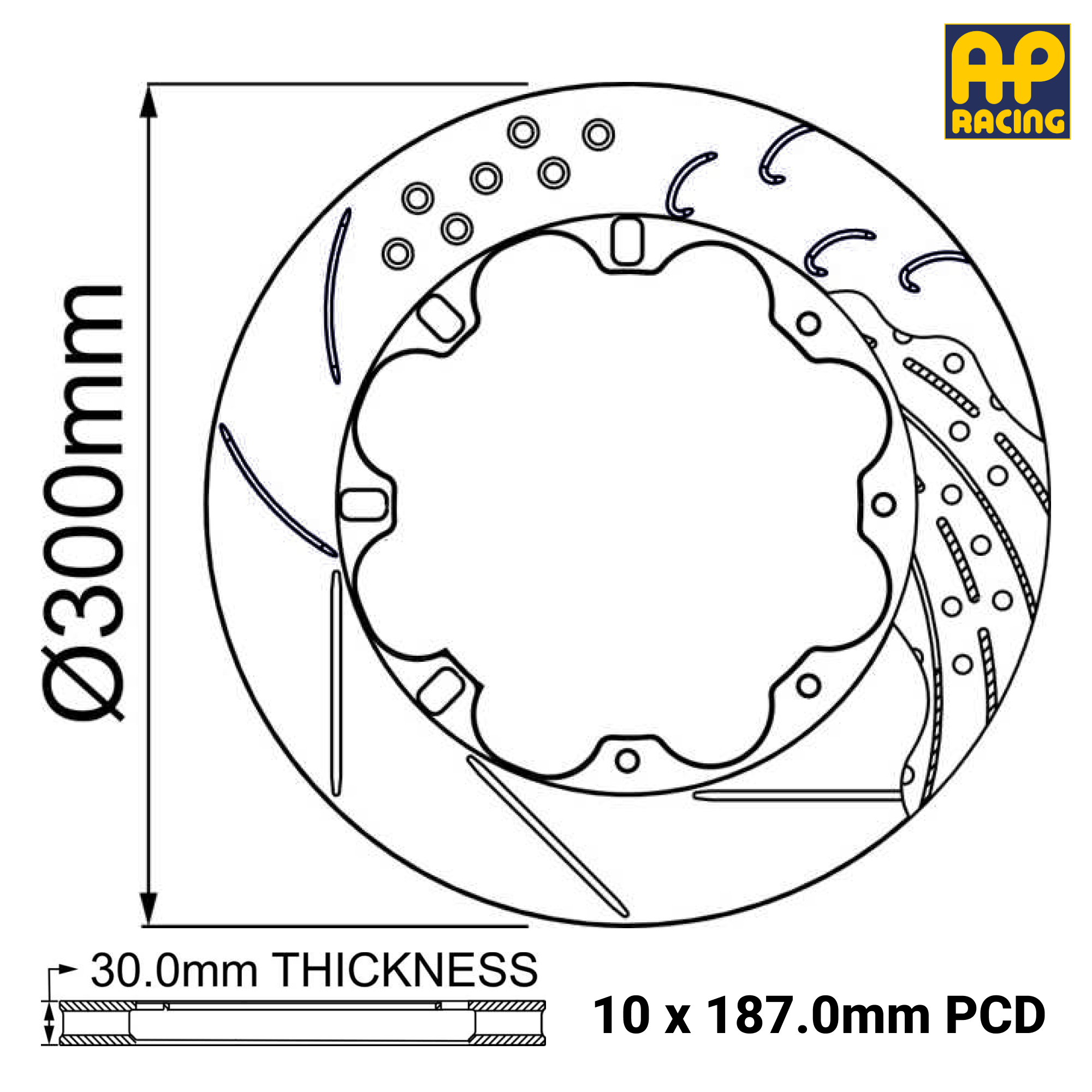

▶ Brake Disc Dimensions
Outside Diameter 300mm
Thickness 30.0mm
Mounting P.C.D 187.0mm
Mounting Type Floating - 10 Bobbins
Eye Diameter 205.1mm
Inside Flange Diameter 161.5mm
Mounting Flange Thickness 5.42mm
Max Pad Depth 46.0mm
No. of Vanes 54
Air Gap 20.5mm
View full details

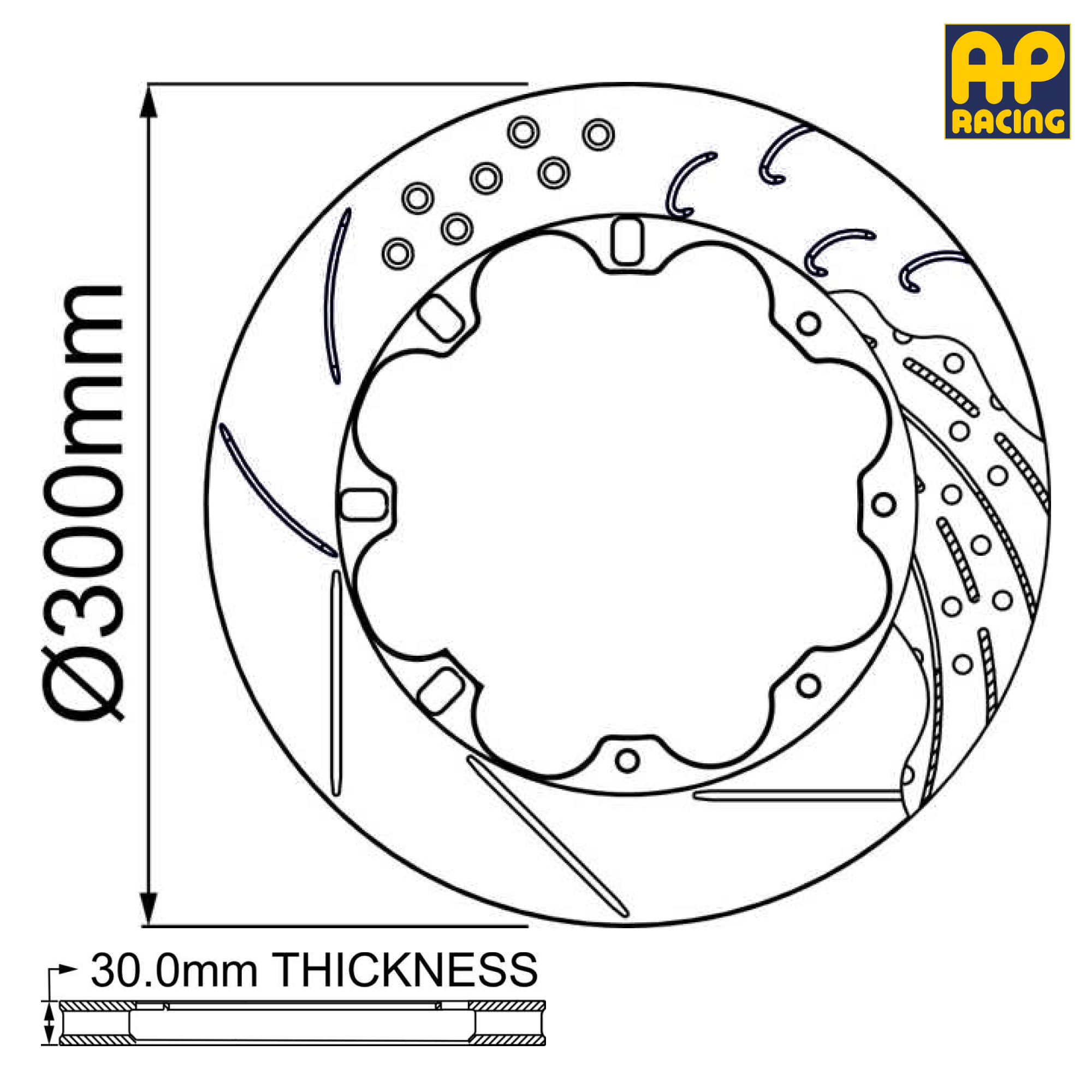

300mm x 30.0mm Brake Disc Dimensions

Outside Diameter 300mm
Thickness 30.0mm
Mounting P.C.D 187.0mm
Mounting Type Floating - 10 Bobbins
Eye Diameter 205.1mm
Inside Flange Diameter 161.5mm
Mounting Flange Thickness 5.42mm
Max Pad Depth 46.0mm
No. of Vanes 54
Air Gap 20.5mm
Face Types Available CG8 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side
Notes Bobbin CP2494-1341MD

Brand AP Racing
Option SKU Barcode
CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP5154-124CG8
CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP5154-125CG8
