Goodridge Brake/Clutch JIC/UNF Fittings to suit Goodridge -03/-04 sized 600 Series brake hose. Each fitting is supplied with the necessary olive and socket to aide fitment to the Goodride Brake Hose.

Goodridge JIC/UNF fittings are available in a range Materials and a range of Angles (Degrees) making it possible to fit to hard to access cylinders and pedal boxes.

CONSTRUCTION

• Suitable for Smoothbore Teflon (PTFE) Hosing Only**
• 600 Series brake/clutch fittings allow for all time alignment with their 360-degree swivel ends.
• They are available in various sizes and material types (See part numbers below)
• Each fiting contains an Olive which must be fitted between the Steel Braid and the Teflon Lining so it can be compressed by the socket:

REPLACEMENT SOCKETS & OLIVES

• 1205 - Replacement Olive
• 1206 - Replacement Socket

APPLICATIONS

• Brake
• Clutch

COMPATIABLE HOSING

• 600 Series Hosing
• 600 Series Colour-Flexed Hosing

6046 - PART NUMBERS

GOODRIDGE MATERIAL KEY:

• B: Brass

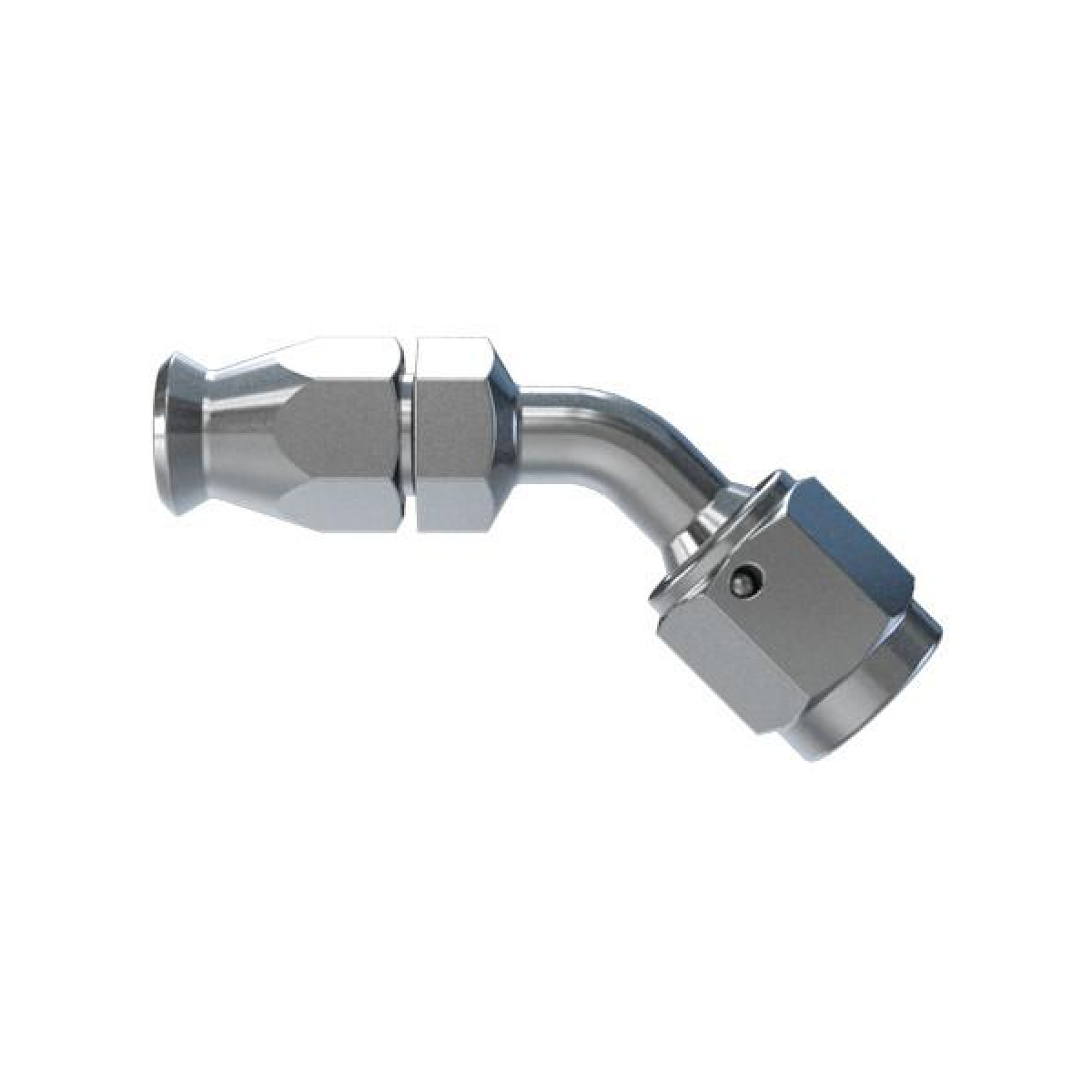

• C: Stainless steel
• CH: Crome plated
• D: Anodised Aluminium

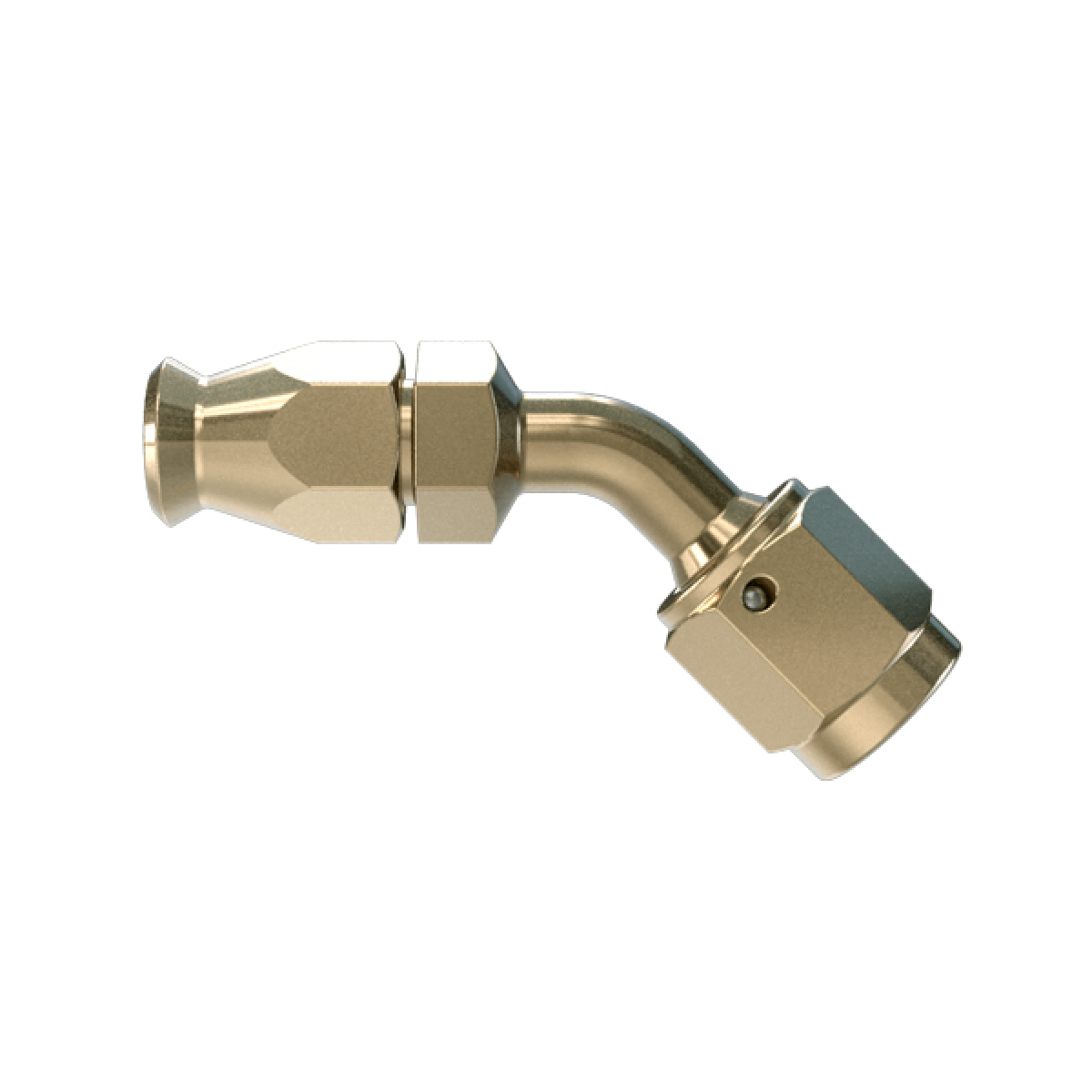

• P: Zinc plated carbon steel
• Z1: Silver plated carbon steel
