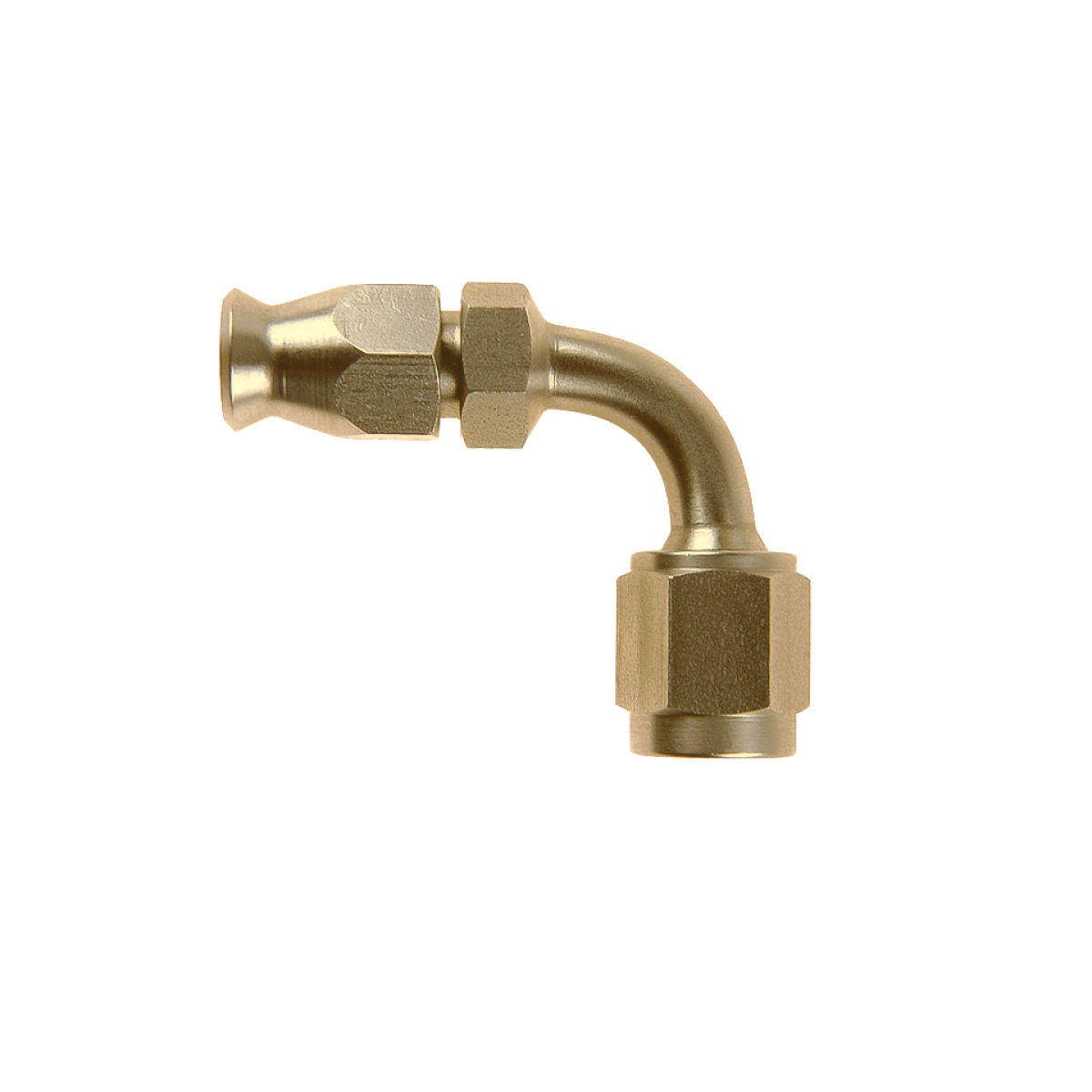

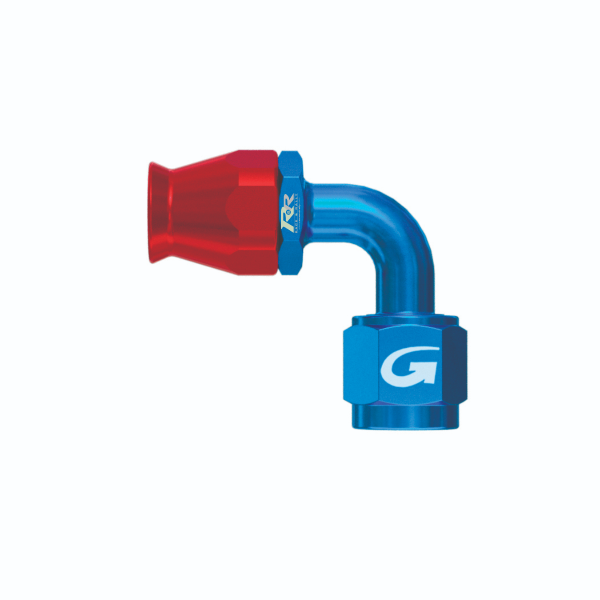

90° Swept Tube Female Concave Seat

90° Swept Tube Female Concave Seat

6091-03D

€63.33 €77.90
Sale Sold out
  • Feature Icon 90° Swept Tube
  • Feature Icon Swivel Fitment
  • Feature Icon Female Concave Seat
  • Feature Icon Range of Material Options Available
Hose Dash Size
JIC/UNF Thread
Material: Anodised Aluminium

View full details

Goodridge Brake/Clutch JIC/UNF Fittings to suit Goodridge -03/-04 sized 600 Series brake hose. Each fitting is supplied with the necessary olive and socket to aide fitment to the Goodridge Brake Hose.

Goodridge JIC/UNF fittings are available in a range Materials and a range of Angles (Degrees) making it possible to fit to hard to access cylinders and pedal boxes.

CONSTRUCTION

  • Suitable for Smoothbore Teflon (PTFE) Hosing Only**
  • 600 Series brake/clutch fittings allow for all time alignment with their 360-degree swivel ends.
  • They are available in various sizes and material types (See part numbers below)
  • Each fiting contains an Olive which must be fitted between the Steel Braid and the Teflon Lining so it can be compressed by the socket:

Assembly

REPLACEMENT SOCKETS & OLIVES

APPLICATIONS

  • Brake
  • Clutch

COMPATIABLE HOSING

6091 - PART NUMBERS

6091

GOODRIDGE MATERIAL KEY:

  • B: Brass
  • C: Stainless steel
  • CH: Crome plated
  • D: Anodised Aluminium
  • P: Zinc plated carbon steel
  • Z1: Silver plated carbon steel

SMOOTHBORE PTFE HOSE ASSEBMLIES:
A PTFE Compatiable fitting can be indetifed by a Flared Socket which also contains an Olive. Quite simply, the fitter must  place the olive between the PTFE lining and the outer stainless steel braid, so when the socket is tightened, the olive compresses the hose to create a very effective seal suitable for high pressure fluids. The compressed olive ensures that the assmebly is vapour free making it suitable for the interior cockpit of a car.
These fittings are reusable so that they can be used time and time again but will require replacement olives. If the hose itself is damaged, just disassemble, clean, lubricate and reassemble with a new olive and a new piece of hose.

Brand:

Goodridge

Manufacturer Part Number:

6091-03D, 6091-03C, 6091-03P, 6091-04D, 6091-04C, 6091-04P
