Aluminium Alloy Base Plate to Suit Tilton 72-603 Pedal Box
Aluminium Alloy Base Plate to Suit Tilton 72-603 Pedal Box
SKU:72-603BP
Regular price
€100.00
€123.00
-
WELD-ON FLANGE NUT FIXING -
ANODISED ALUMINIUM MATERIAL
-
130MM ADJUSTMENT
-
SUITED FOR 72-603 PEDAL BOX
WELD-ON FLANGE NUT FIXING

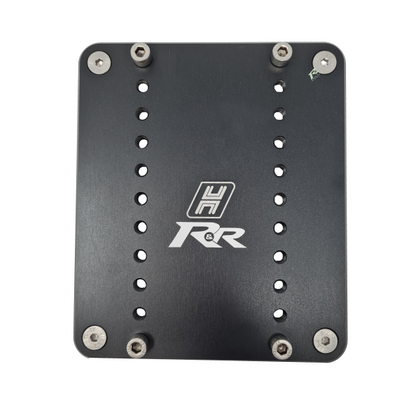

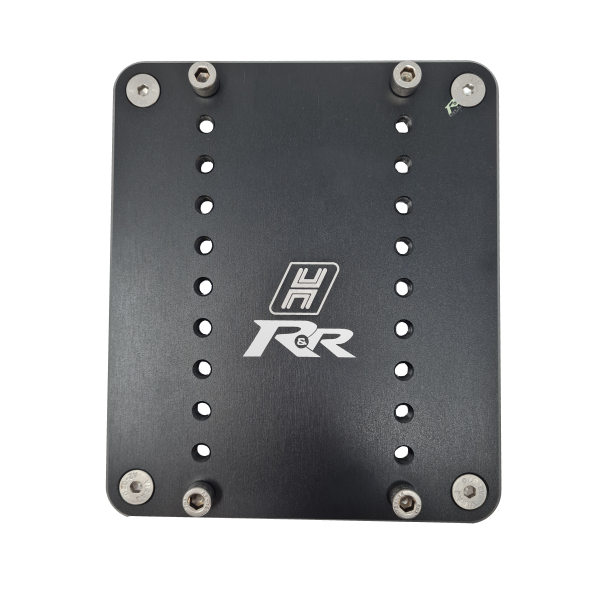

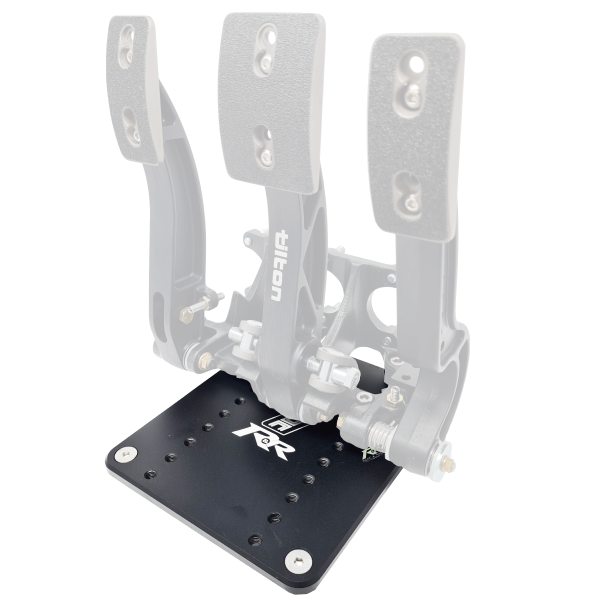

Anodised aluminum alloy base plate designed to suit Tilton 72-603 pedal box.
TECHNICAL SPECIFICATIONS:
- Plate thickness: 8mm
- Maximum 130mm adjustment
INCLUDED WITH BASE PLATE:
- 8x M8x1.25 Pedal Box fixing bolts
- 4x M8x1.25 Flange weld nuts
- 4x M8x1.25 Countersunk fixing bolts to fix the plate to flange weld nuts
| Brand | Henso |
|---|---|
| SKU | Barcode |
| 72-603BP |
