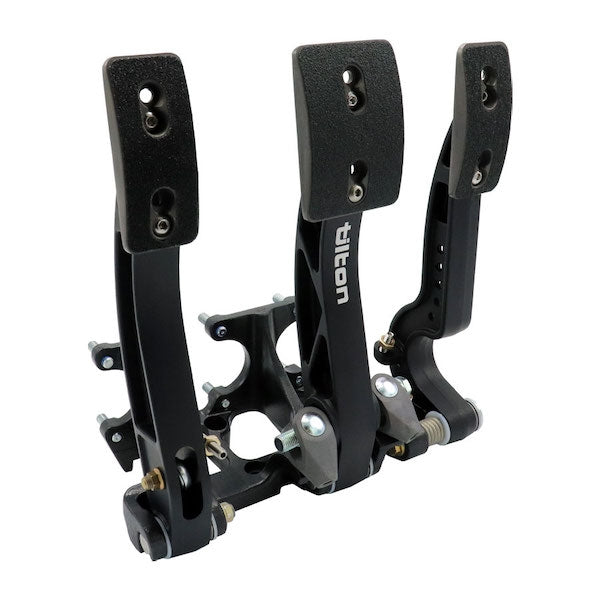

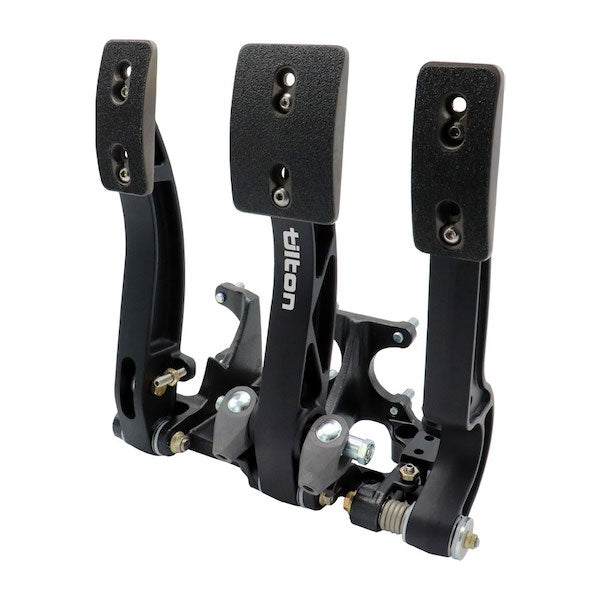

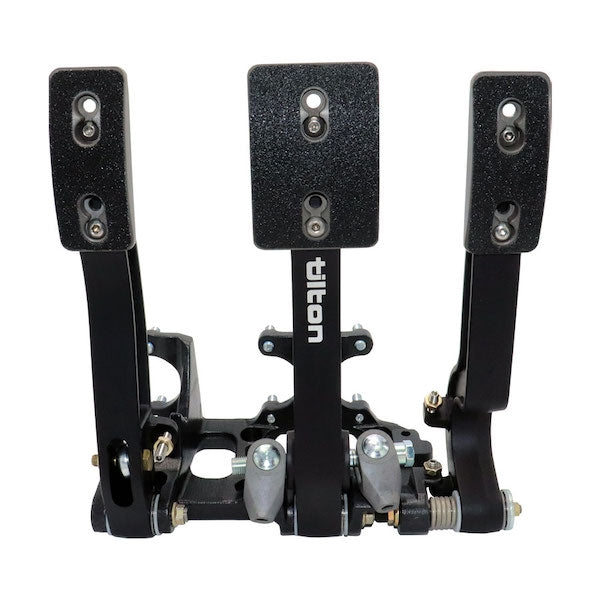

Incorporating technology from the bench mark setting 900-Series, the latest generation of 600-Series pedal assemblies have been engineered to provide excellent performance at competitive prices. The newly redesigned 600-Series pedal assemblies incorporate features such as ramps to prevent balance bar tipping, high-strength 7/16" balance bars, adjustable foot pads and oil-impregnated bronze bushings at pedal pivots. As with all Tilton pedal assemblies, ergonomic principles have been applied to reduce driver fatigue and provide exceptional feedback.

TECHNICAL SPECIFICATIONS:

• Forged aluminum pedals
• Engineered for high rigidity and low weight
• Gripped pedals
• Lightweight and rigid aluminum frame
• Large 7/16”-20 balance bar
• Minimizes flex and provides a solid pedal feel/response
• Aluminum foot pads
• Can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Adjustable pedal ratio: 5.29:1, 5.44:1, 5.61:1, 5.75:1
• Enables fine tuning of braking system
• Low friction oil-impregnated bushing on pedal pivots
• Cylinder mounted on bulkhead side
• Accepts AP Racing Master Cylinders
• CP2623
• CP5623

Compatible Accesories

• Master Cylinder
• CP2623 Master Cylinders - UNF Ports
• CP5623 Master Cylinders - Metric Ports
• 72-603 Throttle Linkage
• Tilton 72-791
• Race & Rally Designed
• 72-798 Cable Clutch Linkage
• Tilton 72-798
• Bias Cable
• Aluminium Alloy Baseplate
