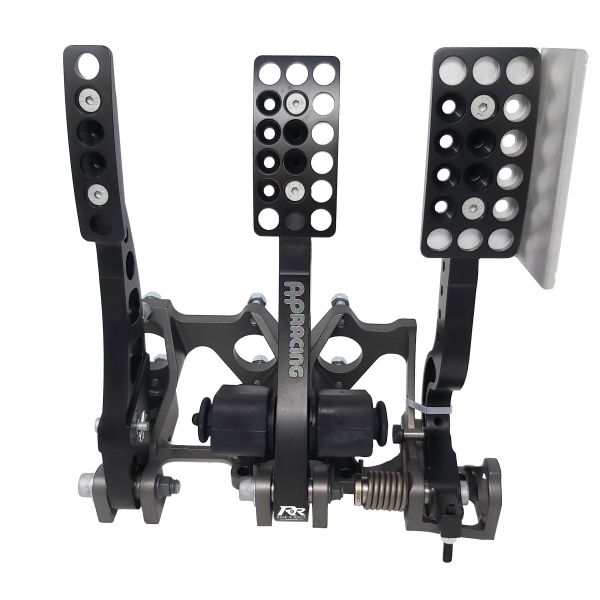

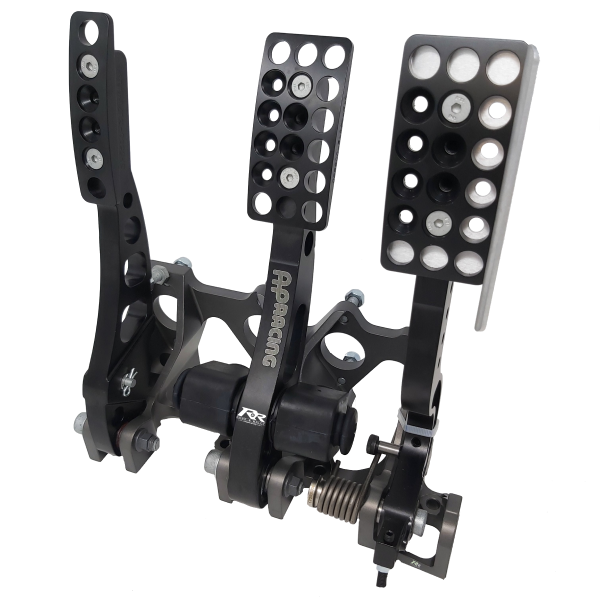

CP5500 family is a generic racing pedal box, designed for comfort and control. The 3 pedal assembly CP5500-605 has been updated to include a new contactless rotary throttle sensor with dual input/output for redundancy. This family of pedal boxes benefits from optimised, machined billet base plate and pedals, with adjustable footpads to alter pedal ratios. The throttle pedal includes travel stops and additional features to aid connection to bell cranks and cables.

All pedal pivots feature ball bearings.The base plate and pedals, together with low friction treatments and a high quality spherical balance bar bearing, set high standards in pedal box efficiency. The CP5500 range is also available in 3, 2 and 1 pedal configurations.

Features

• Optimised, lightweight Aluminium alloy base plate, machined from billet

• Optimised, lightweight billet clutch and brake pedal, with improved twist resistance.

• Forged throttle pedal with additional features:

• Adjustable forward & rear stops

• Return spring
• 9 Different footpad positions
• Side plate

• Optional throttle linkage kit – CP5500-43

• Brake and clutch pedal ratio 4.85:1

• All pedals pivot on ball bearings

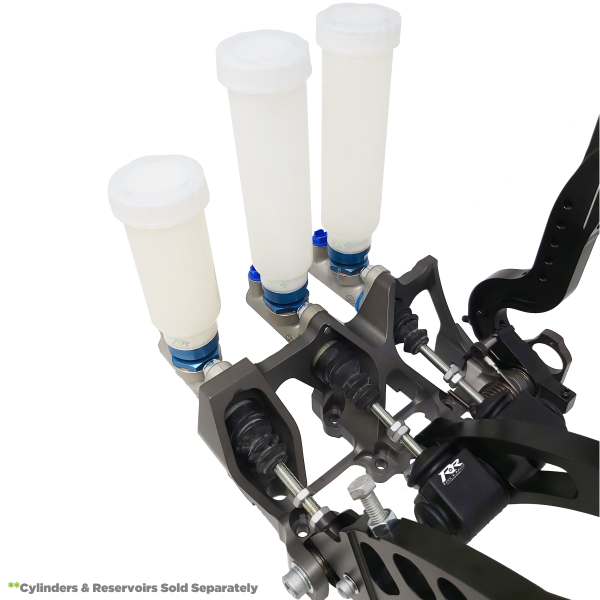

• Suitable master cylinder ranges – CP2623

• Recommended push rod length:

• Brake: 88.0mm
• Clutch: 65.0mm

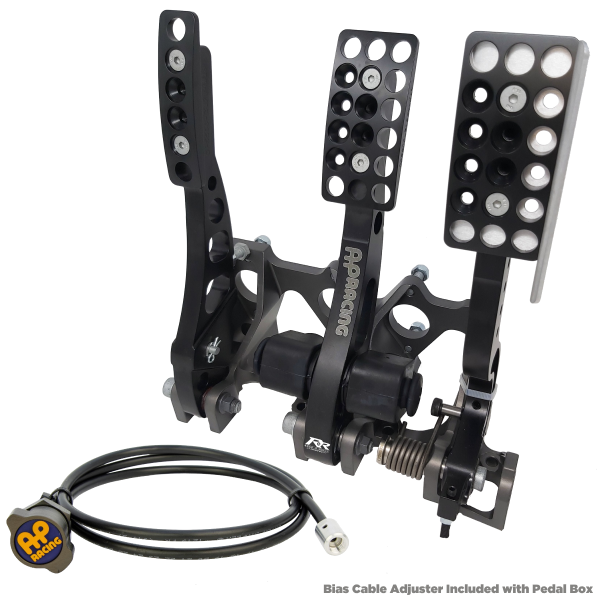

• Adjuster cable CP2905-18 included
• 10mm balance bar, fitted with rubber boots to prevent dirt ingress.
• Supersedes CP5500-505
