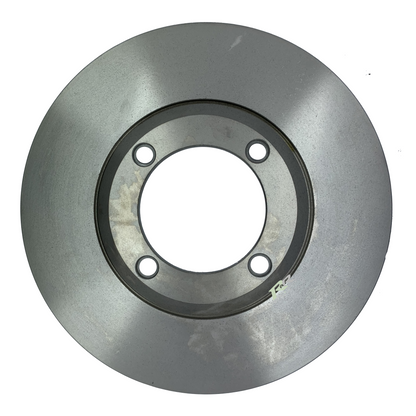

  • Ø264mm x 11.1mm Solid Brake Disc with Integral Bell - 4 x 107.95mm PCD - Race and Rally
1 6

AP 13" Rear Brake Kit with Mechanical Handbrake - CP2383 Caliper - Ø264x11mm Discs

AP 13" Rear Brake Kit with Mechanical Handbrake - CP2383 Caliper - Ø264x11mm Discs

AP2383-264-11-HB-P

€3285.25 €4040.86 €3035.00 €3733.05
Sale Sold out
  • Feature Icon 13" Rear Brake Kit
  • Feature Icon FIA Historic
  • Feature Icon Mechanical Handbrake
  • Feature Icon CP2383 & CP2577 Calipers
  • Feature Icon Ø264mm x 11mm Solid Brake Disc
  • Feature Icon Brake Pads Sold Separetely
Disc Face Type

Optional Extras

Out of stock, contact for leadtime

View full details

Ford Escort MK1 and MK2 FIA Historic 13" brake kit with handbrake calipers. The kit is complete with AP Racing CP2383 2-pot Calipers, CP2577 Handbrake Calipers, Ø264 x 11.0mm AP Racing solid brake discs, and all required hardware for mounting to fully floating Atlas Axle.

Applications:

  • 13" Wheels
  • Fully floating Atlas Axle
  • Handbrake Calipers
  • Ford Escort MKI
  • Ford Escort MKII

Kit Contents:

 Description

Specifications

Part Number

QTY
Caliper 2-Lug Caliper CP2383-12E4
CP2383-13E4 		1
1
Handbrake Caliper 2-Lug Caliper CP2577-3E0HB 2
Brake Caliper Mounting Bracket Weld-on RWR2382-3 1
Handbrake Caliper Mounting Bracket Weld-on RWR2577 1
Brake Disc Ø264x11mm CP2407-129P 2
Caliper Mounting Bolts 7/16" UNF x 1.25"
3/8" UNF x 1.25"		 RNR1030-716-125
RNR1030-38-125		 4
4
Caliper Mounting Washers 7/16" Schnorr Washer
M10 Schnorr Washer		 RNR1016-716
RNR1016-M10		 4
4



Brake Pads (sold separetely)

CP2383 Caliper

Pad Shape CP2372D52
CP2372D52 Brake Pad Set - APF403 Compound - Race and Rally
Pad Area 27.4cm²
Pad Depth 42.9mm
Thickness 14.4mm



CP2577 Caliper

Pad Shape

CP2399D43

CP2399D43 Brake Pad Set - (H) DS2500 Compound - Race and Rally
Pad Area 27.4cm²
Pad Depth 42.9mm
Thickness 14.4mm



Applications:


Make Model Year
Ford Escort
Brand AP Racing
Option SKU Barcode
P - Plain Face AP2383-264-11-HB-P
