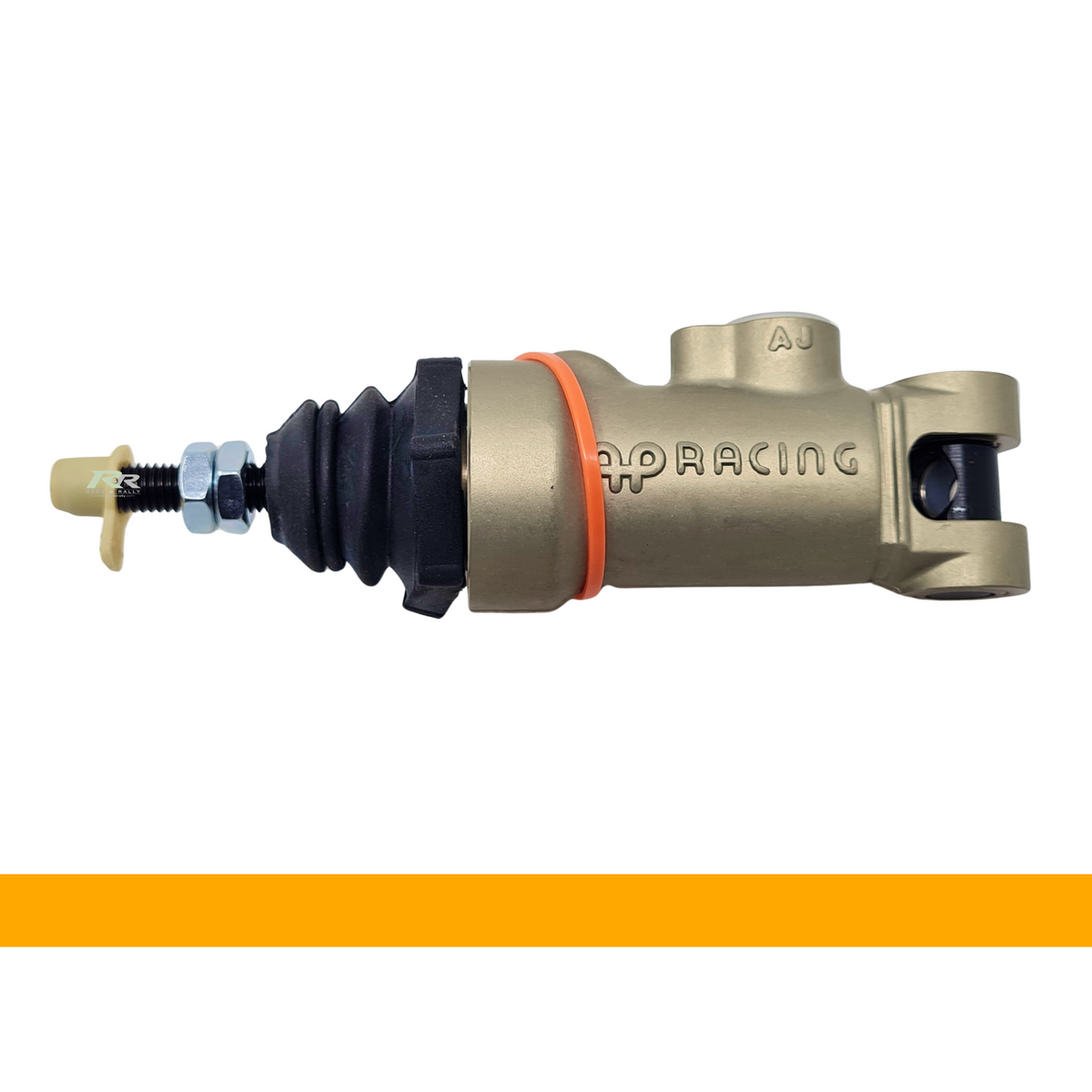

CP6467 - Pull Type Trunnion Mounted Master Cylinder with Centre Valve Configuration

CP6467 - Pull Type Trunnion Mounted Master Cylinder with Centre Valve Configuration

CP6467-149PRME:S

€516.48 €635.27
Sale Sold out
  • Feature Icon Short Travel to cut-off
  • Feature Icon Low profile inlet & Outlet
  • Feature Icon Pull Type Design
  • Feature Icon M8 pushrod
  • Feature Icon Needle bearing Trunnion mounted
  • Feature Icon Centre Valve configuration available
  • Feature Icon Optional 'Knock Back' plug
Bore Diameter
Centre Valve Configuration
View Docs

Out of stock, contact for leadtime

View full details

CP6467 - Pull Type Trunnion Mounted Master Cylinder with Centre Valve Configuration
[Pull Type]

This cylinder operates on the pull rather than push principle of other cylinders.
It has a built in trunnion mounted in needle roller bearings for direct mounting to the balance bar, virtually identical to CP6465 family but with a centre valve configuration.

General Information: Centre Valve configuration, helps to improve cylinder performance and seal durability.

Features:

  • For use in ABS and high pressure applications
  • Forged aluminium alloy body
  • Optional 'Knock Back' system available
    • Part number suffix = 'K'
  • Low profile inlet and outlet
  • Extra short travel to cut-off
  • Choice of 9 bore sizes
  • Hydraulic threads are metric
  • M8 x 1.25 Pushrods
  • Use with CP5520-2, CP5520-3 or CP5520-4 Trunnion type balance bar or purpose designed pedal box (CP5596)
  • Rubber boots fitted as standard

Important Note:

This Master Cylinder has been designed to incorporate an anti-knockback device to reduce pad knockback. The plug can be replaced with a sleeve to revert the master cylinder to a standard centre valve ABS type.

Master cylinders with the anti-knockback plugs have suffix ':K' and cylinders with sleeves have suffix ':S'

The anti-knockback device allows pressure to build up between the caliper and master cylinder during a representative knockback event.

Master Cylinder Identification:

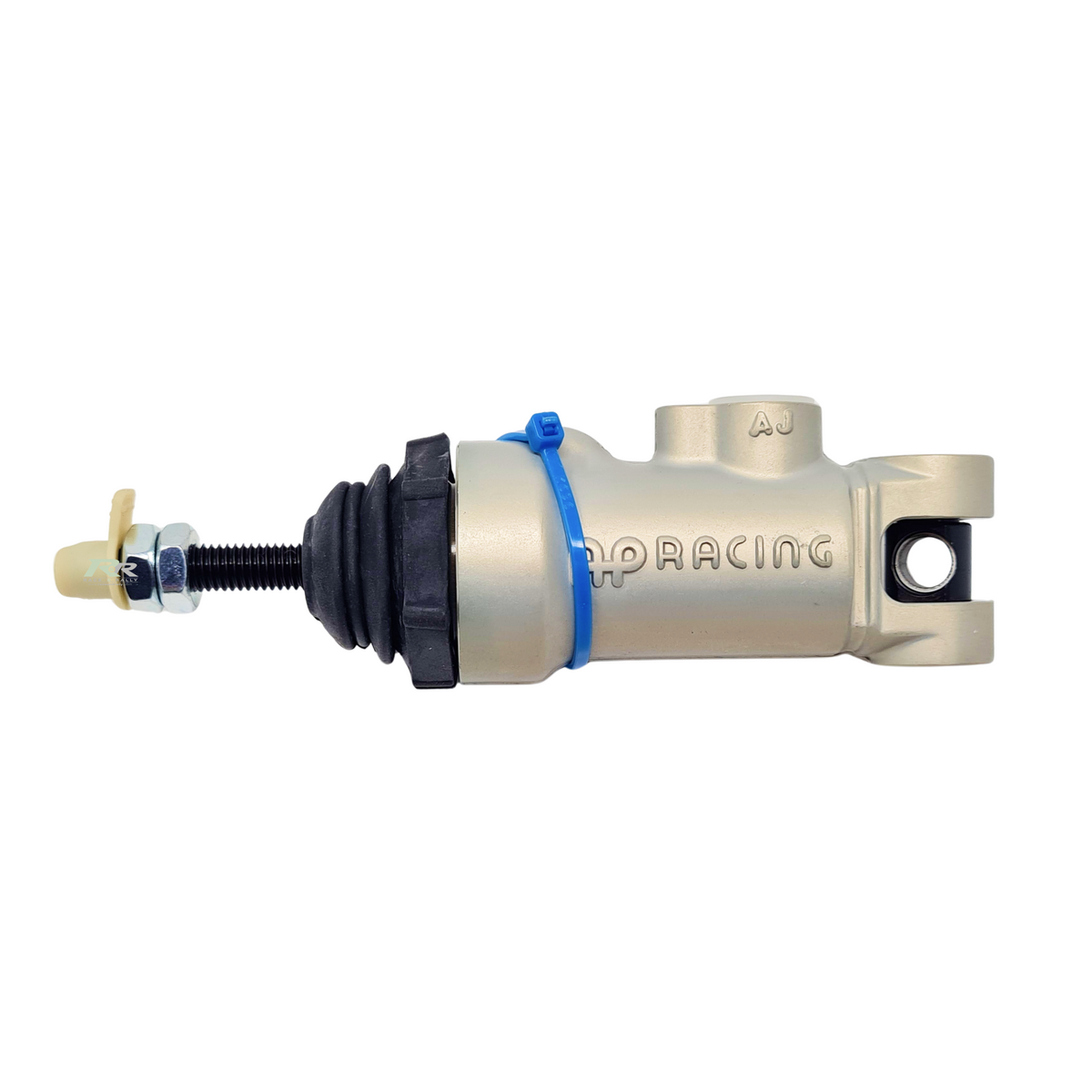

All AP Racing master cylinders have their part number nominal bore size laser marked on the body together with batch codes enabling full manufacturing traceability.  All master cylinders also have a coloured tie wrapped around the body for quick visual identification of bore size.

Technical Details:

Weight 0.24 - 0.28Kg (0.53 - 0.61lbs)
Full Stroke 25.40mm (1.00")
Travel to Cut-Off 0.48 to 0.63mm (0.19" to 0.25")
Hydraulic Thread
- Inlet 'Push-in' (see below options)
- Outlet M10 x 1.00
Push Rod Threads
- PRME M8 x 1.25


CP6465 Part Numbering

 Available Bore Sizes

Cable Tie Colour

Part Number

Repair Kit
14.9mm (0.587")  BLACK  &  RED  CP6467-149PRME:S
CP6467-149PRME:K		 CP6467-149RK
16.2mm (0.638")  BLACK  CP6467-162PRME:S
CP6467-162PRME:K		 CP6467-162RK

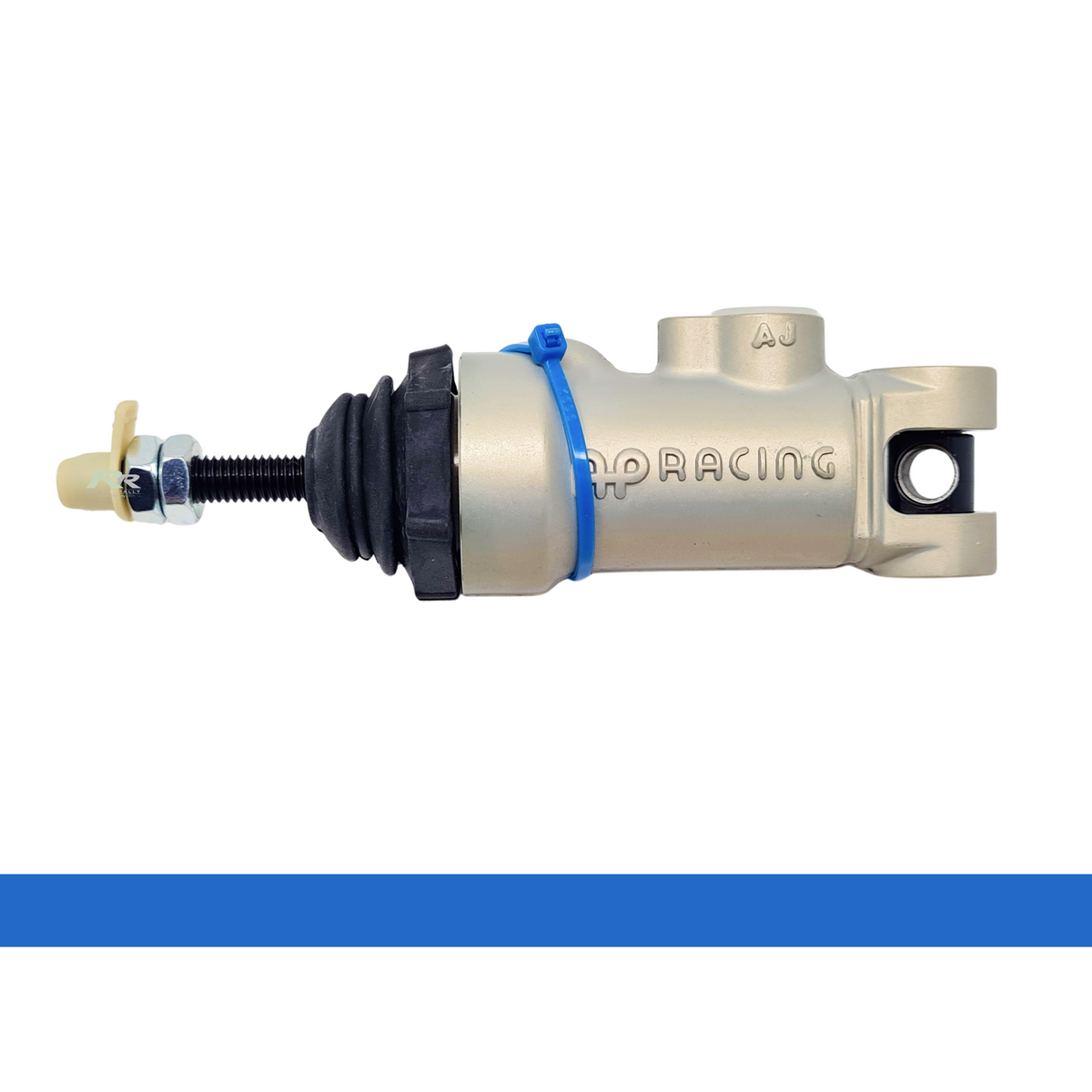

17.3mm (0.681")  BLUE  CP6467-173PRME:S
CP6467-173PRME:K		 CP6467-173RK
18.8mm (0.740")  GREEN  CP6467-188PRME:S
CP6467-188PRME:K		 CP6467-188RK
20.2mm (0.795")  ORANGE  CP6467-202PRME:S
CP6467-202PRME:K		 CP6467-202RK
21.2mm (0.835")  RED &  ORANGE  CP6467-212PRME:S
CP6467-212PRME:K		 CP6467-212RK
21.8mm (0.858")  RED  CP6467-218PRME:S
CP6467-218PRME:K		 CP6467-218RK
22.4mm (0.882")  RED  &  WHITE  CP6467-224PRME:S
CP6467-224PRME:K		 CP6467-224RK
23.7mm (0.933")  WHITE  CP6467-237PRME:S
CP6467-237PRME:K		 CP6467-237RK
25.4mm (1.00")  YELLOW  CP6467-254PRME:S
CP6467-254PRME:K		 CP6467-254RK



CP6467 Reference Dimensions Details

Optimum pull type cylinder design means that to use standard seal size and bore sizes, there would be a slight variation from standard cylinders. The sizes were also adjusted to give equal steps between the different sizes.

The table below shows the master cylinder part numbers and a bore size that would reflect a push type cylinder, the corrected bore size. The part number also reflects the cylinder size.



Reference Dimensions


Part Number

Corrected Bore Size

Bore Ø
(mm)

Piston Ø
(mm)

Area
(mm²)

CP6467-149PRME
 14.9mm (0.587") 19.05 12.00 173.80
CP6467-162PRME 16.2mm (0.638") 19.05 10.00 206.48
CP6467-173PRME 17.3mm (0.681") 22.23 14.00 234.01
CP6467-188PRME 18.8mm (0.740") 22.23 12.00 276.73
CP6467-202PRME 20.2mm (0.795") 22.23 9.25 320.75
CP6467-212PRME 21.2mm (0.835") 25.40 14.00 352.77
CP6467-218PRME 21.8mm (0.858") 25.40 13.00 373.98
CP6467-224PRME 22.4mm (0.882") 25.40 12.00 395.49
CP6467-237PRME 23.7mm (0.933") 25.40 9.25 439.51
CP6467-254PRME 25.4mm (1.00") 26.99 9.25 504.93


Additional Parts

Description

Part Number

Special Inlet Fittings Designed to suit Goodridge 910 Series hose. Contact us for custom hose assembly from our Goodridge G-Tech Centre

- Straight CP6465-11
CP6465 - Swaged "Plug-in" Inlet Connections - Race and Rally
- 75° Angle CP6465-10
CP6465 - Swaged "Plug-in" Inlet Connections - Race and Rally
- 90° Angle CP6465-12
CP6465 - Swaged "Plug-in" Inlet Connections - Race and Rally
Ø5/16" EPDM Hose

- 12" Length CP6614-103

- 24" Length
 CP6614-106

- 72" Length
 CP6614-102


Brand AP Racing
Option SKU Barcode
14.90mm | (0.587") / Standard CP6467-149PRME:S
14.90mm | (0.587") / Anti-Knockback Plug Fitted CP6467-149PRME:K
16.20mm | (0.638") / Standard CP6467-162PRME:S
16.20mm | (0.638") / Anti-Knockback Plug Fitted CP6467-162PRME:K
17.30mm | (0.681") / Standard CP6467-173PRME:S
17.30mm | (0.681") / Anti-Knockback Plug Fitted CP6467-173PRME:K
18.80mm | (0.740") / Standard CP6467-188PRME:S
18.80mm | (0.740") / Anti-Knockback Plug Fitted CP6467-188PRME:K
20.20mm | (0.795") / Standard CP6467-202PRME:S
20.20mm | (0.795") / Anti-Knockback Plug Fitted CP6467-202PRME:K
21.20mm | (0.834") / Standard CP6467-212PRME:S
21.20mm | (0.834") / Anti-Knockback Plug Fitted CP6467-212PRME:K
21.80mm | (0.858") / Standard CP6467-218PRME:S
21.80mm | (0.858") / Anti-Knockback Plug Fitted CP6467-218PRME:K
22.40mm | (0.882") / Standard CP6467-224PRME:S
22.40mm | (0.882") / Anti-Knockback Plug Fitted CP6467-224PRME:K
23.70mm | (0.933") / Standard CP6467-237PRME:S
23.70mm | (0.933") / Anti-Knockback Plug Fitted CP6467-237PRME:K
25.40mm | (1.00") / Standard CP6467-254PRME:S
25.40mm | (1.00") / Anti-Knockback Plug Fitted CP6467-254PRME:K


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
