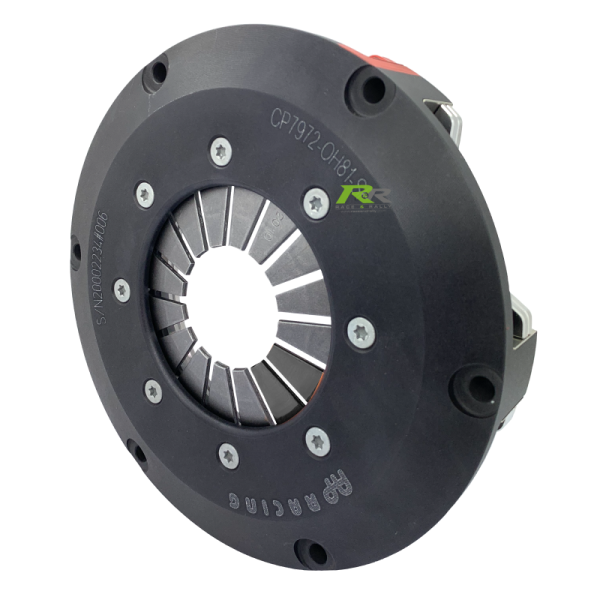

  • CP7972-C
  • CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle - Race and Rally
  • CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle - Race and Rally
1 5

CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle

CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle

CP7972-OH81-SF

€1029.84 €1266.70
Sale Sold out
  • Feature Icon Ø184mm
  • Feature Icon Twin Plate
  • Feature Icon Low Height
  • Feature Icon Cerametallic Paddle
  • Feature Icon Push Type
  • Feature Icon Stepped / Flat Flywheel Fixing
  • Feature Icon Lightweight Aluminium Cover
  • Feature Icon Torque Range 421 - 636Nm
  • Feature Icon [Drive Plates Sold Separately]
Flywheel Fixing
Torque Capacity
Material

View Docs View full details

CP7972 - Ø184mm Low Height Twin Plate Cerametallic Paddle Clutch

Typical Applications:

Features:

  • Twin plate
  • Push Type
  • Low stack height
    • uses 6mm drive plates
  • Stepped or Flat Flywheel Fixing
  • 6 bolt, one piece cover and lugs
    • machined from aluminium alloy. Allows dust and debris to escape.
  • Black hard anodised
  • Stainless steel wear plates fitted
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702

Part Numbers:

  • Stepped Flywheel:
    • CP7972-CH81-SF
    • CP7972-OE81-SF
    • CP7972-OH81-SF
  • Flat Flywheel:
    • CP7972-CH81-FF
    • CP7972-OH81-FF

Technical Specifications:

 Torque Capacity - Nm (lbs/ft)
  • CP7972-CH81-SF/FF - 636 (469)
  • CP7972-OE81-SF - 521 (383)
  • CP7972-OH81-SF/FF - 421 (310)
Release Load - Max Peak New - daN
  • CP7972-CH81-SF/FF - 350
  • CP7972-OE81-SF - 240
  • CP7972-OH81-SF/FF - 240
Release Load - Max Peak Worn - daN
  • CP7972-CH81-SF/FF - 440
  • CP7972-OE81-SF - 330
  • CP7972-OH81-SF/FF - 330
Set-up Height - New
  • CP7972-CH81-SF/FF - 33.49 / 30.95mm
  • CP7972-OE81-SF - 34.60 / 31.62mm
  • CP7972-OH81-SF/FF - 34.12 / 31.57mm
Set-up Height - Max Worn
  • CP7972-CH81-SF/FF - 36.08mm
  • CP7972-OE81-SF - 37.68mm
  • CP7972-OH81-SF/FF - 36.72mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates) 2.65 Kg
Assembly Inertia (Excluding Drive Plates) 0.0165 Kg m²
Recommended Release Bearing
Drive Plate Options
  • New = 6.00mm
  • Worn = 5.63mm

Spare Parts:
Main Pressure Plate CP7972-105
Intermediate Pressure Plate: CP3592-106
Wear Clips



Applications

 AP Racing Applications
CP7972-CH81-SF
  • Skoda Fabia S2000 5JT141026A
CP7972-OH81-SF
  • 3MO ETV-R Sequential Gearbox
CP7972-OH81-FF
  • Peugeot 207 S2000
Brand AP Racing
Option SKU Barcode
Stepped Fywheel / 421 Nm (310 lbft) / Aluminium CP7972-OH81-SF
Stepped Fywheel / 519 Nm (383 lbft) / Aluminium CP7972-OE81-SF
Stepped Fywheel / 636 Nm (469 lbft) / Aluminium CP7972-CH81-SF
Flat Flywheel / 421 Nm (310 lbft) / Aluminium CP7972-OH81-FF
Flat Flywheel / 636 Nm (469 lbft) / Aluminium CP7972-CH81-FF
