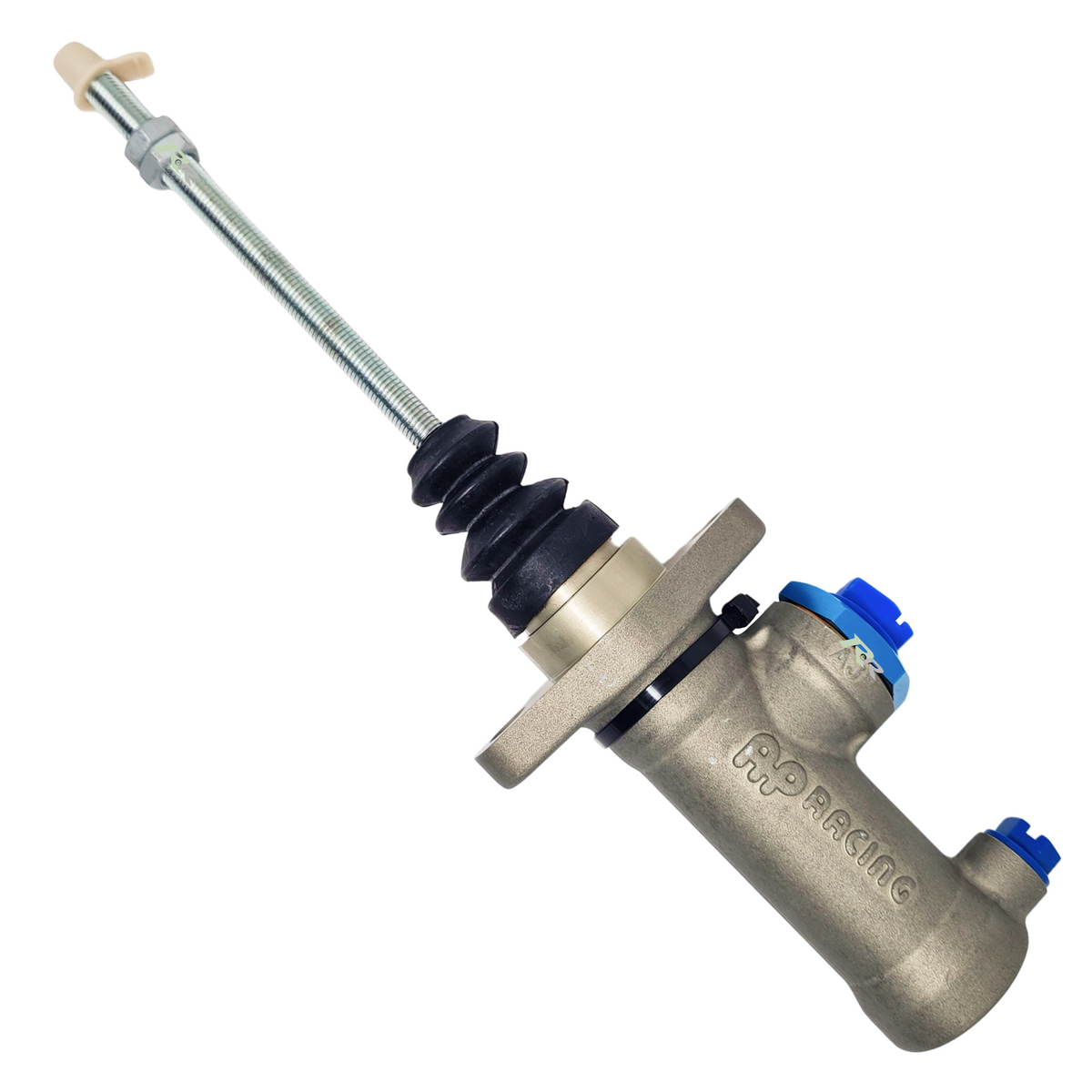

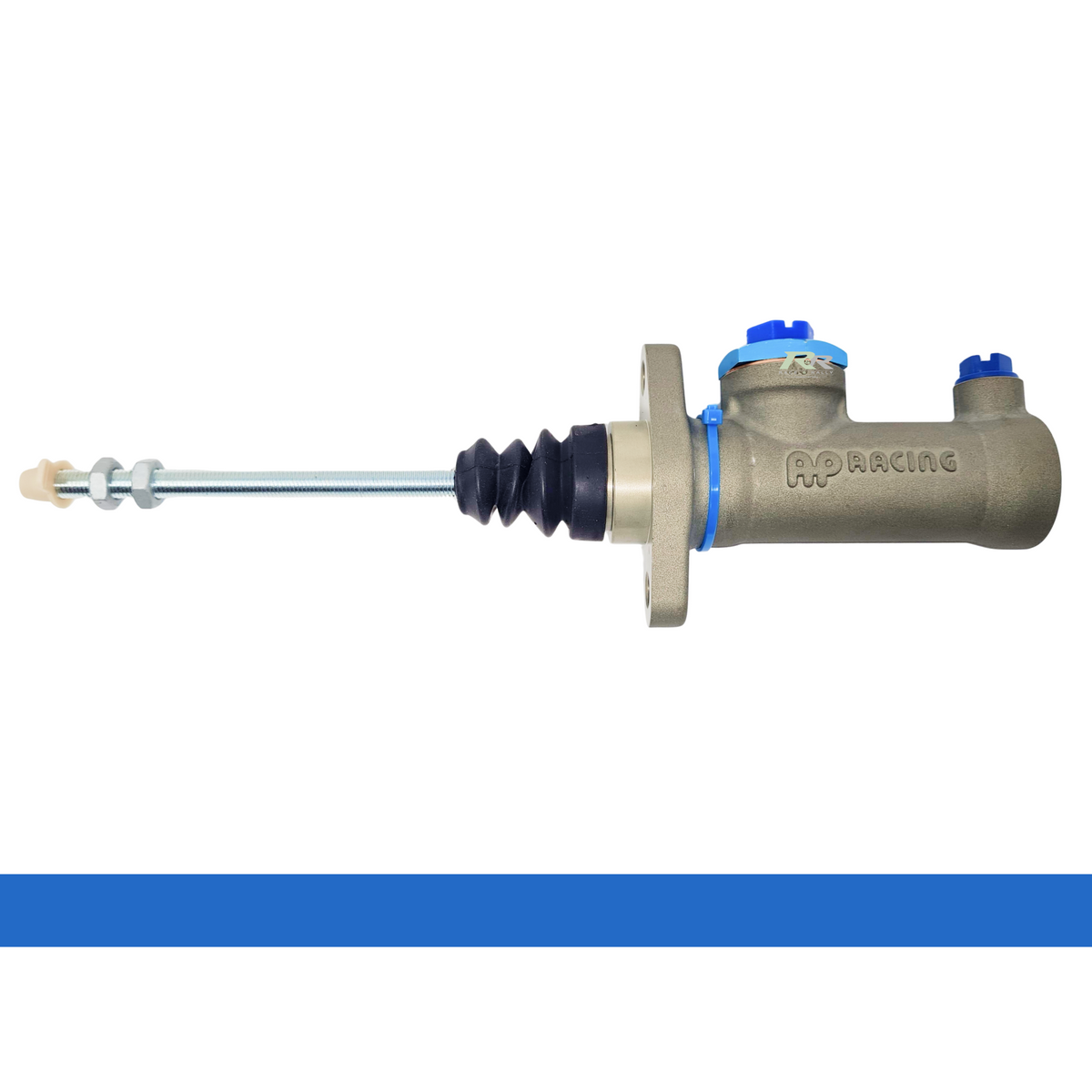

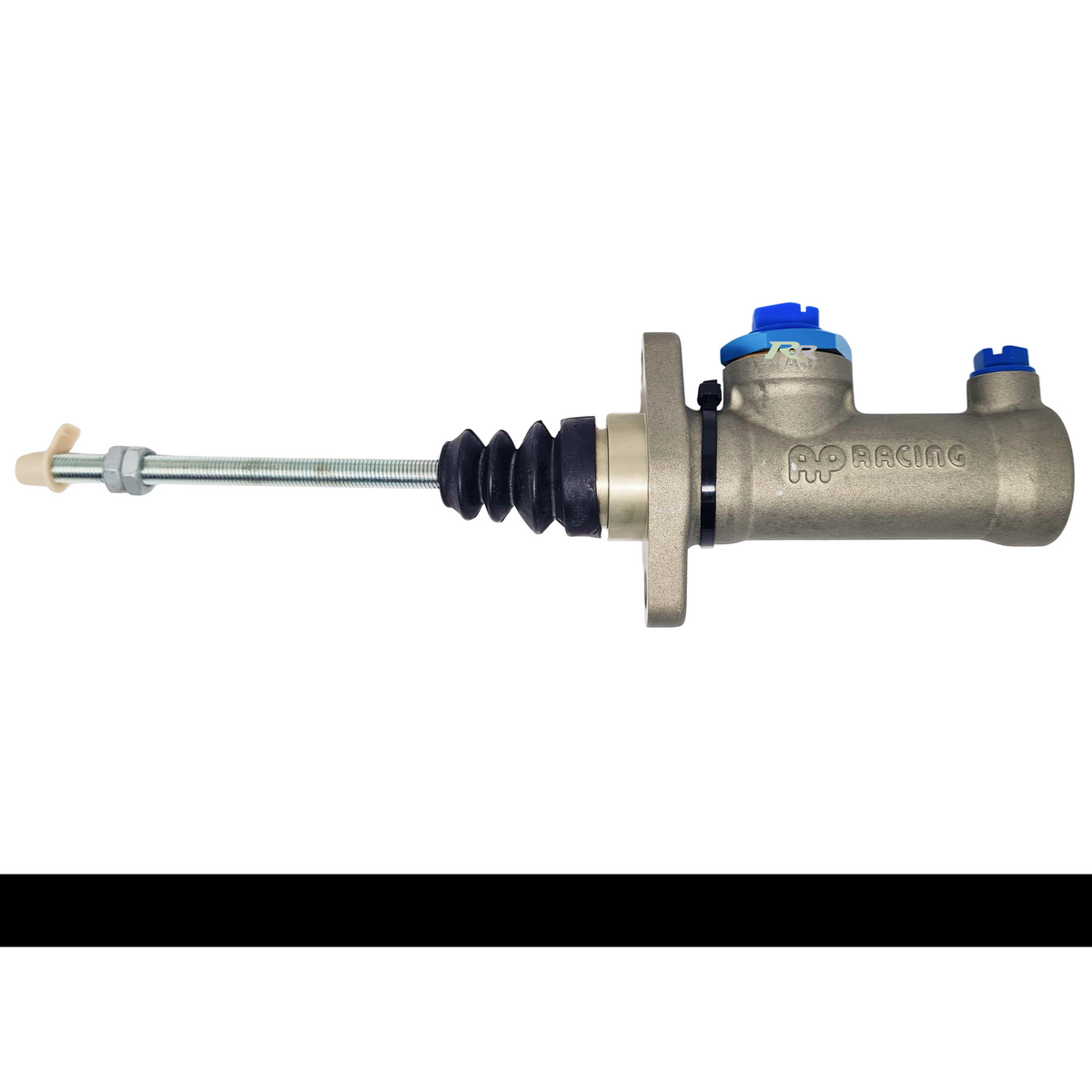

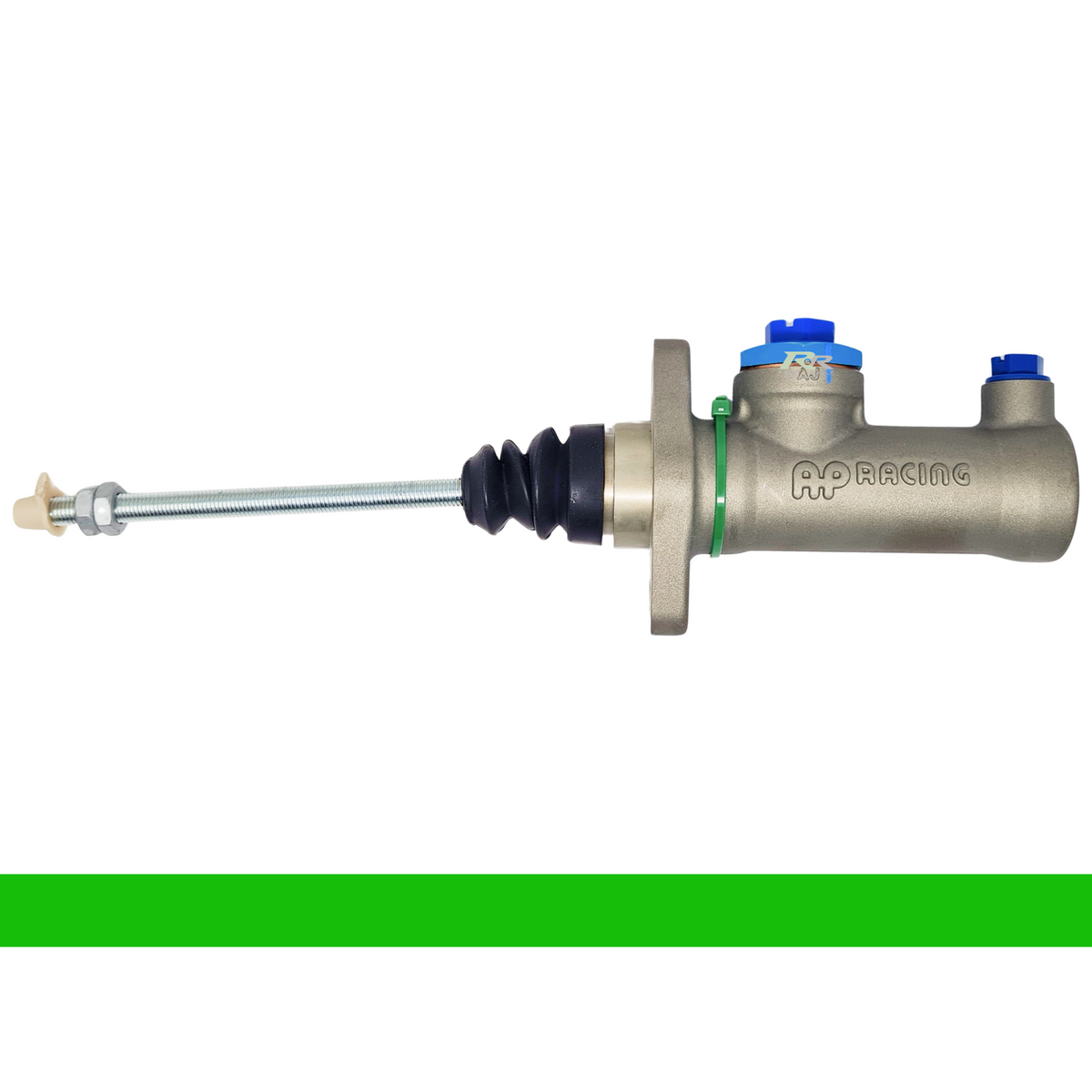

CP9093 - Flange Mounted Master Cylinder with Centre Valve Configuration

CP9093 - Flange Mounted Master Cylinder with Centre Valve Configuration

CP9093-90PRT163

€386.07 €474.87
Sale Sold out
  • Feature Icon Short Travel to cut-off
  • Feature Icon Push Type Design
  • Feature Icon Flange mounted
  • Feature Icon Centre Valve configuration available
  • Feature Icon Forged Aluminium Alloy Body
  • Feature Icon Imperial Hydraulic Threads
Bore Diameter
Push Rod Threads
View Docs

Out of stock, contact for leadtime

View full details

CP9093 - Flange Mounted Master Cylinder with Centre Valve Configuration
[Push Type]

Replaces CP6093 which is no longer available

General Information: Centre Valve configuration, helps to improve cylinder performance and seal durability with ABS. The centre valve replaces conventional ‘cut off’ ports that can cause ‘seal heel nibble’ when used with some ABS systems.

Features:

  • For use in ABS and high pressure applications
  • Forged aluminium alloy body
  • Centre Valve configuration, helps to improve cylinder performance and seal durability.
  • Short travel to cut-off
  • Choice of 7 bore sizes
  • Hydraulic threads are Imperial
  • Rubber boots fitted as standard

Servicing Note:

For repair kit insructions, please view CP7198 - Master Cylinder Repair Kit Instructions in the downloads tab.

Master Cylinder Identification:

All AP Racing master cylinders have their part number nominal bore size laser marked on the body together with batch codes enabling full manufacturing traceability.  All master cylinders also have a coloured tie wrapped around the body for quick visual identification of bore size.

Technical Details:

Weight 0.37Kg (0.81lbs)
Full Stroke 30.00mm (1.18")
Travel to Cut-Off 0.68 to 1.09mm (0.27" to 0.43")
Hydraulic Thread
- Inlet 7/16" x 20 UNF
- Outlet 3/8 x 24 UNF
Push Rod Threads
- PRT 5/16" UNF
- PRM M8 x 1.25
Push Rod Length from Mounting Flange 163mm (6.41")


CP9093 Part Numbering

 Available Bore Sizes

Cable Tie Colour

M8 Push Rod

5/16" Push Rod

Repair Kit
15.9mm | (0.625") | 5/8"  BLACK  CP9093-90PRM163
 CP9093-90PRT163
 CP7198-90RK
17.8mm | (0.700")  BLUE  CP9093-91PRM163 CP9093-91PRT163 CP7198-91RK
19.1mm | (0.750") | 3/4"  GREEN  CP9093-92PRM163
 CP9093-92PRT163
 CP7198-92RK
20.6mm | (0.812") | 13/16"  ORANGE  CP9093-93PRM163
 CP9093-93PRT163
 CP7198-93RK
22.2mm | (0.875") | 7/8"  RED  CP9093-94PRM163
 CP9093-94PRT163
 CP7198-94RK
23.8mm | (0.937") | 15/16"  WHITE  CP9093-95PRM163
 CP9093-95PRM163
 CP7198-95RK
25.4mm | (1.00")  YELLOW  CP9093-96PRM163
 CP9093-96PRM163
 CP7198-96RK


Replacement Parts

Description

Part Number

Female Inlet Adaptor (7/16" UNF) CP2293-134
CP2293-134
Copper Gasket for Above KL44539
KL44539
M8 x 1.25 Locknut ME21101
5/16" x 24 UNF Locknut K24102


Additional Parts

Description

Part Number

7/16" UNF Inlet Push-on Adaptor kit for Ø5/16" Hose CP2623-30
CP2623-30
7/16" UNF Inlet Push-on Banjo Adaptor kit for Ø5/16" Hose CP2623-41
Push-on Banjo Adaptor Kit
Ø5/16" EPDM Hose

Length - 12" CP6614-103

Length - 24" CP6614-106

Length - 72" CP6614-102

Fluid Reservoirs

Direct Fit - Short CP4709-12
CP4709-12
Direct Fit - Medium CP4709-11
CP4709-11
Direct Fit - Tall CP4709-10
CP4709-10
Remote Fit - 7/16" UNF - Short CP4709-13
CP4709-13
Remote Fit - 7/16" UNF - Medium CP4709-14
CP4709-14
Remote Fit - 7/16" UNF - Tall CP4709-15
CP4709-15
Brand AP Racing
Option SKU Barcode
15.90mm | (0.625") | 5/8" / 5/16" x 24 UNF CP9093-90PRT163
15.90mm | (0.625") | 5/8" / M8 x 1.25 CP9093-90PRM163
17.80mm | (0.70") / 5/16" x 24 UNF CP9093-91PRT163
19.10mm | (0.75") | 3/4" / 5/16" x 24 UNF CP9093-92PRT163
19.10mm | (0.75") | 3/4" / M8 x 1.25 CP9093-92PRM163
20.60mm | (0.812") | 13/16" / 5/16" x 24 UNF CP9093-93PRT163
20.60mm | (0.812") | 13/16" / M8 x 1.25 CP9093-93PRM163
22.20mm | (0.875") | 7/8" / 5/16" x 24 UNF CP9093-94PRT163
22.20mm | (0.875") | 7/8" / M8 x 1.25 CP9093-94PRM163
23.80mm | (0.937") | 15/16" / 5/16" x 24 UNF CP9093-95PRT163
23.70mm | (0.933") / 5/16" x 24 UNF CP9093-96PRT163
23.70mm | (0.933") / M8 x 1.25 CP9093-96PRM163
