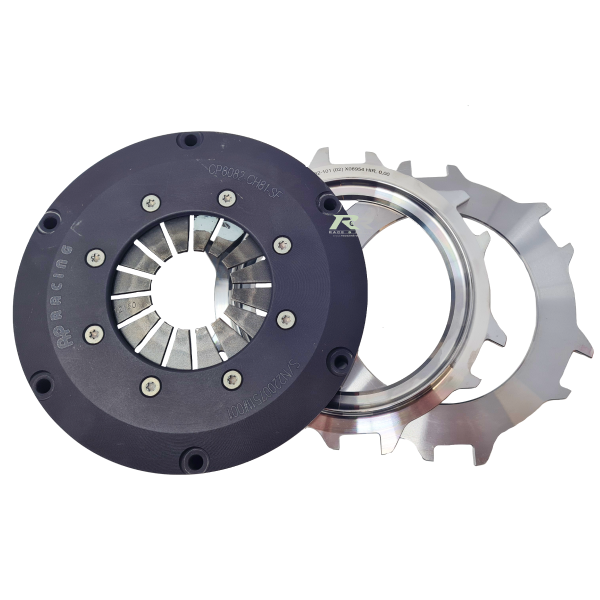

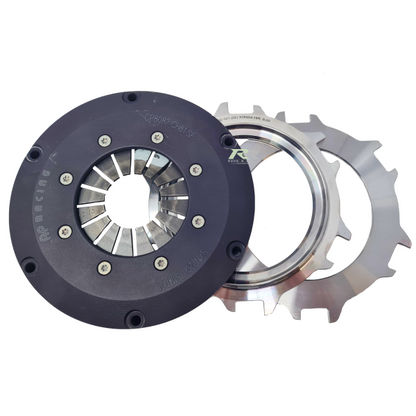

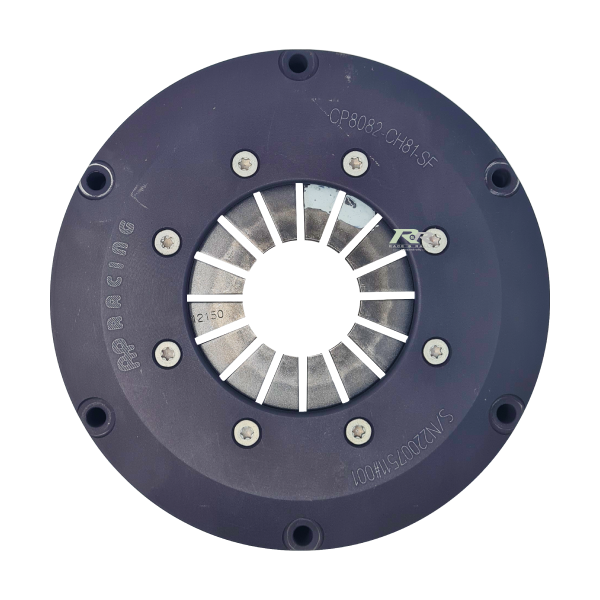

CP8082 - Ø184mm Twin Plate - Cerametallic Paddle Clutch

CP8082 - Ø184mm Twin Plate - Cerametallic Paddle Clutch

CP8082-CH81-SF

€846.81 €1041.58
Sale Sold out
Flywheel Fixing
Torque Capacity
Material
View Docs
View full details

CP8082 - Ø184mm Twin Plate Cerametallic Paddle Clutch

Typical Applications:

  • Race
  • Hillclimb
  • Rally

Features:

  • Twin plate
  • Push Type
  • Stepped Flywheel Fixing
    • Inner diameter location.
  • 6 bolt, one piece cover and lugs
    • machined from aluminium alloy. Allows dust and debris to escape.
  • Black hard anodised
  • Stainless steel wear plates fitted
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702

Part Numbers:

  • Stepped Flywheel:
    • CP8082-CH81-SF

Technical Specifications:

 Torque Capacity - Nm (lbs/ft)
  • CP8082-CH81-SF - 636 (469)
Release Load - Max Peak New - daN
  • CP8082-CH81-SF - 350
Release Load - Max Peak Worn - daN
  • CP8082-CH81-SF - 440
Set-up Height - New
  • CP8082-CH81-SF - 32.27 / 30.52mm
Set-up Height - Max Worn
  • CP8082-CH81-SF - 34.78mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates)
Assembly Inertia (Excluding Drive Plates) 0.0165 Kg m²
Recommended Release Bearing
Drive Plate Options
  • New = 6.00mm
  • Worn = 5.63mm

Spare Parts:
Main Pressure Plate CP8082-101
Intermediate Pressure Plate: CP8082-102
Wear Clips CP7972-103 (x6)



Applications

 AP Racing Applications
CP8082-CH81-SF
  • Ford Fiesta R5 MKI (Pre-EVO) - BV80000005AZ
Brand AP Racing
Option SKU Barcode
Stepped Flywheel / 636 Nm (469 lbft) / Aluminium CP8082-CH81-SF
