267mm x 21.0mm Brake Disc Dimensions

Outside Diameter	267mm
Thickness	21.0mm
Mounting P.C.D.	139.7mm
Mounting Type	Bolted - 6 Bolt
Eye Diameter	155.0mm
Spigot Diameter	mm
Inside Flange Diameter	125.8mm
Mounting Flange Thickness	5.6mm
Mounting Offset	mm
Max Pad Depth	D54.0
No. of Vanes	47
Air Gap	9.3
Weight	Kg
Face Types Available	GA - 'J' Hook Design

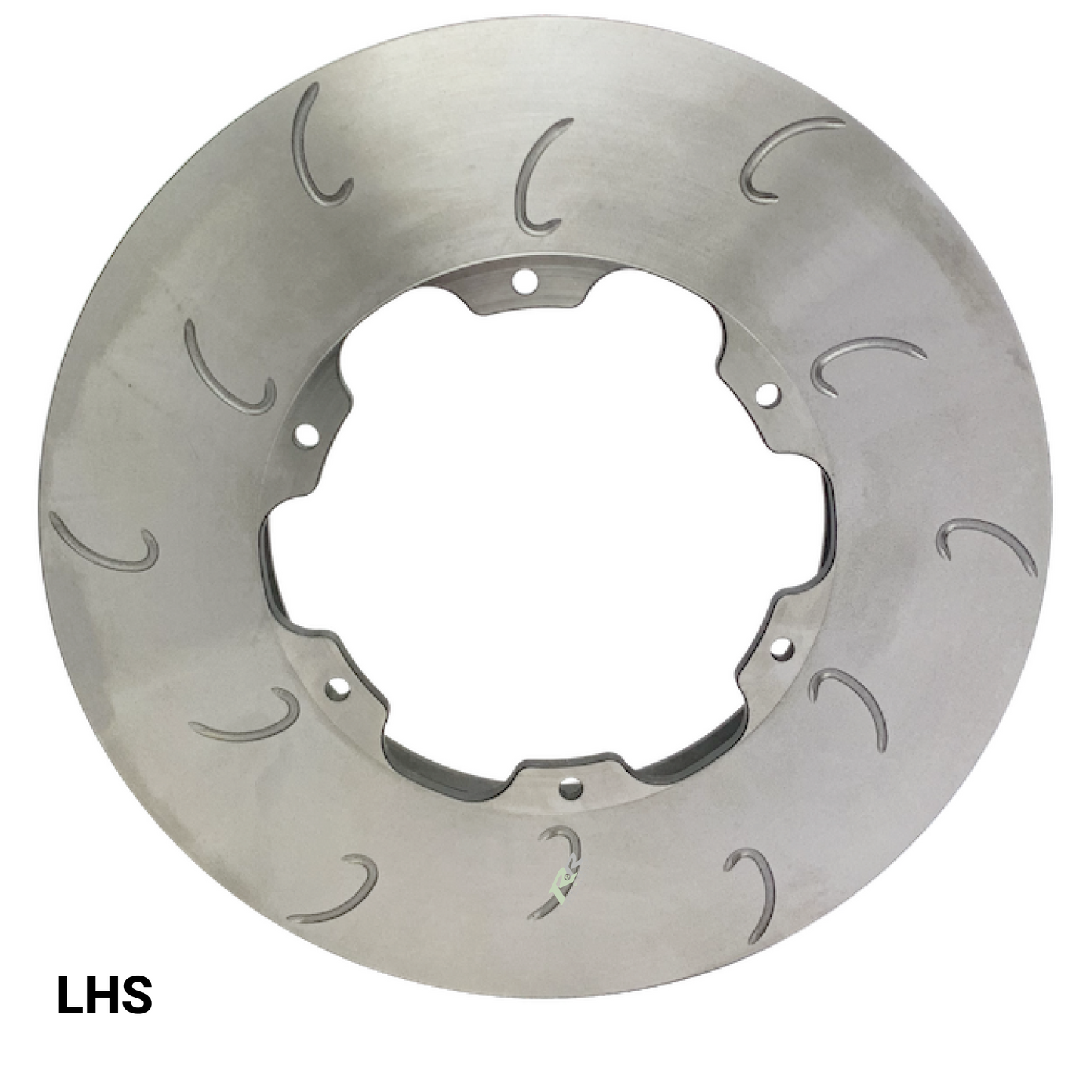

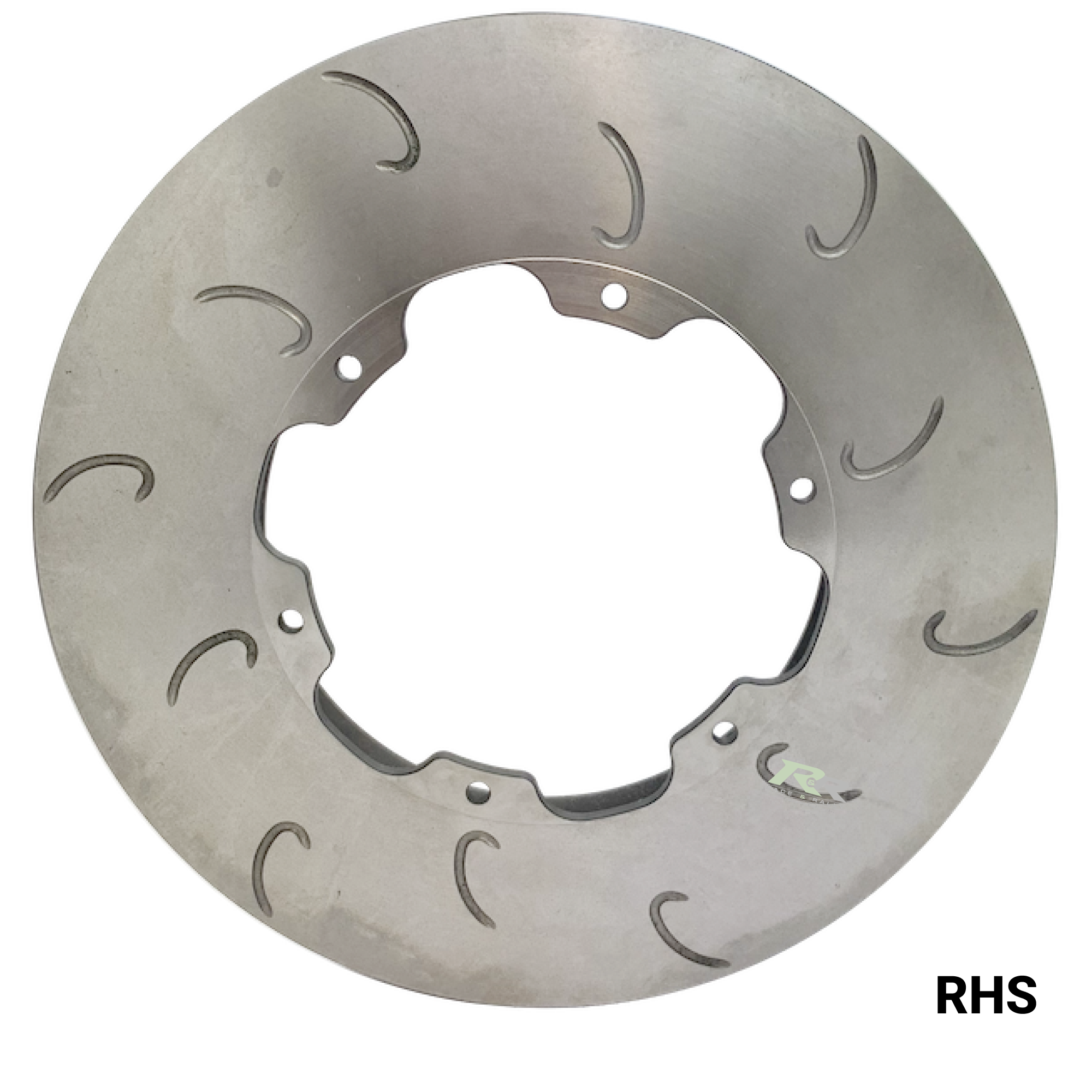

Disc Handing	Right-Hand Side Left-Hand Side
Notes
