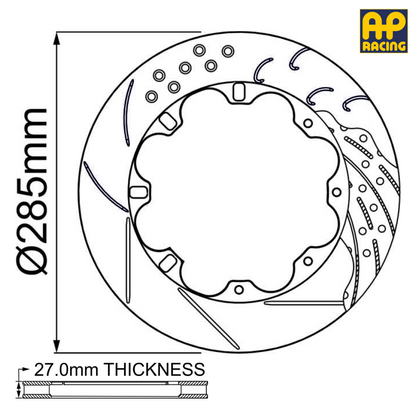

285mm x 27.0mm Brake Disc Dimensions

Outside Diameter	285mm
Thickness	27.0mm
Mounting P.C.D.	179.0mm
Mounting Type	Floating - 10 Bobbins
Eye Diameter	194.5mm
Spigot Diameter	mm
Inside Flange Diameter	154.0mm
Mounting Flange Thickness	5.02mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes	54
Air Gap	16.0
Weight	Kg
Face Types Available	GA - 'J' Hook Design

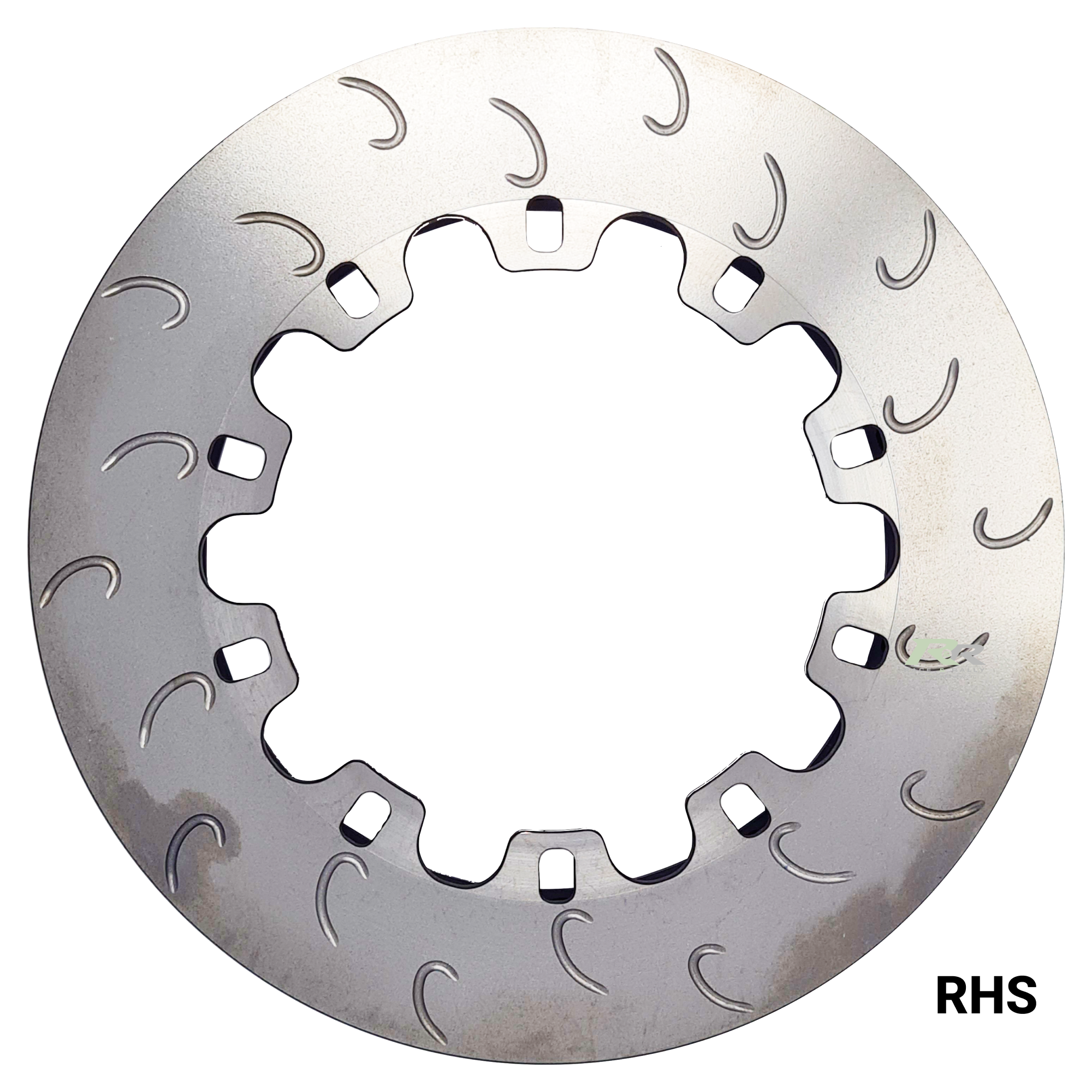

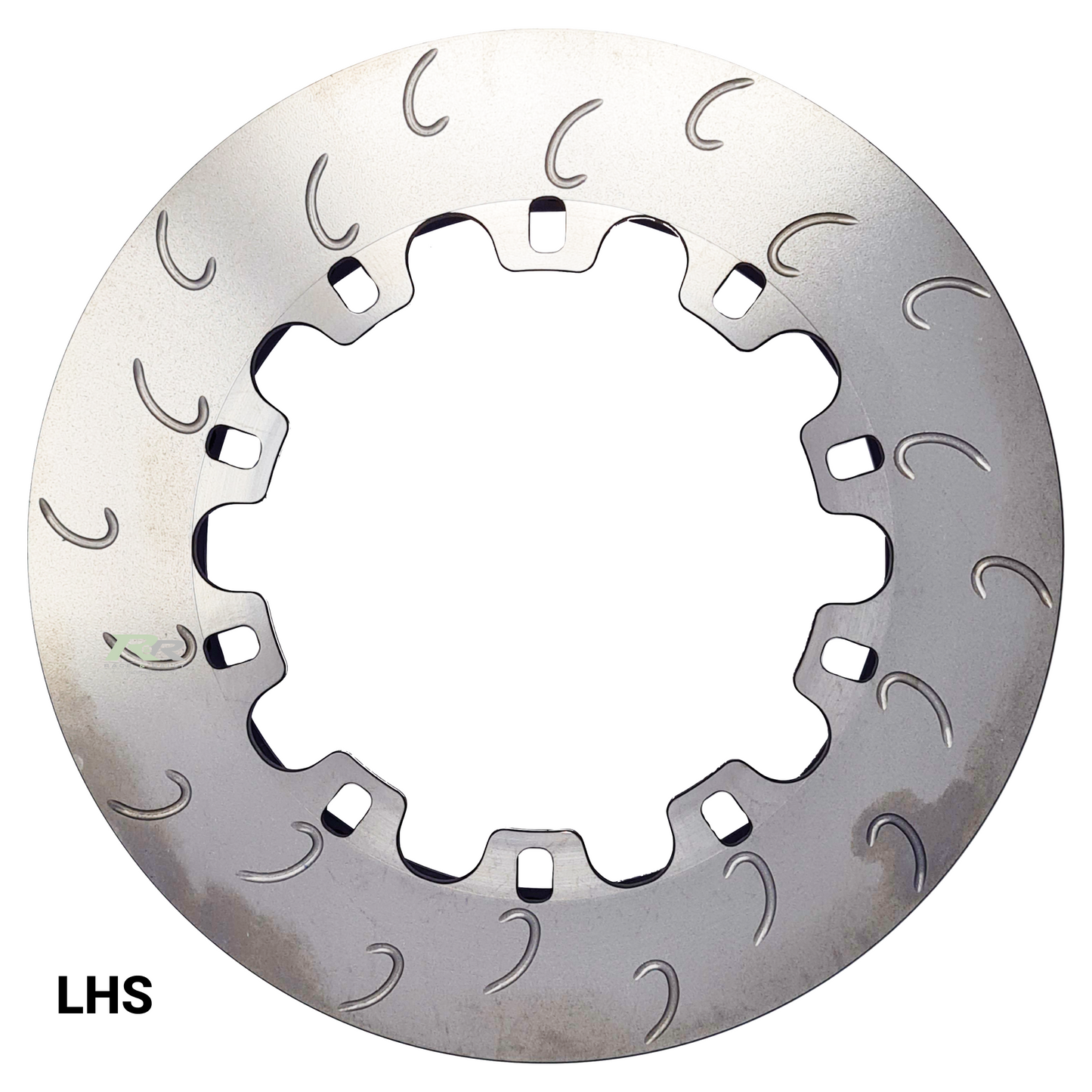

Disc Handing	Right-Hand Side Left-Hand Side
Notes
