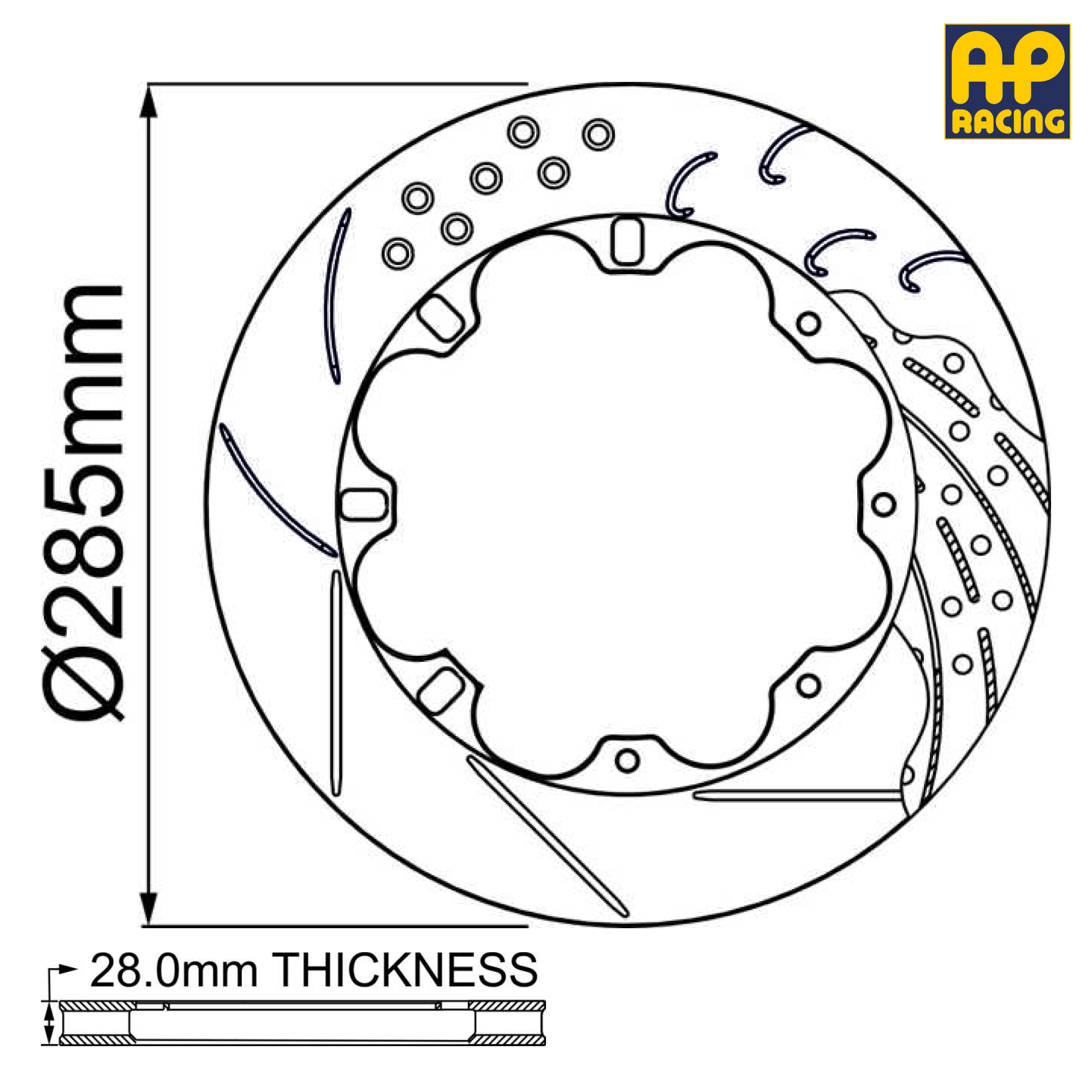

285mm x 28.0mm Brake Disc Dimensions

Outside Diameter	285mm
Thickness	28.0mm
Mounting P.C.D.	158.8mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	182.5mm
Spigot Diameter	mm
Inside Flange Diameter	141.0mm
Mounting Flange Thickness	6.3mm
Mounting Offset	mm
Max Pad Depth	D51.0
No. of Vanes	48
Air Gap	10.5
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)

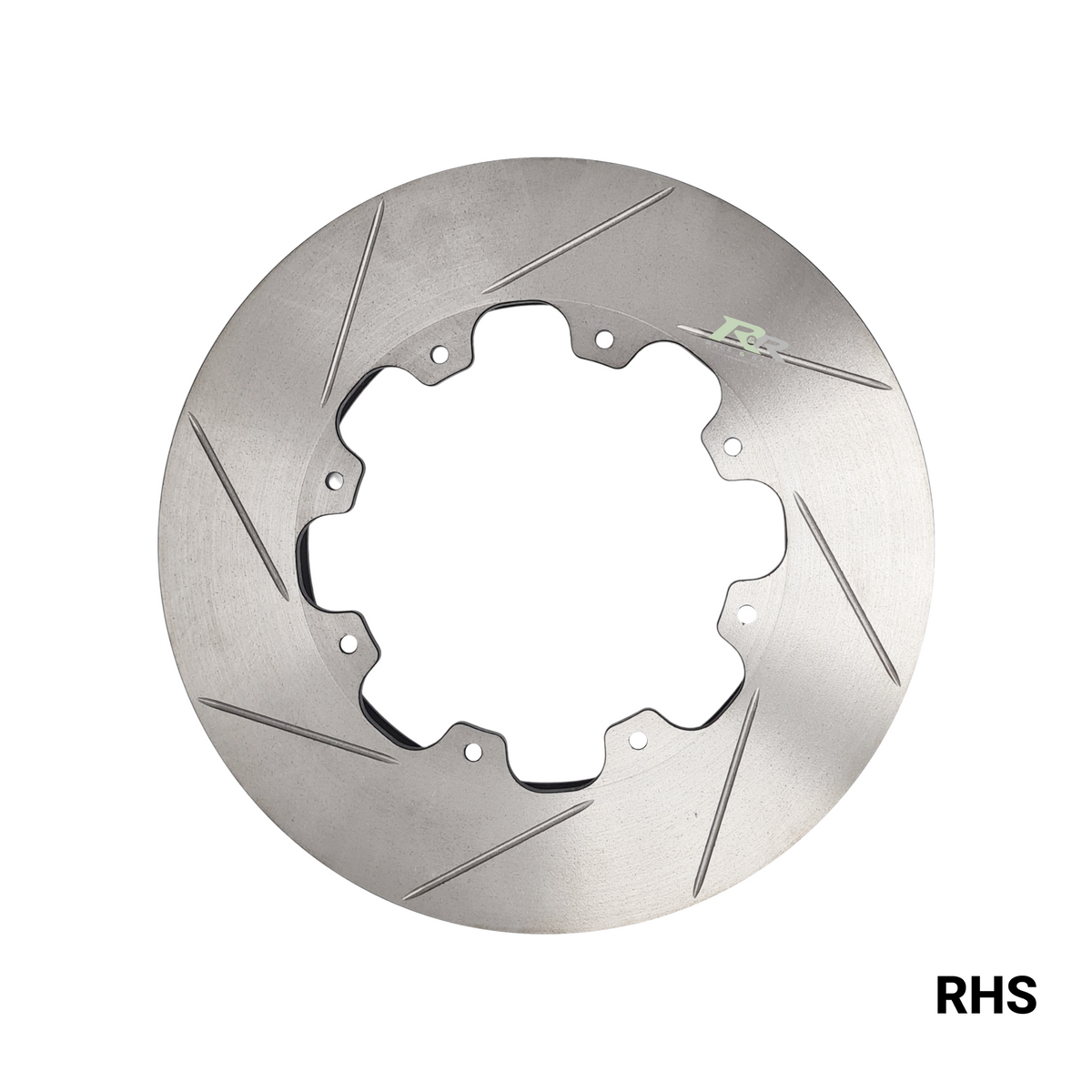

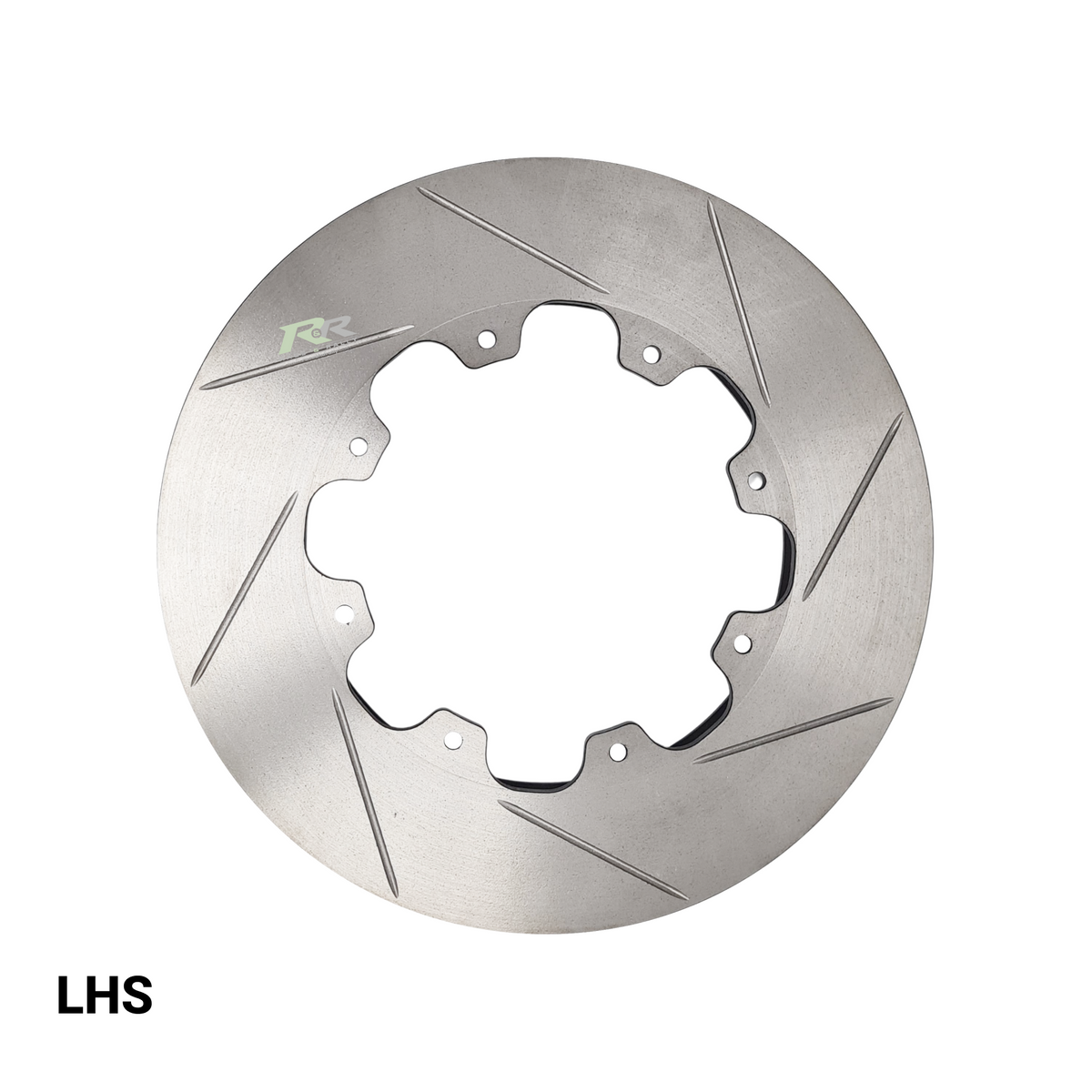

Disc Handing	Right-Hand Side Left-Hand Side
Notes
