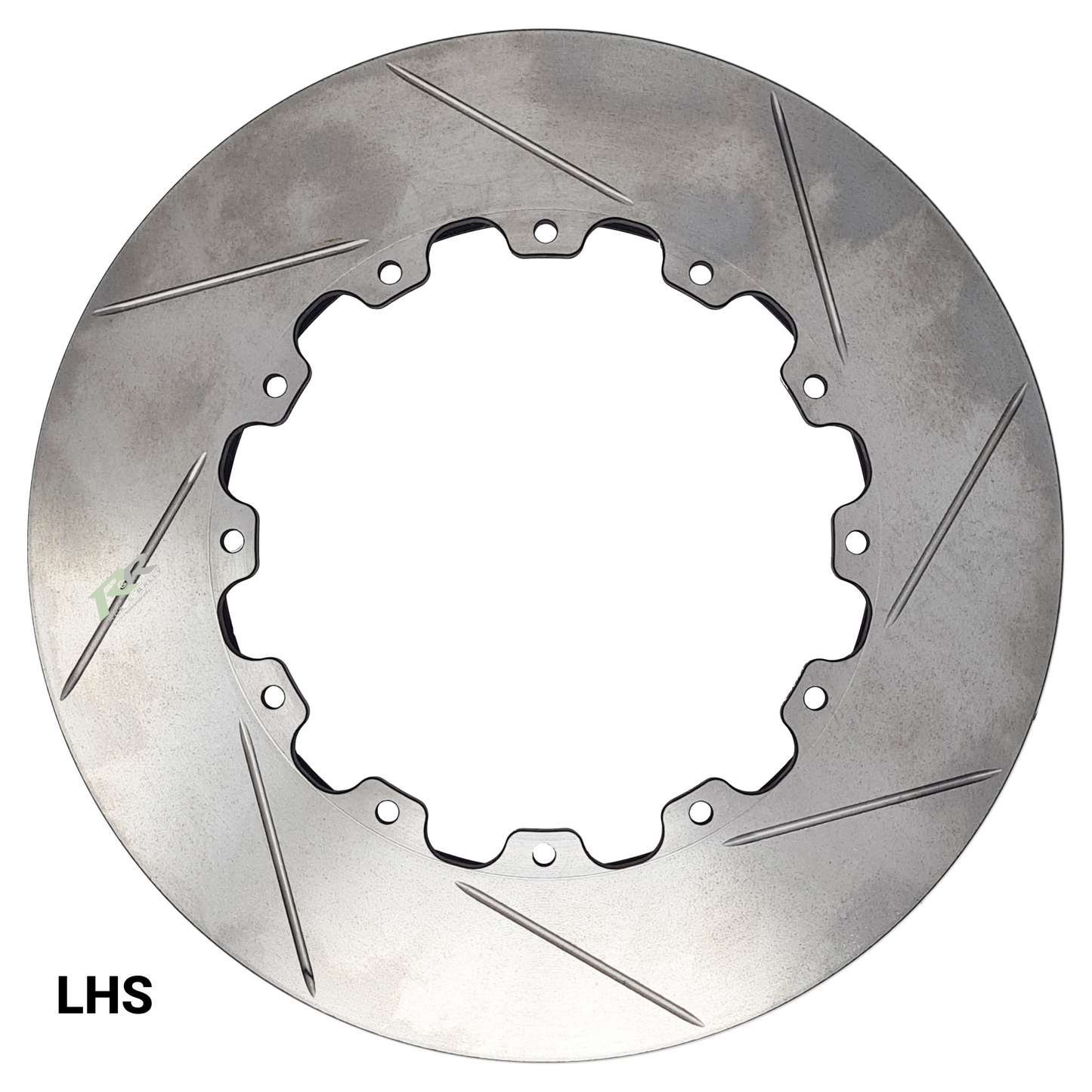

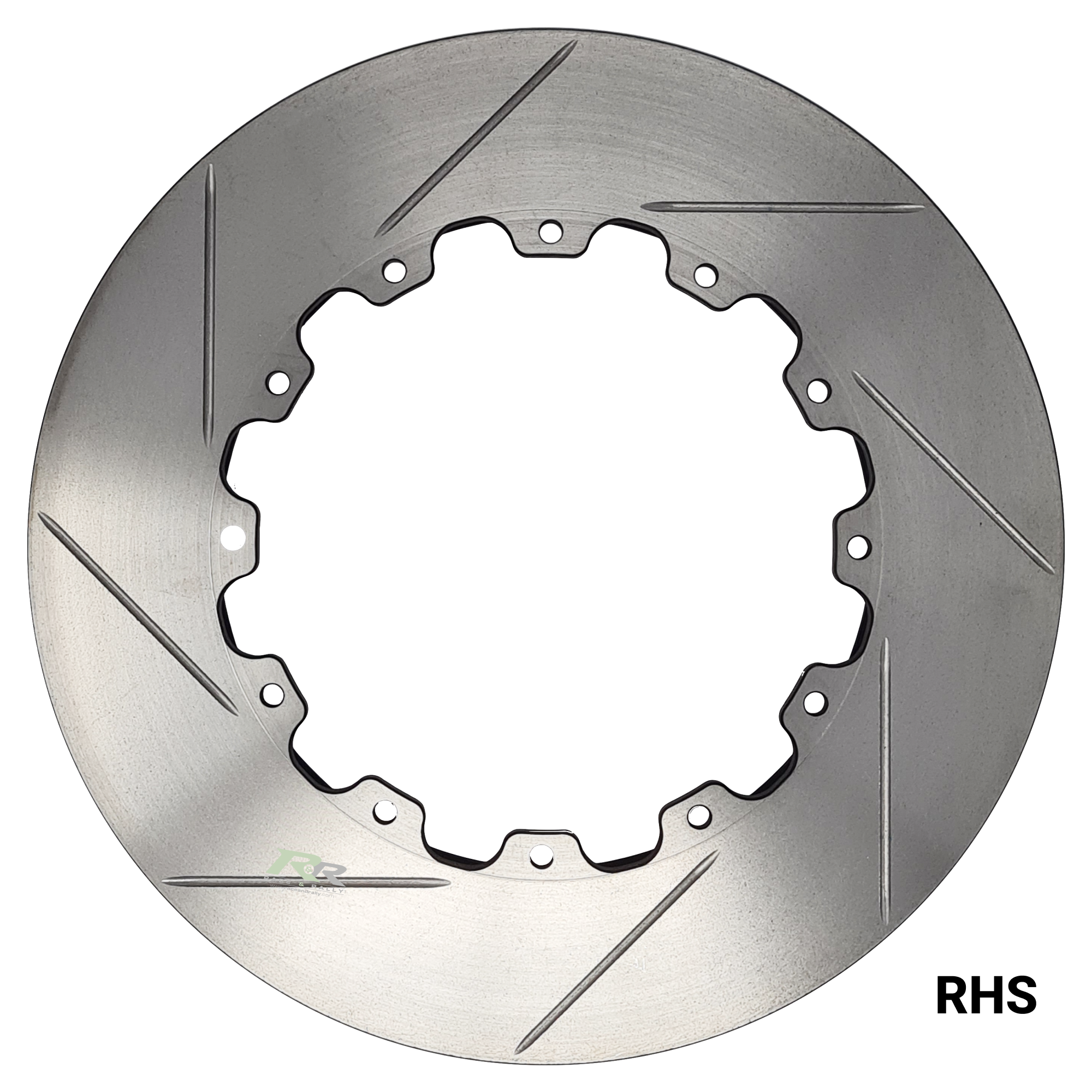

Ø295mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 48 Vanes

Ø295mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 48 Vanes

CP3580-102G8

€339.25 €417.28
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 295mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 193.0mm
Inside Flange Diameter 164.0mm
Mounting Flange Thickness 6.6mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

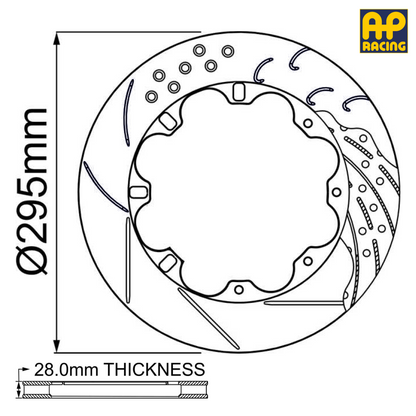

295mm x 28.0mm Brake Disc Dimensions

Outside Diameter 295mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 193.0mm
Inside Flange Diameter 164.0mm
Mounting Flange Thickness 6.6mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available G8 - Grooved (Straight Forward)
RD - Radiused Drilled
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
G8 - Grooved (Straight Forward) / Right-Hand Side CP3580-102G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP3580-103G8
RD - Radiused Drilled / Right-Hand Side CP3580-102RD
RD - Radiused Drilled / Left-Hand Side CP3580-103RD

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
