• Ø304mm x 25.4mm Ventilated Brake Disc - 12 x 177.8mm PCD - 14.0mm Air Gap - Race and Rally
  • Ø304mm x 25.4mm Ventilated Brake Disc - 12 x 177.8mm PCD - Floating - Race and Rally
1 2

Ø304mm x 25.4mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 14.0mm Air Gap

Ø304mm x 25.4mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 14.0mm Air Gap

CP3580-230G8

€422.21 €519.32
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 304mm
Thickness 25.4mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 203.2mm
Inside Flange Diameter 164.5mm
Mounting Flange Thickness 4.9mm
Max Pad Depth 50.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

304mm x 25.4mm Brake Disc Dimensions

Outside Diameter 304mm
Thickness 25.4mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 203.2mm
Inside Flange Diameter 164.5mm
Mounting Flange Thickness 4.9mm
Max Pad Depth 50.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available G8 - Grooved (Straight Forward)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode

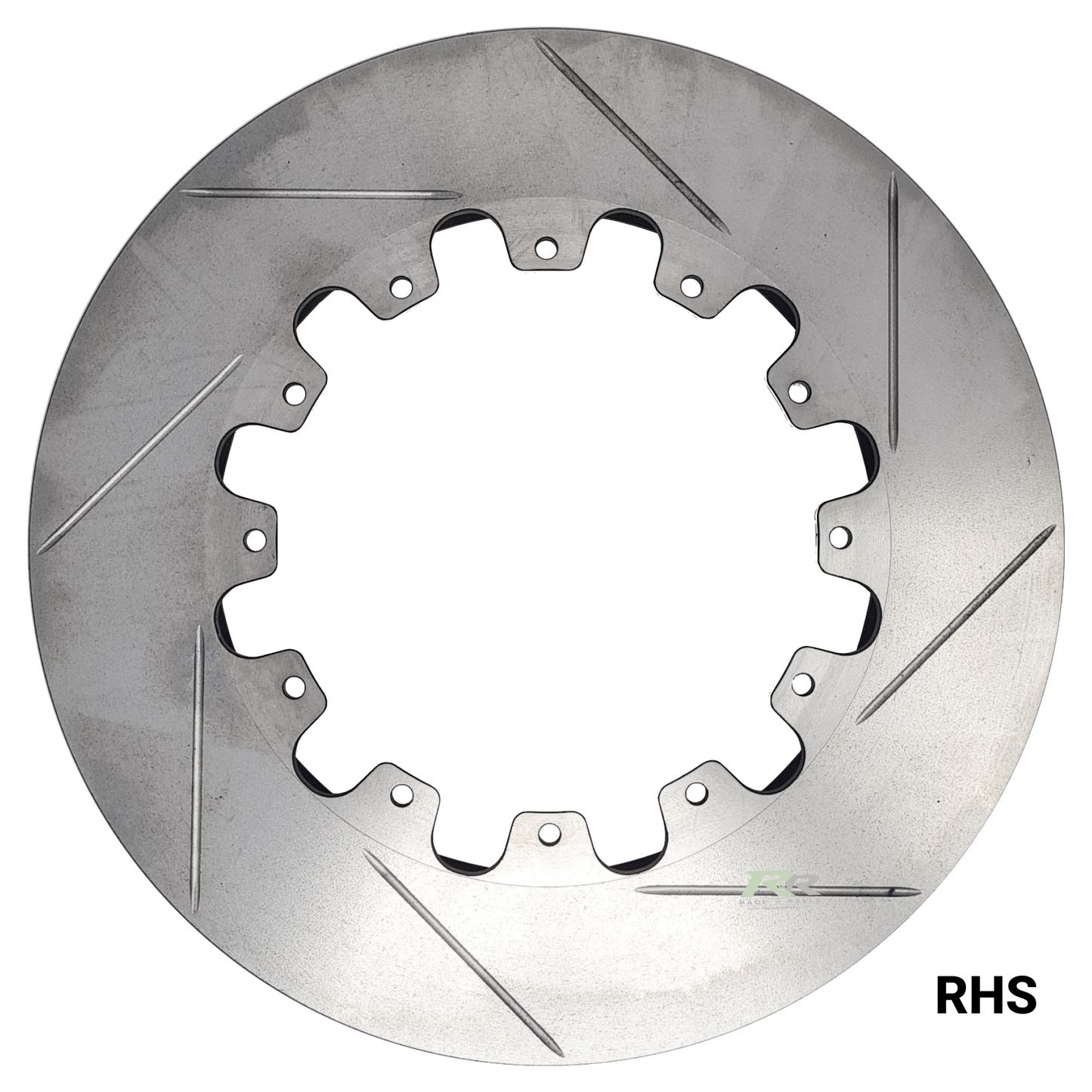

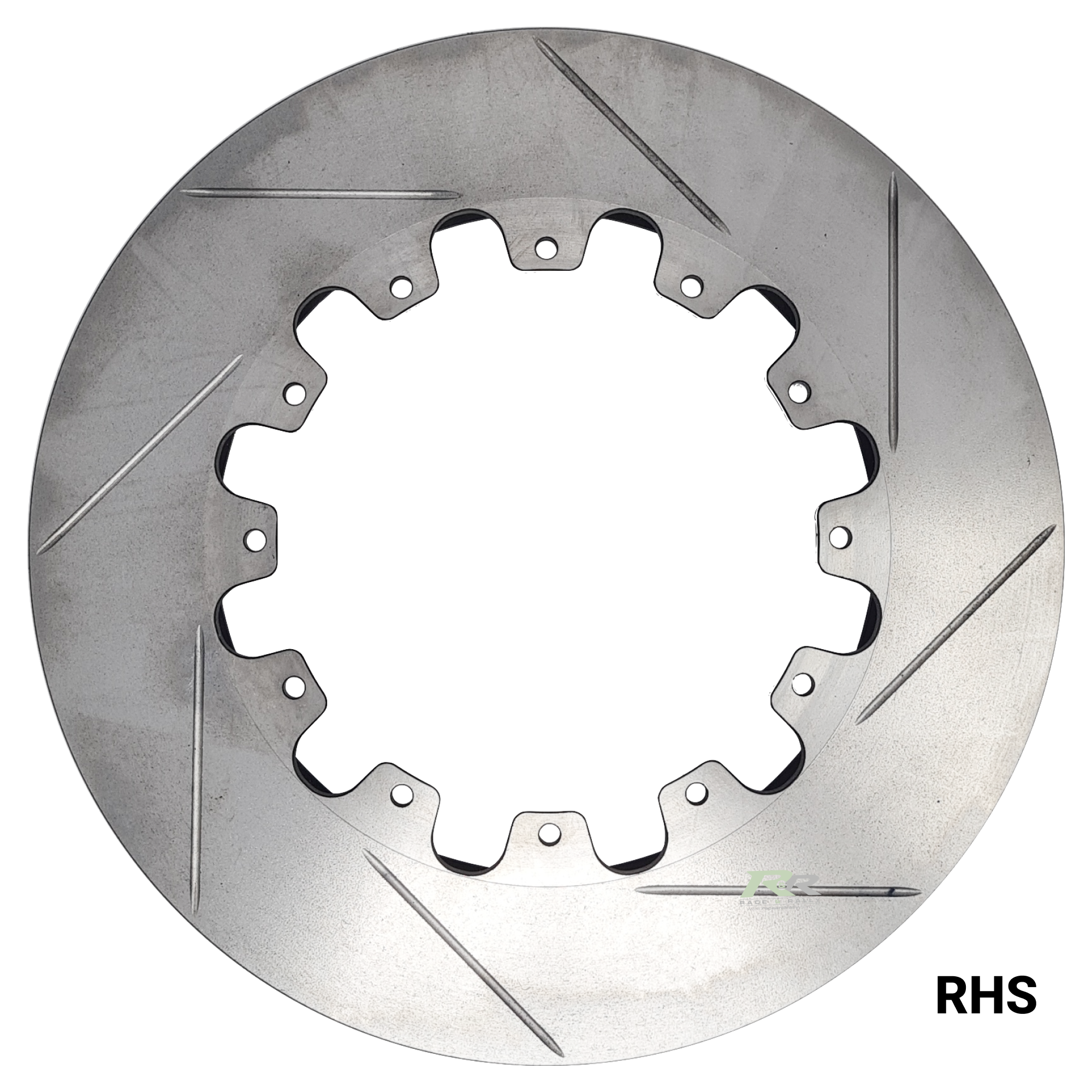

G8 - Grooved (Straight Forward) / Right-Hand Side CP3580-230G8

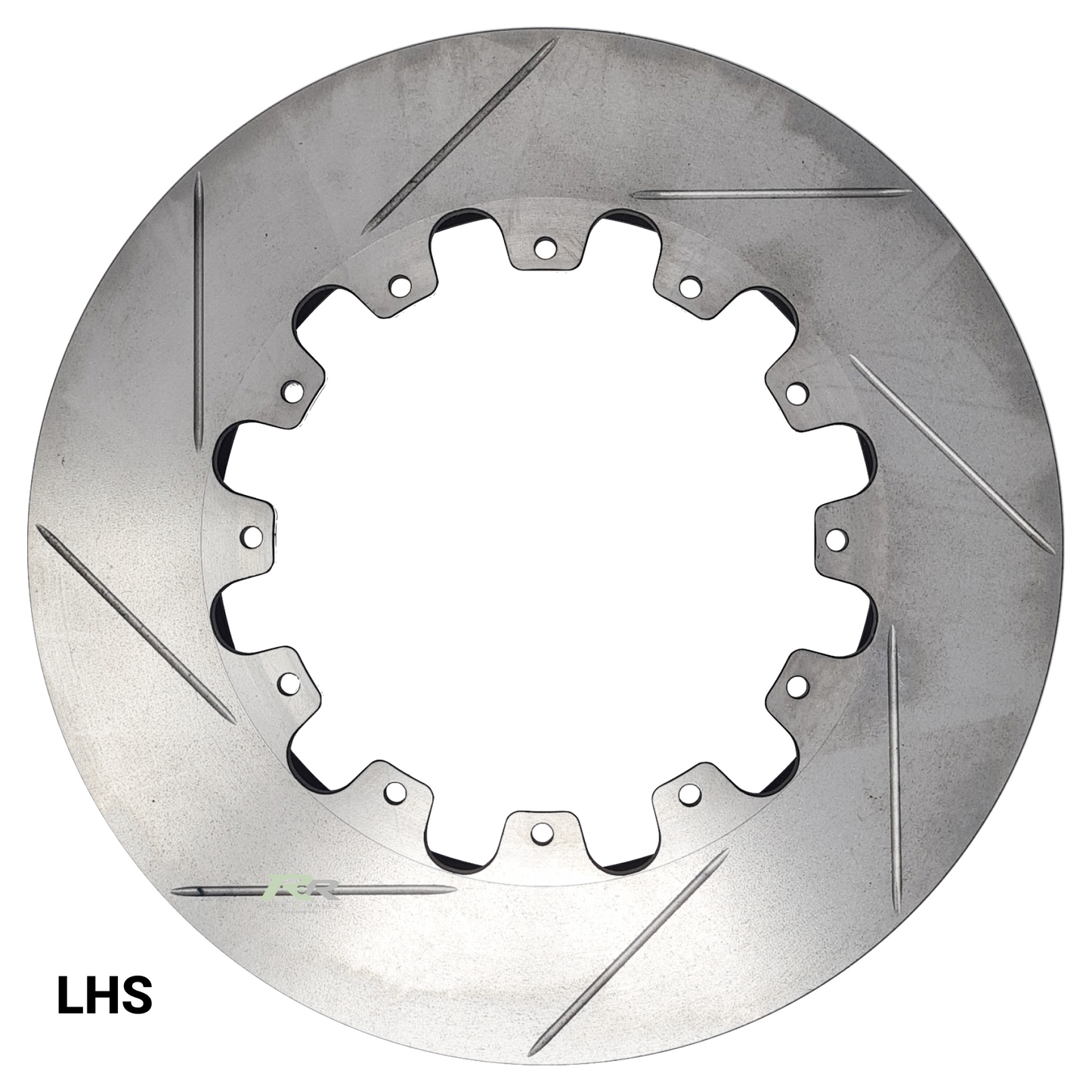

G8 - Grooved (Straight Forward) / Left-Hand Side CP3580-231G8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
