Ø304mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 14.0mm Air Gap - 203.2mm Eye Diameter

Ø304mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 14.0mm Air Gap - 203.2mm Eye Diameter

CP3580-2572G4

€359.90 €442.68
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 304mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 203.2mm
Inside Flange Diameter 164.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 48.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

304mm x 28.0mm Brake Disc Dimensions

Outside Diameter 304mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 203.2mm
Inside Flange Diameter 164.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 48.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available G4 - Grooved (Straight Forward)
GA - 'J' Hook Design
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode

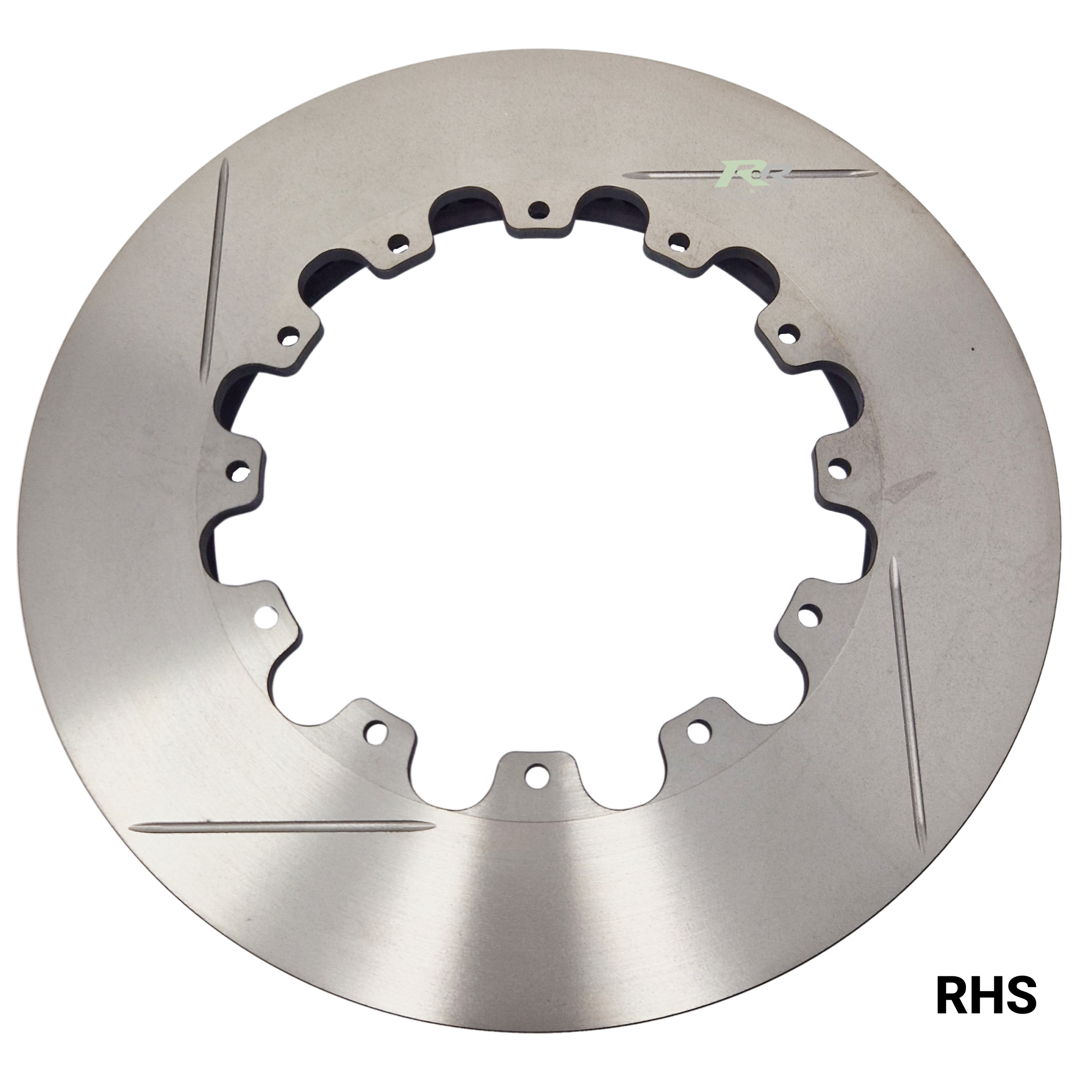

G4 - Grooved (Straight Forward) / Right-Hand Side CP3580-2572G4

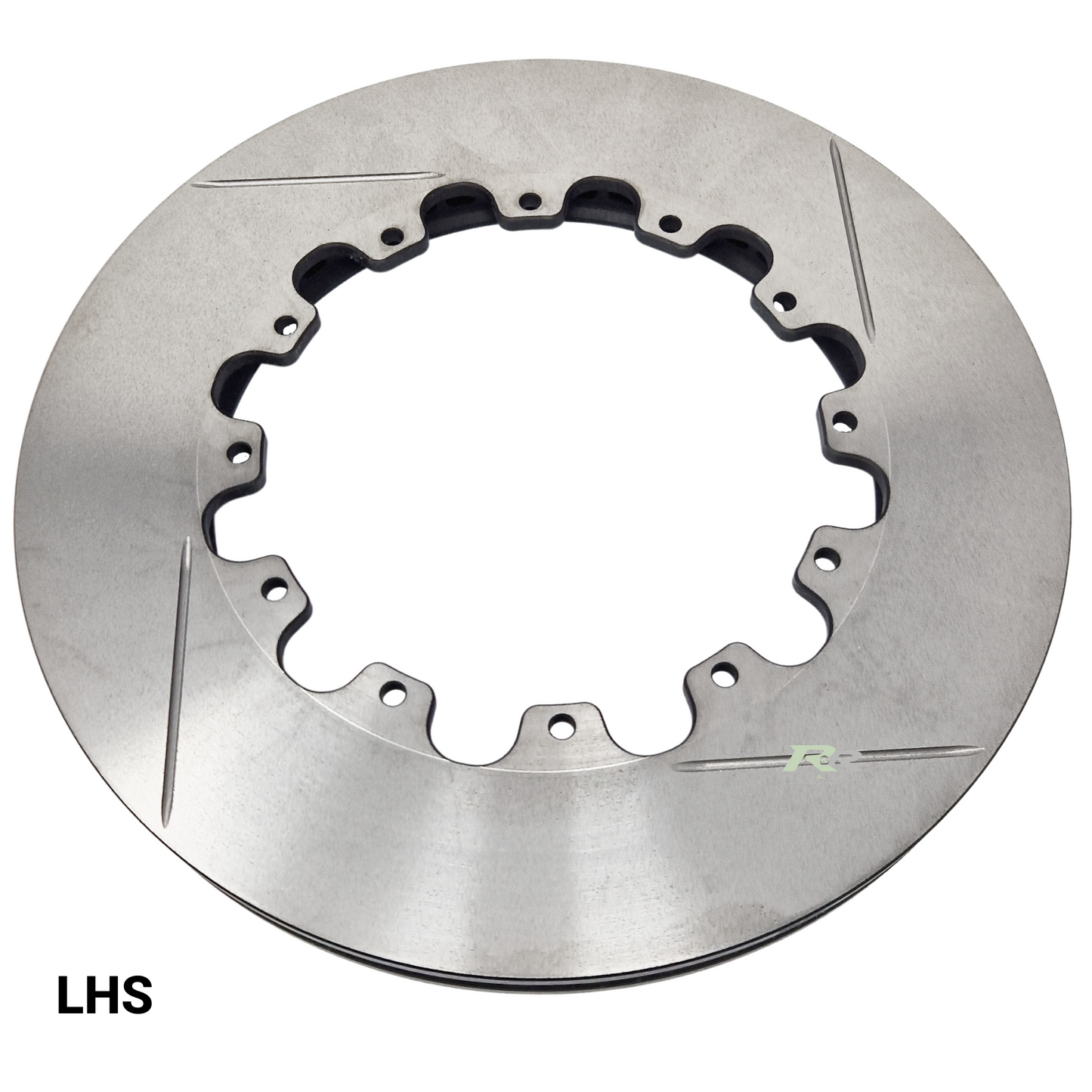

G4 - Grooved (Straight Forward) / Left-Hand Side CP3580-2573G4

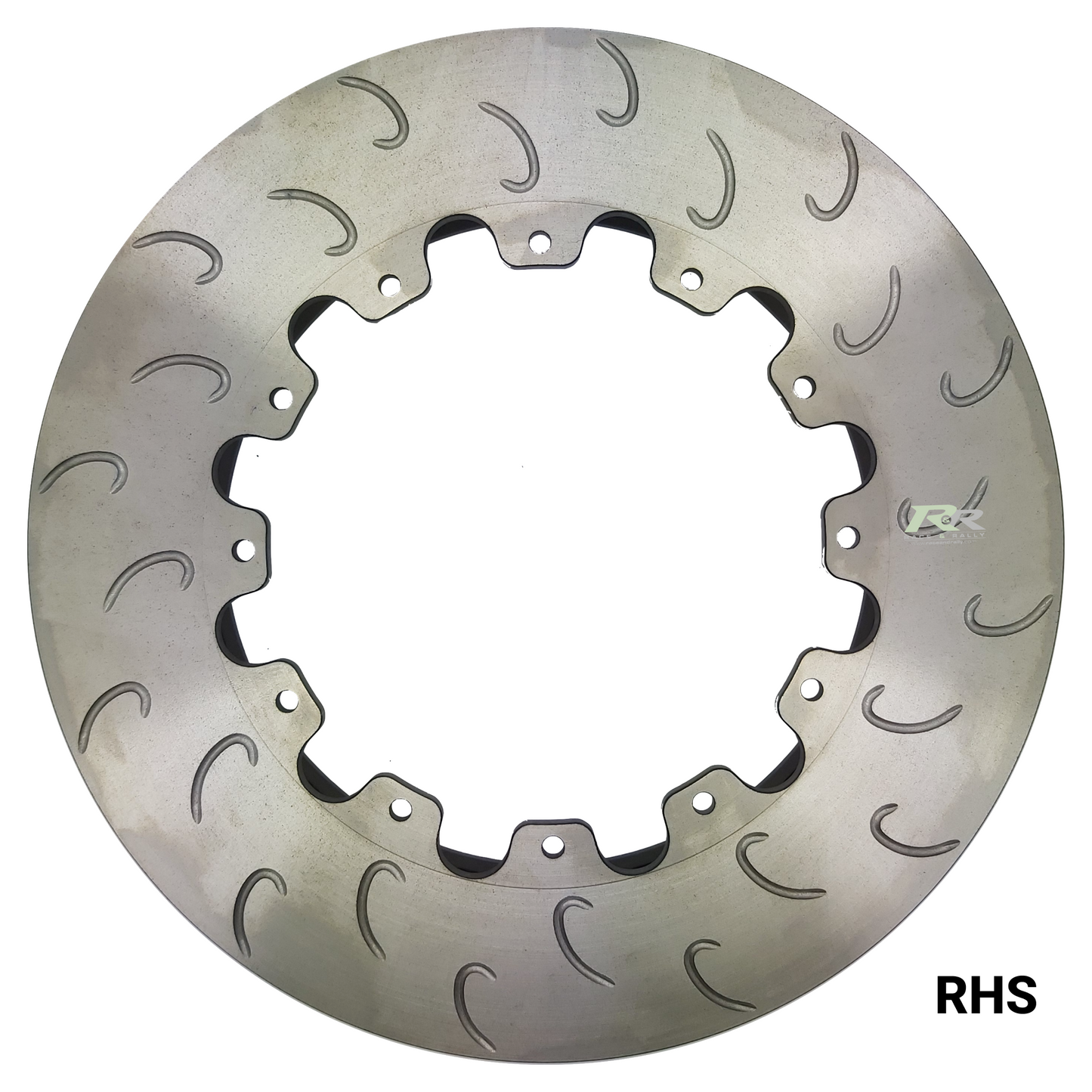

GA - 'J' Hook Design / Right-Hand Side CP3580-2572GA

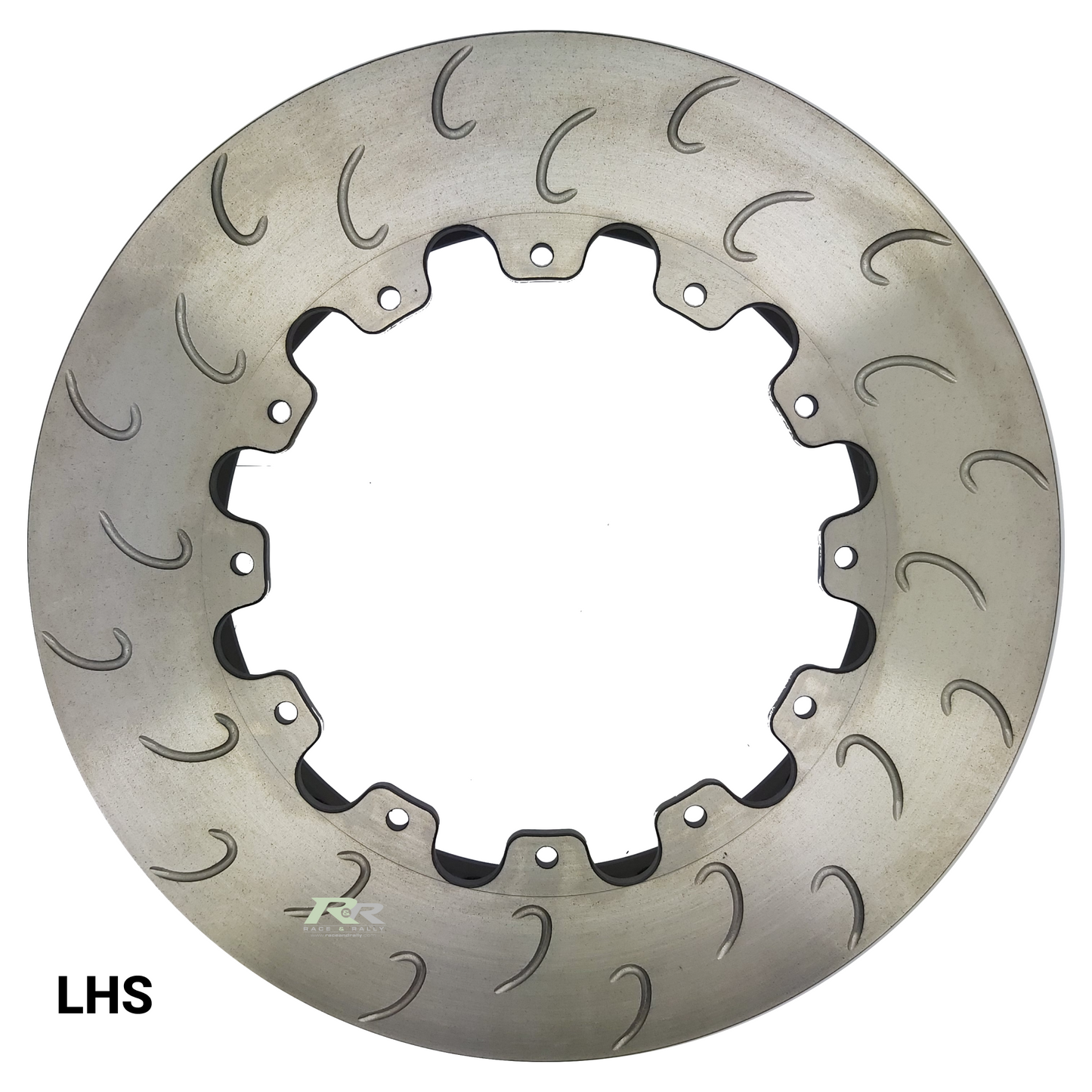

GA - 'J' Hook Design / Left-Hand Side CP3580-2573GA

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
