• Ø330mm x 28.0mm Ventilated Brake Disc - 12 x 203.2mm PCD - Bolted - 14.0mm Air Gap - Race and Rally
1 2

Ø330mm x 28.0mm Ventilated Brake Disc - 12 x 203.2mm PCD - Bolted - 14.0mm Air Gap

Ø330mm x 28.0mm Ventilated Brake Disc - 12 x 203.2mm PCD - Bolted - 14.0mm Air Gap

CP3580-2898RD

€458.19 €563.57
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 330mm
Thickness 28.0mm
Mounting P.C.D 203.2mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 230.0mm
Inside Flange Diameter 190.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 50.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

330mm x 28.0mm Brake Disc Dimensions

Outside Diameter 330mm
Thickness 28.0mm
Mounting P.C.D 203.2mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 230.0mm
Inside Flange Diameter 190.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 50.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available RD - Radiused Drilled
G8 - Grooved (Straight Forward)

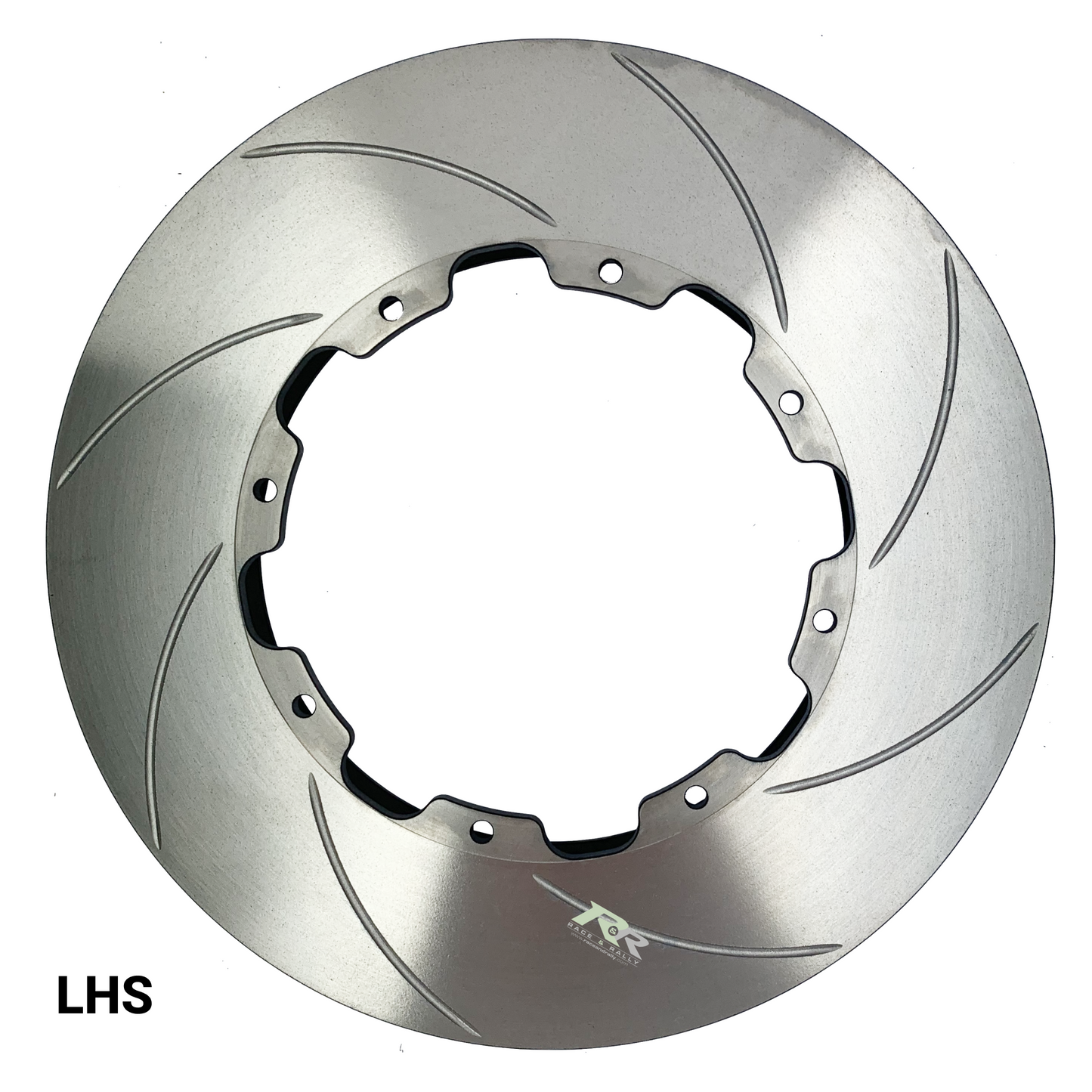

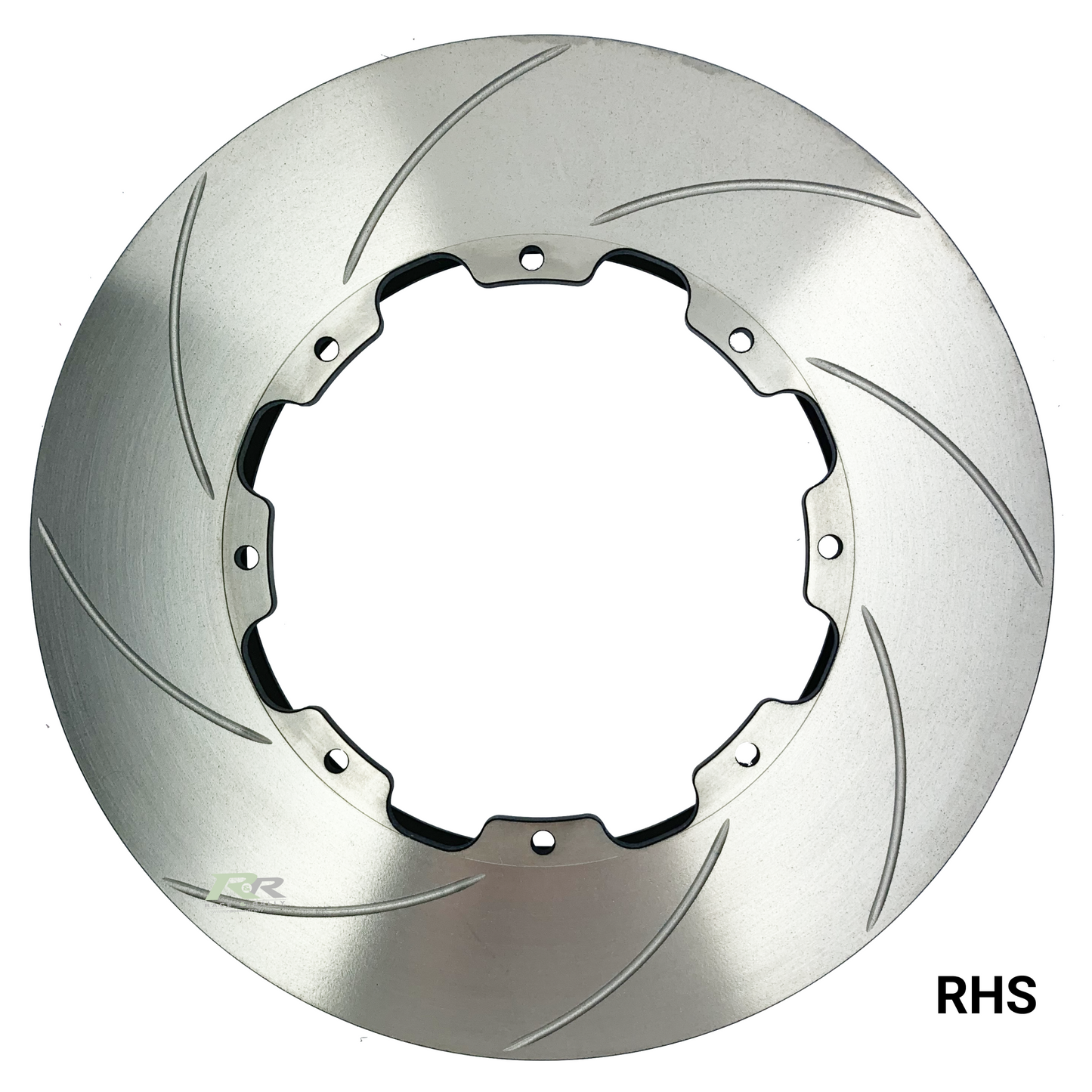

CG8 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
RD - Radiused Drilled / Right-Hand Side CP3580-2898RD
RD - Radiused Drilled / Left-Hand Side CP3580-2899RD
G8 - Grooved (Straight Forward) / Right-Hand Side CP3580-2898G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP3580-2899G8
CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP3580-2898CG8
CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP3580-2899CG8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
