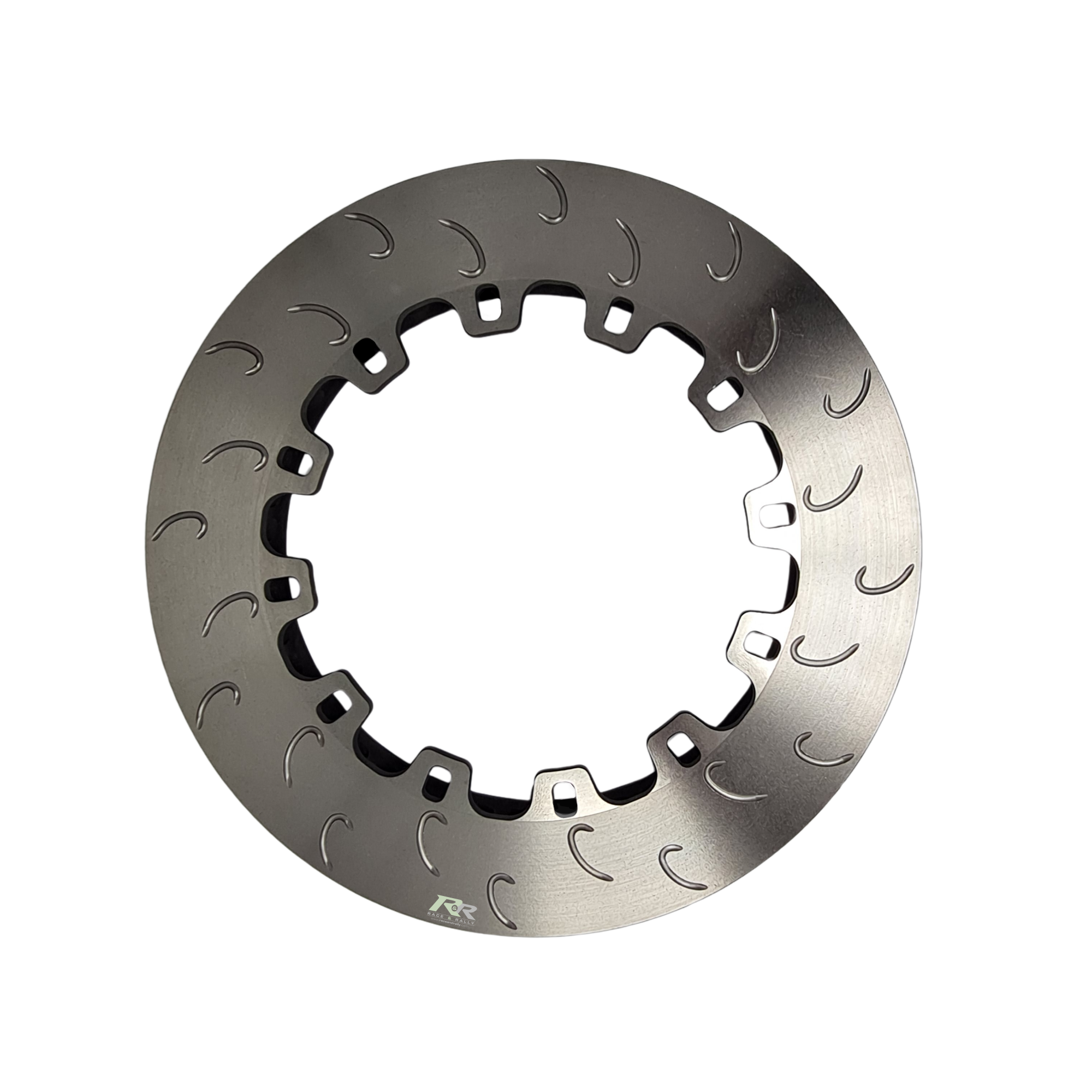

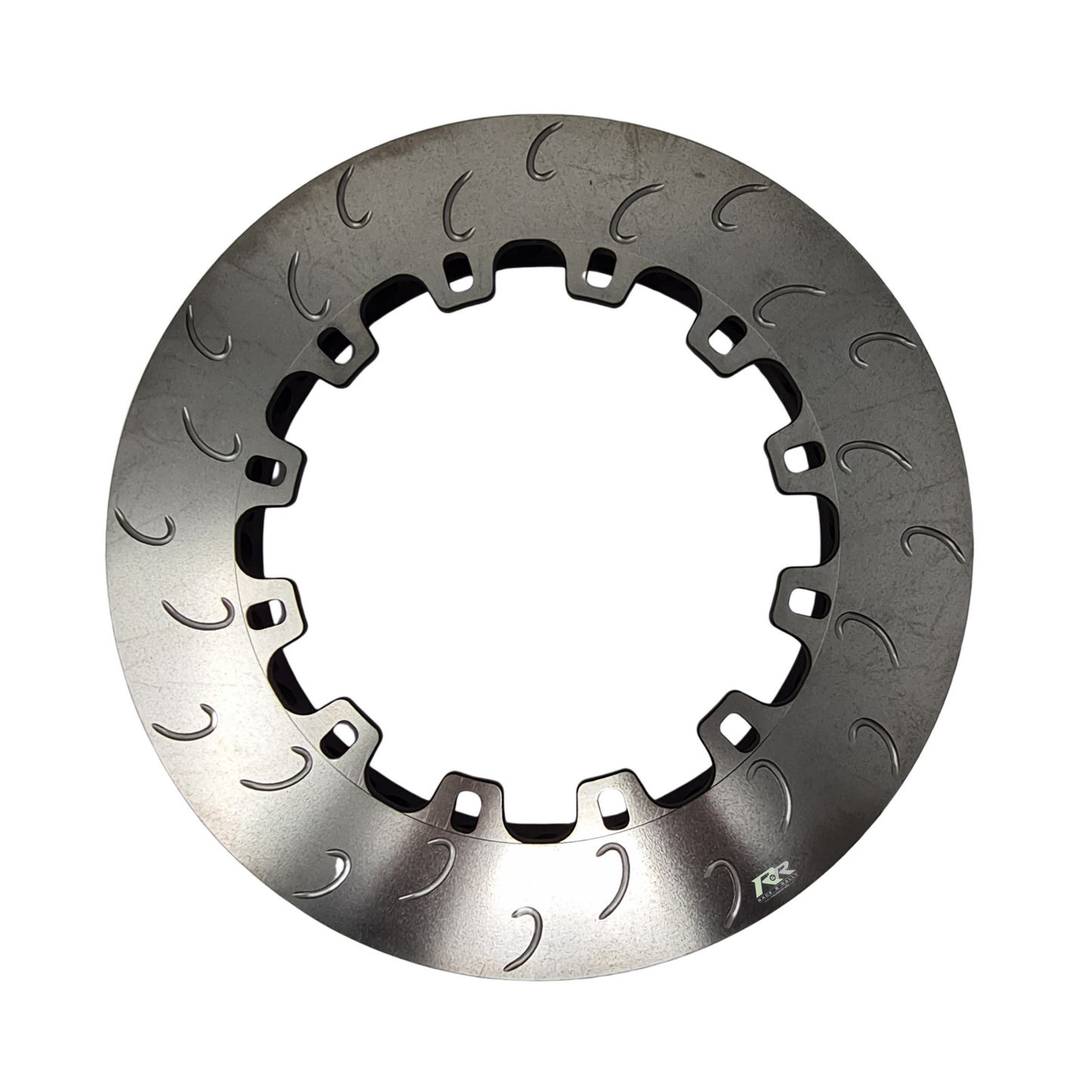

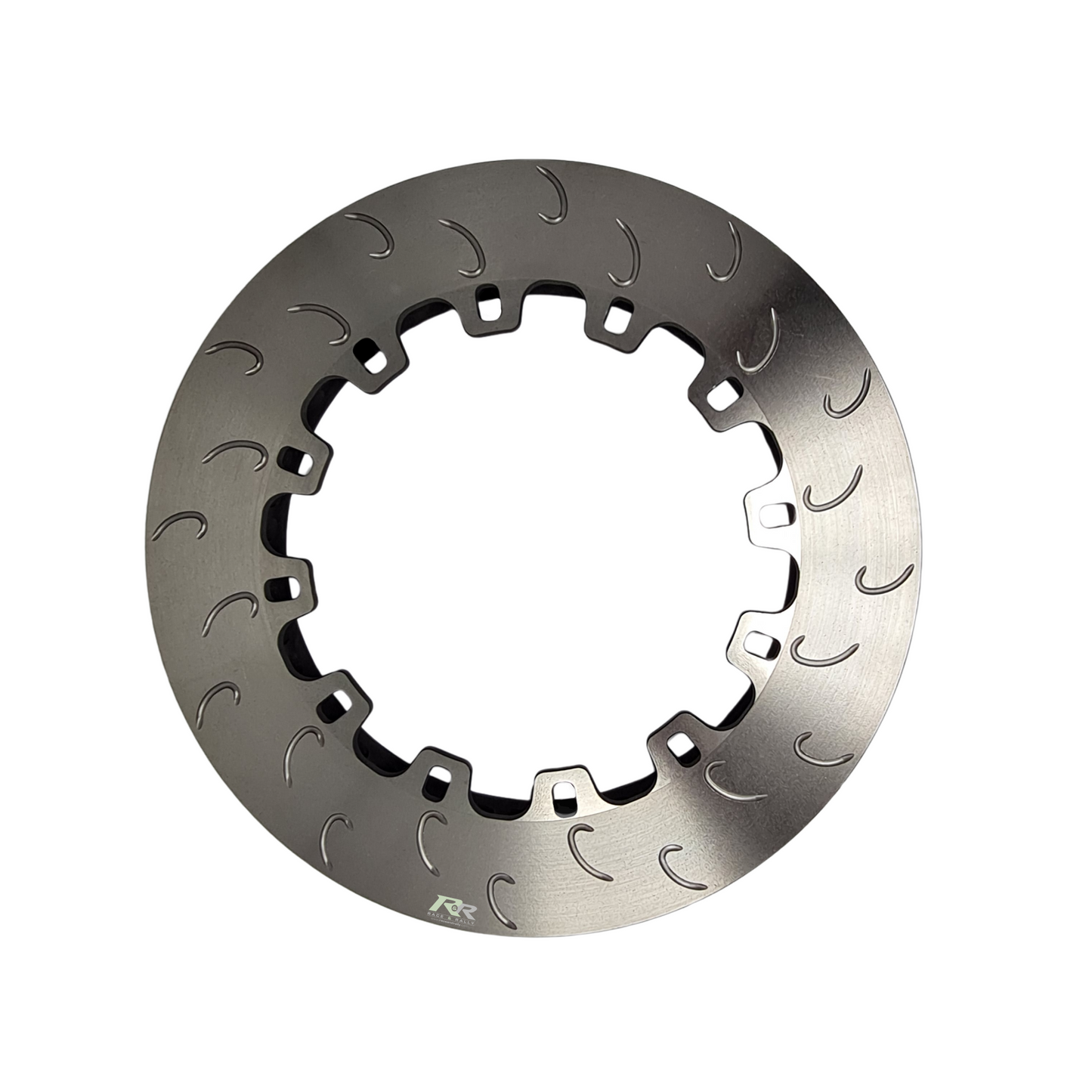

Ø332mm x 32.0mm Ventilated Brake Disc - 12 x 214.0mm PCD -Floating - 48 Vanes

Ø332mm x 32.0mm Ventilated Brake Disc - 12 x 214.0mm PCD -Floating - 48 Vanes

CP3581-1564GA

€522.05 €642.12
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 332mm
Thickness 32.0mm
Mounting P.C.D 214.0mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 232.8mm
Inside Flange Diameter 188.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 47.0mm
No. of Vanes 48
Air Gap 19.5mm
View full details

332mm x 32.0mm Brake Disc Dimensions

Outside Diameter 332mm
Thickness 32.0mm
Mounting P.C.D 214.0mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 232.8mm
Inside Flange Diameter 188.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 47.0mm
No. of Vanes 48
Air Gap 19.5mm
Face Types Available GA - 'J' Hook Design
D - Cross Drilled
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
GA - 'J' Hook Design / Right-Hand Side CP3581-1564GA
GA - 'J' Hook Design / Left-Hand Side CP3581-1565GA
D - Cross Drilled / Right-Hand Side CP3581-1564D
D - Cross Drilled / Left-Hand Side CP3581-1565D

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
