• Ø355mm x 32.0mm Ventilated Brake Disc - 12 x 237.5mm PCD - Floating - Race and Rally
1 2

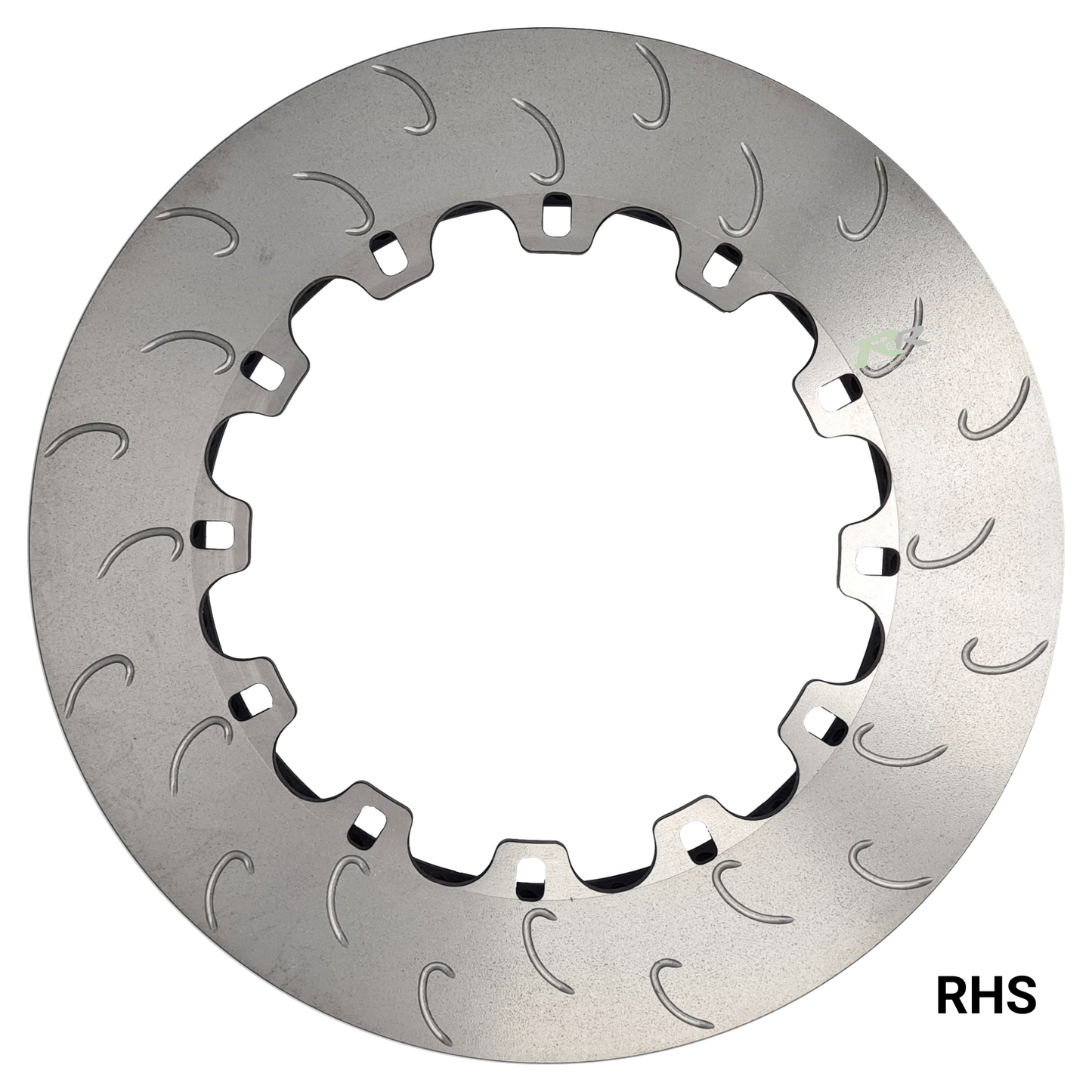

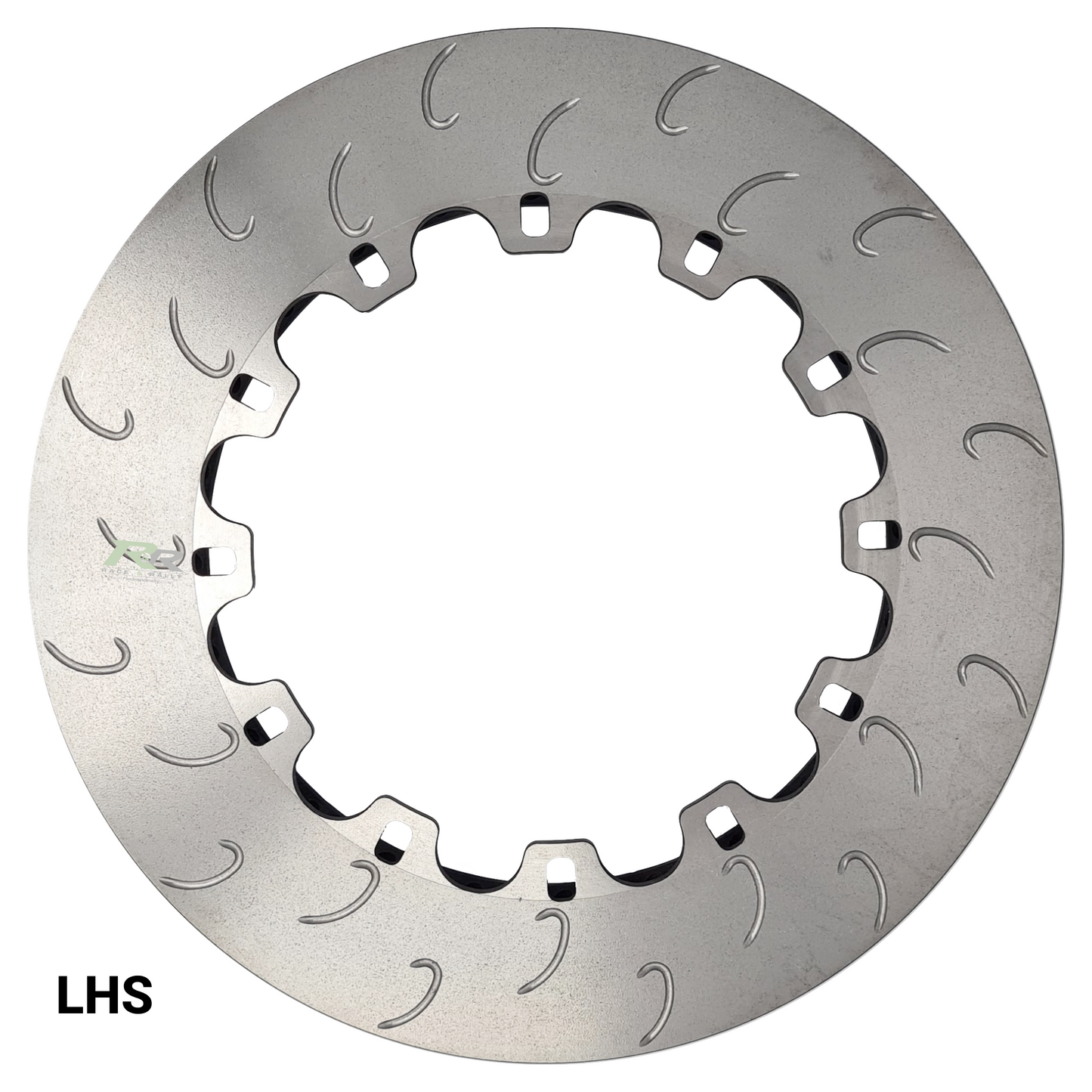

Ø355mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Floating

Ø355mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Floating

CP5772-1150CG8

€553.78 €681.15
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 355mm
Thickness 32.0mm
Mounting P.C.D 228.6mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 244.6mm
Inside Flange Diameter 202.8mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 54.0mm
No. of Vanes 72
Air Gap 19.5mm
View full details

355mm x 32.0mm Brake Disc Dimensions

Outside Diameter 355mm
Thickness 32.0mm
Mounting P.C.D 228.6mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 244.6mm
Inside Flange Diameter 202.8mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 54.0mm
No. of Vanes 72
Air Gap 19.5mm
Face Types Available CG8 - Curved Grooves (Backward Facing)
G4 - Grooved (Straight Forward)
GA - 'J' Hook Design
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP5772-1150CG8
CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP5772-1151CG8
G4 - Grooved (Straight Forward) / Left-Hand Side CP5772-1151G4
GA - 'J' Hook Design / Right-Hand Side CP5772-1150GA
GA - 'J' Hook Design / Left-Hand Side CP5772-1151GA
G4 - Grooved (Straight Forward) / Right-Hand Side CP5772-1150G4

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
