• Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 215.9mm PCD - Bolted - D61 - Race and Rally
1 1

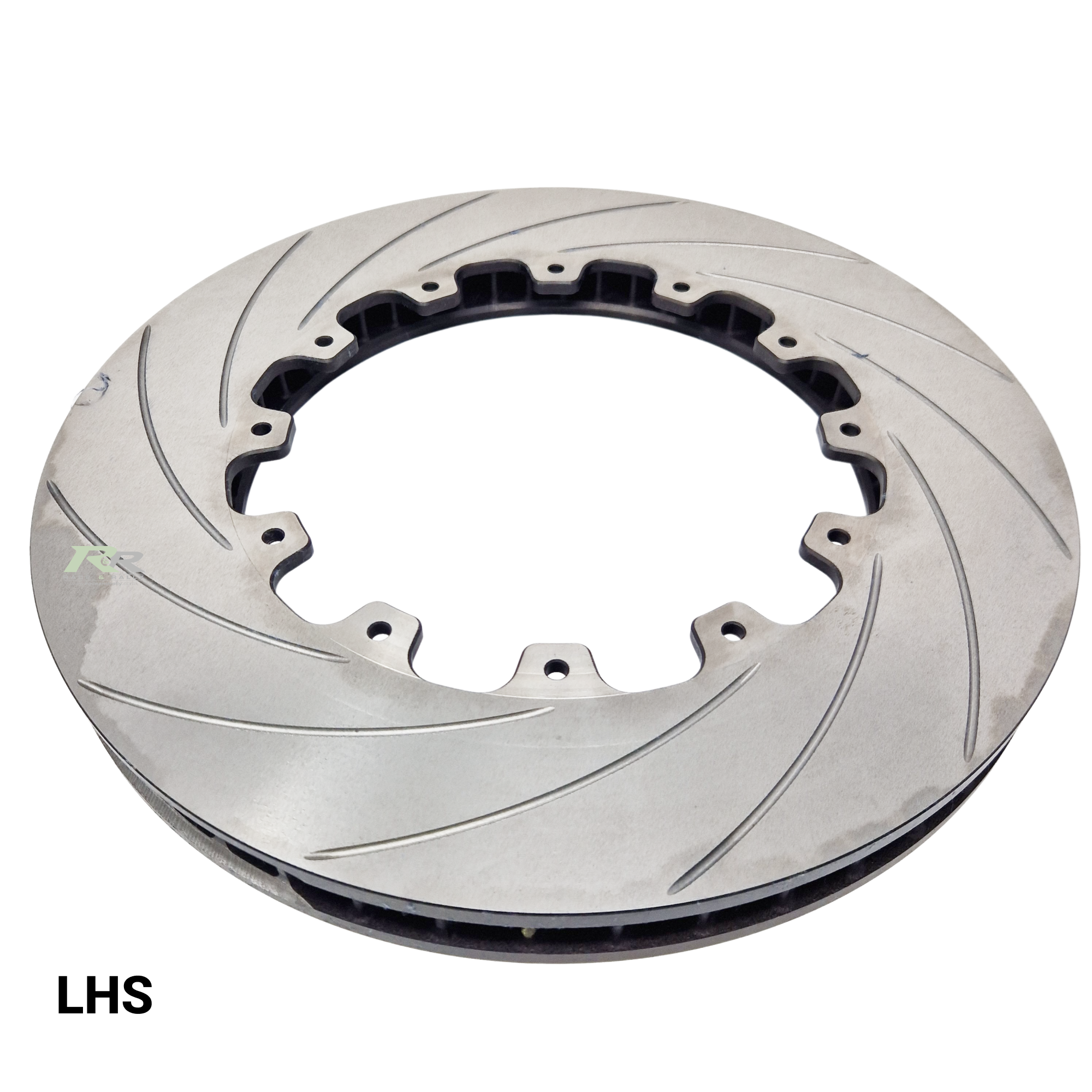

Ø362mm x 32mm Ventilated Brake Disc - 12 x 215.9mm PCD - CG12 Face - LHS

Ø362mm x 32mm Ventilated Brake Disc - 12 x 215.9mm PCD - CG12 Face - LHS

CP4542-143CG12

€313.33 €385.40
Sale Sold out
▶ Brake Disc Dimensions
'A' - Outside Diameter 362mm
'B' - Thickness 32.0mm
'M' - Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 238.0mm
'D' - Inside Flange Diameter 195.0mm
'H' - Mounting Flange Thickness 6.42mm
Max Pad Depth 61.0mm
No. of Vanes 48
Air Gap 17.5mm

Out of stock, contact for leadtime

View full details

362mm x 32.0mm Brake Disc Dimensions

'A' - Outside Diameter 362mm
'B' - Thickness 32.0mm
'M' - Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 238.0mm
'H' - Inside Flange Diameter 195.0mm
Mounting Flange Thickness 6.42mm
Max Pad Depth 61.0mm
No. of Vanes 48
Air Gap 17.5mm
Face Types Available Default Title
Disc Handing

Brand AP Racing
Option SKU Barcode
Default Title CP4542-143CG12


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
