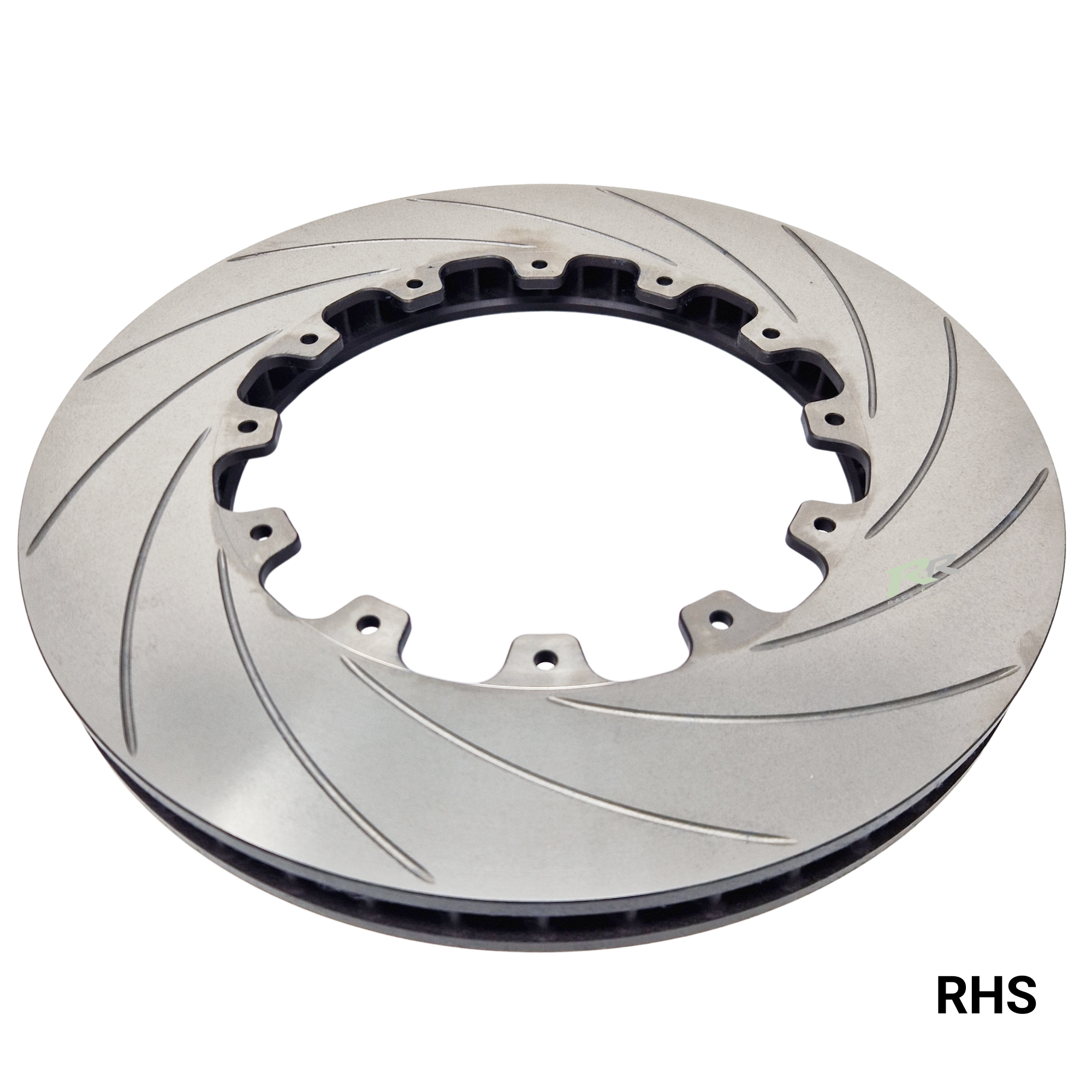

Ø362mm x 32mm Ventilated Brake Disc - 12 x 215.9mm PCD - CG12 Face - RHS

Ø362mm x 32mm Ventilated Brake Disc - 12 x 215.9mm PCD - CG12 Face - RHS

SKU:CP4542-142CG12

Regular price €313.33 €385.40
Sale Sold out
Brake Disc Dimensions
Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 238.0mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 6.42mm
Max Pad Depth 61.0mm
No. of Vanes 48
Air Gap 17.5mm
View full details

362mm x 32.0mm Brake Disc Dimensions

Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 238.0mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 6.42mm
Max Pad Depth 61.0mm
No. of Vanes 48
Air Gap 17.5mm
Face Types Available Default Title
Disc Handing

Brand AP Racing
Option SKU Barcode
Default Title CP4542-142CG12

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
